Emtek 16B2 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$381.00
$304.80
Emtek Emtek 16B2 Multi Point Lock Trim (Door Config #6) - Brass Plates, Modern Style (2" x 10"), Non-Keyed Passage EMTEK-16B2

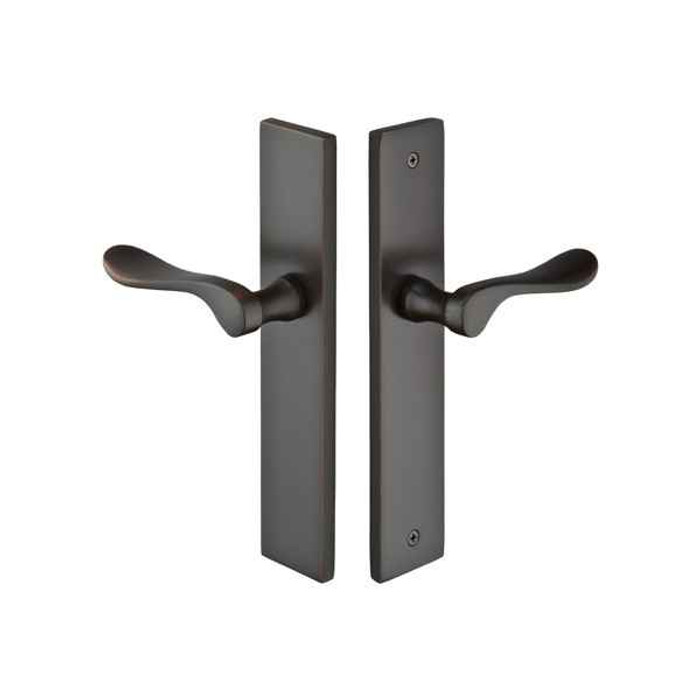

Emtek 16B2 Multi Point Lock Trim (Door Config #6) - Brass Plates, Modern Style (2" x 10"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 16B2-US19
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 16B2 Multi Point Lock Trim (Door Config #6) - Brass Plates, Modern Style (2" x 10"), Non-Keyed Passage

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Modern
Theme:
Contemporary
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
16B2
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 16B2-US19 – Frequently Asked Questions

1) Does the Emtek 16B2 multi point trim include the multi point mortise lock body?
No. The 16B2 is trim only: you get the two 2 x 10 inch brass plates and the handles. The multi point mortise lock box itself has to come from the door manufacturer or be ordered separately, so if your patio door does not already have a working multi point gearbox in it, this set alone will not lock the door.
2) Will Emtek 16B2 trim fit a Milgard or Pella swinging patio door?
Those are the reference door manufacturers Emtek lists for this trim, and it is built for Door Configuration #6 with a 3-5/8 inch center-to-center between the handle and the cylinder hole, cylinder below the handle. Match your door's existing hole pattern to that 3-5/8 inch CTC and config #6 layout before you order, since Emtek uses separate configuration numbers for other hole spacings.
3) Can I key this Emtek multi point trim to match my other exterior doors?
Not this one. The 16B2 is a non-keyed passage set, so there is no cylinder in it and nothing to key. It gives you lever operation on both sides with no locking from the trim. If you need the door to lock and key alike with the rest of the house, you want a keyed Emtek multi point trim in Door Config #6 instead, which takes an American style cylinder positioned below the handle.
4) What door thickness and backset does the Emtek 16B2 trim work with?
It covers doors from 1-3/8 to 1-3/4 inches thick, with an adjustable backset of 2-3/8 or 2-3/4 inches and a 2-1/8 inch cross bore. That spans the standard 1-3/4 inch exterior door and thinner slabs both. There is a door thickness field on the order so you can state the actual slab you are working with.
5) Do I have to specify handing when ordering Emtek 16B2 multi point trim?
Yes, handing is required, right hand or left hand. Multi point trim is not reversible in the field, so stand outside the door: if the hinges are on your right it is right hand. You also have to pick a lever style, since the plates ship without a lever assigned.
6) Which levers can I put on the Emtek 16B2 brass plates?
Any Emtek brass lever works with it, and the selection runs from the modern L-Square, T-Bar and R-Bar bars in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, through cast styles like Athena, Helios, Hermes, Luzern, Poseidon, Stuttgart, Argos, Aston, Basel, Geneva, Mercury and Triton, to traditional Cortina, Milano, Merrimack, Turino, Coventry, Elan, Ribbon and Reed, Rope, Rustic, Santa Fe, Wembley, Arts and Crafts and Hammered. The lever is a required selection.
7) Will the lever on this Emtek patio door trim sag over time?
Emtek builds a Spring Assist function into the multi point trim, which returns the lever to horizontal after each use and is there specifically to stop the droop you get on older handle sets. That matters on a patio door that gets used daily.
8) What finishes does the Emtek 16B2 come in, and will they match my other Emtek hardware?
Seven finishes: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL) and Satin Brass (US4). All are on solid brass plates, so they follow the same US finish codes as the rest of Emtek's brass collection. Unlacquered Brass is a living finish and will patina rather than hold its shine.
9) Is this Emtek trim suitable for a commercial building entrance?
Emtek lists the 16B2 as residential hardware, intended for swinging patio doors in homes. For a commercial opening with code and grade requirements, this is the wrong direction; specify commercial grade mortise or cylindrical hardware instead.
10) Is the latch faceplate on this trim round or square corner?
Both are covered, round corner or square corner latch faceplate, so it can drop into an existing mortise pocket either way without recutting the edge of the door.
11) Is the Emtek 16B2 an electronic or smart lock?
No, it is purely mechanical trim. Nothing electrified, no motor, no keypad, and no cylinder either since it is a passage function. Lever in, lever out.
