Emtek Emtek 12B2 Multi Point Lock Trim (Door Config #2) - Brass Plates, Modern Style (2" x 10"), Non-Keyed Passage EMTEK-12B2

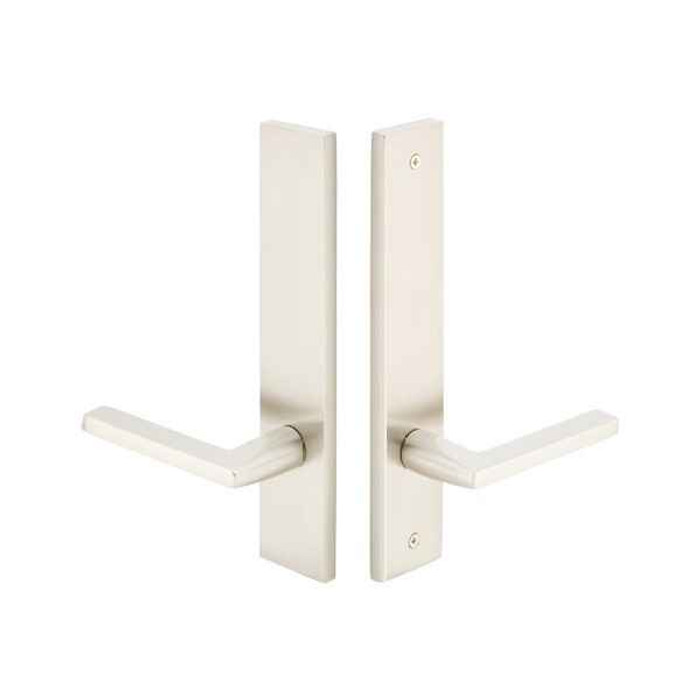

Emtek 12B2 Multi Point Lock Trim (Door Config #2) - Brass Plates, Modern Style (2" x 10"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 12B2-US19
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 12B2 Multi Point Lock Trim (Door Config #2) - Brass Plates, Modern Style (2" x 10"), Non-Keyed Passage

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Modern
Theme:
Contemporary
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
12B2
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 12B2-US19 – Frequently Asked Questions

1) Which patio door brands is the Emtek Door Configuration #2 trim meant to match?
Configuration #2 covers doors referenced to BiltBest, G-U, Hurd (Energy Saver), and Andersen multi point systems. The determining dimension is the 3-5/8 inch center-to-center between the handle and the cylinder hole, with the cylinder position above the handle. Measure your door's existing prep against that before ordering.
2) Will the Emtek 12B2 passage trim lock my patio door?
It won't. The 12B2 is a non-keyed passage function, so the levers just operate the latch and there is no cylinder or thumbturn in the trim. If you need to key the door, you need a keyed version of the configuration #2 trim instead.
3) Do I have to specify handing on Emtek multi point lock trim?
Yes, handing is required. You pick Right Hand (RH) or Left Hand (LH), determined from the outside of the door by the side the hinges sit on. Getting it wrong puts the lever throw and plate orientation backwards on a patio door.
4) What backset and bore does this Emtek patio trim need in the door?
Backset is adjustable at 2-3/8 or 2-3/4 inches, the two standard residential backsets, and the cross bore is 2-1/8 inches. Latch faceplate is available round corner or square corner to match the existing mortise in the edge of the door.
5) Do the levers come with the Emtek 12B2 trim or are they ordered separately?
Lever style is a required selection made with the trim, so the set ships with handles on it. Any Emtek brass lever works, and the choices run from modern L-Square, T-Bar and R-Bar (faceted, hammered, knurled, Tribeca, straight knurled, white marble) through Athena, Helios, Poseidon, Geneva, Milano, Coventry, Rope, Rustic, Santa Fe and Hammered.
6) How much stile do I need for the 2 by 10 inch Emtek modern plate?
The plate measures 2 by 10 inches, so the door stile has to be at least 2 inches wide flat face to take it, plus clearance to any glass stop. On narrow glass-front patio stiles, check that width before committing.
7) If I later want to key this Emtek patio door, what cylinder type does the configuration take?
Configuration #2 trim is built around an American-style cylinder positioned above the handle. The 12B2 itself is the passage version with no cylinder, so keying means moving to the keyed trim in the same configuration rather than adding a cylinder to this one.
8) What finishes does the Emtek 12B2 modern multi point trim come in?
Seven: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL), and Satin Brass (US4). Unlacquered brass will patina with handling, the others hold their appearance.
9) Will these Emtek handles sag over time on a heavy patio door?
Each multi point trim now ships with a spring assist built in. It returns the lever to the neutral horizontal position, which is what stops the drooping handle you get on long-travel patio hardware.
10) Is this Emtek brass trim suitable for a commercial entrance?
It's a residential product. The 12B2 is solid brass trim for swinging patio doors in homes, with a contemporary 2 by 10 inch plate. For a commercial opening you want a graded commercial lockset rather than multi point patio trim.
