Emtek Emtek 13B2 Multi Point Lock Trim (Door Config #3) - Brass Plates, Modern Style (2" x 10"), Non-Keyed Passage EMTEK-13B2

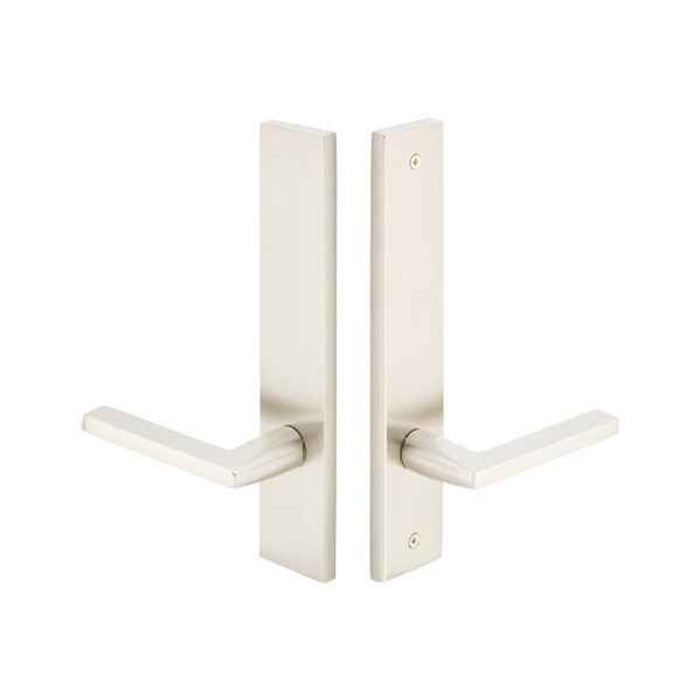

Emtek 13B2 Multi Point Lock Trim (Door Config #3) - Brass Plates, Modern Style (2" x 10"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 13B2-US19
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 13B2 Multi Point Lock Trim (Door Config #3) - Brass Plates, Modern Style (2" x 10"), Non-Keyed Passage

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Modern
Theme:
Contemporary
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
13B2
(CTC) Center-to-Center:
4-1/8"
Product Function:
Non-Keyed Passage
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 13B2-US19 – Frequently Asked Questions

1) Does the Emtek 13B2 multi point trim include the mortise lock body?
No. The 13B2 is trim only: plates and handles. The multi point mortise lock box is a separate purchase, so you need the lock body already in the door or ordered alongside it.
2) Will Emtek 13B2 trim fit my existing multi point door prep?
It is built for Door Configuration #3, with a 4-1/8 inch handle-to-cylinder center-to-center and the cylinder hole above the handle. Backset is adjustable to 2-3/8 or 2-3/4 inches and the cross bore is 2-1/8 inches. If your existing multi point lock uses a different spacing or puts the cylinder below the handle, this plate will not line up.
3) Will this Emtek trim work on an Andersen patio door?
Andersen is the referenced door manufacturer for this trim, in Door Configuration #3. Confirm your Andersen unit uses the config #3 layout, cylinder above the handle with 4-1/8 inch center-to-center, since Andersen has used more than one multi point arrangement over the years.
4) Is the 13B2 keyed, or does it lock at all?
Non-keyed passage. The levers operate the multi point latching but there is no cylinder and no locking function, and it is not electronic. If you need to key the opening, you want a keyed multi point trim configuration instead.
5) Do I have to specify handing on Emtek multi point trim?
Yes, handing is required: right hand or left hand. Multi point trim is not field-reversible the way a bored lever set is, so determine the swing before ordering. Lever style is also a required selection.
6) How big are the escutcheon plates on the Emtek 13B2?
The plates measure 2 x 10 inches in the Modern style, a squared contemporary profile in solid brass. That footprint matters on narrow patio door stiles, so check you have at least 2 inches of flat stile face.
7) Which finishes does the Emtek 13B2 brass multi point trim come in?
Seven: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL), and Satin Brass (US4). Because it is the brass collection, it matches Emtek brass levers and brass door hardware elsewhere in the house rather than the bronze or stainless lines.
8) Do the levers on this Emtek multi point trim sag over time?
Each multi point trim now ships with Spring Assist, which returns the lever to neutral and is there specifically to stop handles drooping. That is the common complaint on long-lever patio door trim, and it is addressed in the current build.
9) Can I choose the lever design on the Emtek 13B2, and which ones are available?
Lever style is a required choice from the brass lever range, 51 options in all, including the L-Square, T-Bar and R-Bar families in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, plus named levers such as Athena, Helios, Hermes, Luzern, Poseidon, Stuttgart, Milano, Turino, Coventry, Rope, Rustic, Santa Fe and Hammered. Any brass lever can be paired with these plates, so you can match the interior doors.
10) Is this Emtek trim suitable for a commercial or multi-family entrance?
It is classified residential. For swinging patio doors in a home it is the right product; for a commercial entrance where a graded, code-rated lock is specified, this passage trim is not the part to spec.
11) What latch faceplate corner style comes with the 13B2?
Round or square corner faceplate, so it can be dropped into an existing mortise pocket either way. Match whatever is already routed in the door edge to avoid patching.
