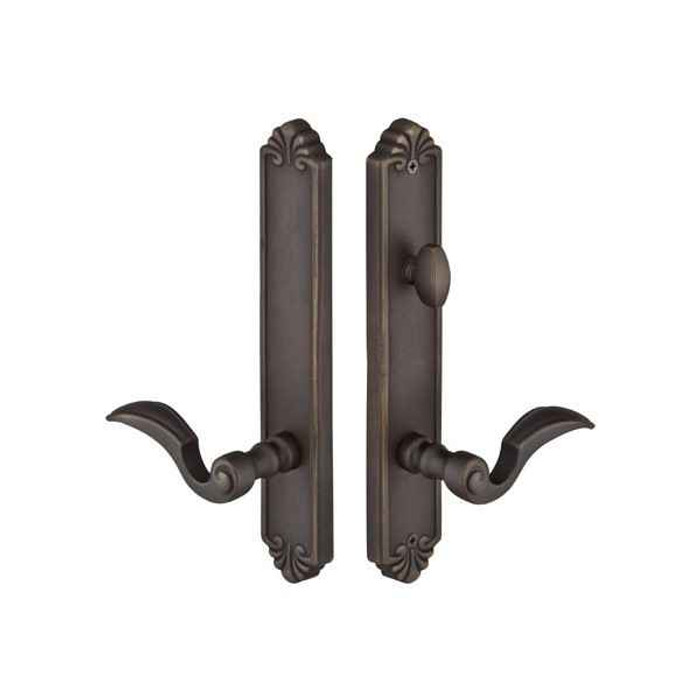

Emtek Emtek 1243 Multi Point Lock Trim (Door Config #2) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed American Style Thumbturn Inside EMTEK-1243

Emtek 1243 Multi Point Lock Trim (Door Config #2) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1243-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #2
  • Plate Size: 2" x 10.5"
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1243 Multi Point Lock Trim (Door Config #2) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1243
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2" x 10-1/2"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1243-MB – Frequently Asked Questions

1) Does the Emtek 1243 multi point trim include the multi point mortise lock body?
No. The 1243 is trim only: plates and handles. The multi point mortise lock box is a separate purchase, so you need the existing lock body in the door or a new one to go with it.
2) What does Door Configuration #2 mean on Emtek multi point trim, and how do I know my door needs it?
Configuration refers to the arrangement of the plate cutouts relative to the lock body. The 1243 is built for Configuration #2 with the cylinder hole above the handle and a 3-5/8 inch center-to-center between handle and cylinder position. Measure your existing plate from the handle spindle to the cylinder hole: if it is not 3-5/8 inches with the cylinder above the lever, a different configuration is the correct trim.
3) Which patio door brands does this Emtek Tuscany multi point trim reference for fit?
Emtek lists BiltBest, G-U, Hurd (Energy Saver) and Andersen as the reference door manufacturers for this Configuration #2 trim. Those are swinging patio doors running multi point mortise locks that match the 3-5/8 inch center-to-center with the cylinder above the handle.
4) Is there a key cylinder in the Emtek 1243 trim set?
No, the 1243 is the non-keyed version. Inside you get an American style thumbturn, and there is no cylinder supplied. The plate is prepped for an American cylinder above the handle, so if you want key access from outside you either supply the cylinder for your lock body or order the keyed version of this trim instead.
5) What do I have to specify when ordering the Emtek 1243 Tuscany trim?
Four things. Finish, either Flat Black Bronze (FB) or Medium Bronze (MB). Lever style from Medici (MD), Napoli (NA), Octagon (OCL) or Padua (PD). Handing, right or left. And your door thickness, which is an open text entry rather than a fixed list.
6) Does handing matter on the Emtek 1243 trim, and how do I determine it?
Yes, handing is a required selection, right hand (RH) or left hand (LH). Stand outside the door: if the hinges are on your right it is right hand, on your left it is left hand. Getting it wrong puts the thumbturn and lever throw the wrong way for the lock body.
7) Will the levers on this Emtek trim sag over time on a heavy patio door?
Emtek now builds the Spring Assist function into its multi point lock trim, which returns the lever to neutral and is there specifically to stop handles drooping. That matters on a swinging patio door where the lever gets worked hard.
8) Can I mix a different Emtek lever with the 1243 bronze plates?
Yes, within the bronze line. The 1243 plates can be ordered with any Lost Wax Cast Bronze lever, meaning any Tuscany Bronze lever. The four offered on the trim are Medici, Napoli, Octagon and Padua.
9) How big are the plates on the Emtek 1243, and will they cover my old trim?
The Tuscany plates measure 2 x 10-1/2 inches. If the trim you are pulling off is wider or longer than that, the new plates will not hide the old screw holes or finish line in the door, so check the footprint of what is on the door now.
10) Is this Emtek multi point trim suitable for a commercial entry or a hotel door?
It is classified residential hardware, intended for swinging patio doors in a home. For a commercial opening you want hardware graded and specified for that use rather than a residential bronze patio trim.
11) Is the Emtek Tuscany multi point trim solid bronze or a plated finish?
Solid bronze, lost wax cast. Both the plates and the matching Tuscany levers are cast bronze rather than plated zinc or brass, which is why the Flat Black Bronze and Medium Bronze finishes develop a living patina with handling.
