Emtek Emtek 1343 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed American Style Thumbturn Inside EMTEK-1343

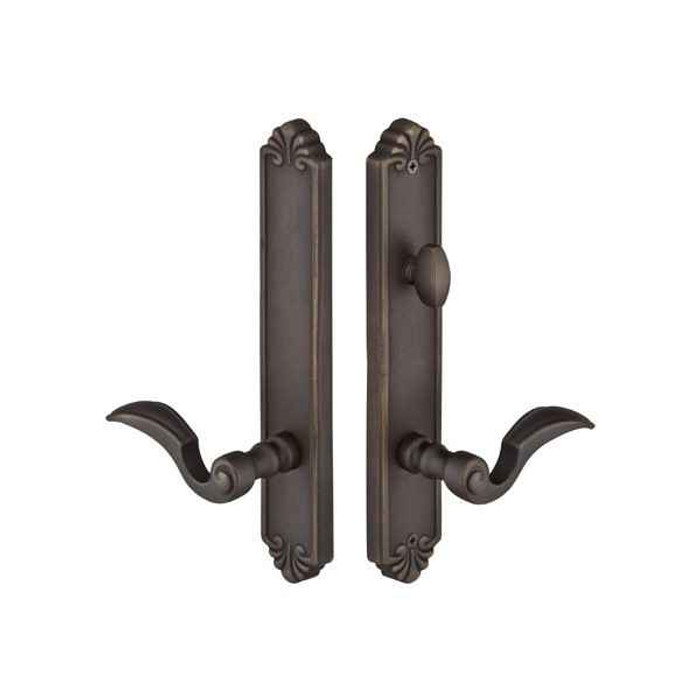

Emtek 1343 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1343-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #3
  • Plate Size: 2" x 10.5"
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1343 Multi Point Lock Trim (Door Config #3) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1343
(CTC) Center-to-Center:
4-1/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2" x 10-1/2"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1343-MB – Frequently Asked Questions

1) Will the Emtek 1343 trim line up with my multi point lock's handle and cylinder spacing?
It matches Door Configuration #3 with a 4-1/8 inch center-to-center between the handle and the cylinder hole, and the cylinder sits above the handle. Measure your existing prep center to center: if it isn't 4-1/8 inches, or the cylinder is below the handle, this plate won't drop on and you need the Emtek configuration that matches your lock.
2) Is the Emtek 1343 keyed, and how does the door lock from the inside?
There's no key cylinder supplied with the 1343 and no keyed function on the exterior plate. Inside, it's an American style thumbturn: you throw and retract the multi point lock's points by hand. The cylinder prep is American classification, so if you later want it keyed you'd be looking at an American-style mortise cylinder in that above-handle position.
3) What do I have to specify when ordering Emtek 1343 Tuscany multi point trim?
Four things. Finish, either Flat Black Bronze (FB) or Medium Bronze (MB). Lever style, choosing from Medici, Napoli, Octagon or Padua. Handing, right or left. And your door thickness, which is a write-in rather than a pick list. Handing and thickness are the two people get wrong, so pull them off the actual door before you order.
4) Will Emtek 1343 trim work on an Andersen swinging patio door?
Andersen is the reference door manufacturer for this trim, and it's built for swinging patio doors. The deciding detail is still the lock prep: Configuration #3 with 4-1/8 inch center-to-center spacing and the cylinder above the handle. Confirm your Andersen unit's multi point lock matches that layout, since Andersen has used more than one prep.
5) Can I put a different Emtek lever on the 1343 multi point trim?
Any Lost Wax Cast Bronze lever from the Tuscany bronze range works with these plates. The four offered directly are Medici, Napoli, Octagon and Padua. Because the plates are lost wax cast bronze, staying inside the Tuscany bronze collection is what keeps the lever and plate finish matched.
6) Do the levers on this Emtek bronze patio door trim sag over time?
Spring assist is built into the 1343 trim. The lever returns to horizontal on its own instead of drooping, which is the usual complaint on tall patio door handles that get pulled on daily. Every Emtek multi point trim now ships with it.
7) Is the Emtek 1343 Tuscany trim rated for a commercial entrance?
It's residential hardware. For a swinging patio or French door on a house or a condo unit it's the right category; for a high traffic commercial entry, storefront, or anything on a monitored egress path, this isn't the product line to spec.
8) Can I use one Emtek 1343 trim set on a pair of French doors?
One 1343 set dresses one active leaf. A pair of swinging patio doors with a multi point lock in each leaf needs a set per operating door, and each is handed separately, so a left hand and a right hand rather than two of the same. An inactive leaf with flush bolts needs no trim at all.
9) Does the Emtek 1343 handle set have any electronic or keypad option?
Mechanical only. The 1343 is a thumbturn-inside trim with no electronics, no keypad and no wiring, so there's nothing to power and no door prep for cable. If you want electronic access on a multi point patio door, look at an Emtek electronic trim configuration instead.
10) How do I match Emtek 1343 trim to other bronze hardware already in the house?
The plates are solid lost wax cast bronze in the Tuscany Bronze collection, finished either Flat Black Bronze or Medium Bronze. Cast bronze living finishes shift with handling, so ordering the same finish code across the patio doors and the entry doors is what keeps a run of openings looking alike. The plate footprint is 2 x 10-1/2 inches.
