Emtek 1643 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

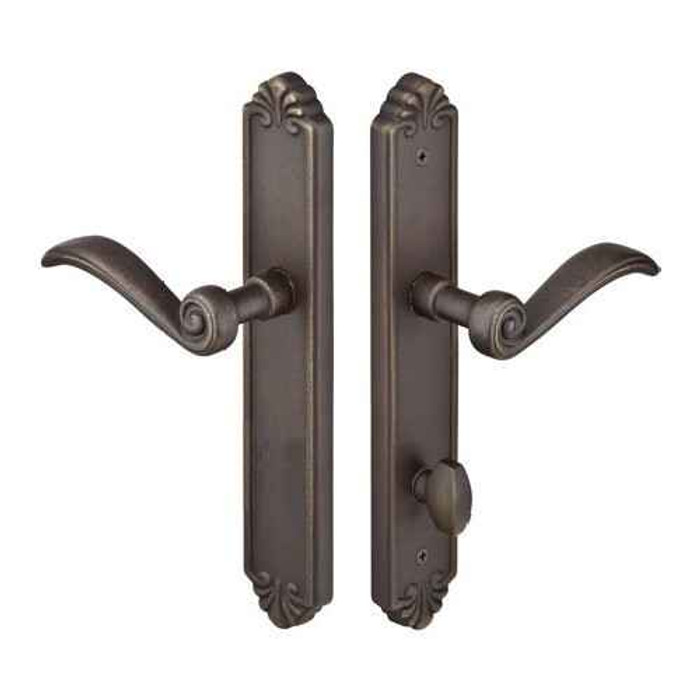

Emtek Emtek 1643 Multi Point Lock Trim (Door Config #6) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed American Style Thumbturn Inside EMTEK-1643

Emtek 1643 Multi Point Lock Trim (Door Config #6) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1643-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #6
  • Plate Size: 2" x 10.5"
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1643 Multi Point Lock Trim (Door Config #6) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1643
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2" x 10-1/2"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1643-MB – Frequently Asked Questions

1) Does the Emtek 1643 multi point trim include the multi point lock itself?
No. The 1643 is trim only, plates and handles. The multi point mortise lock box is not included, so you'll need the gearbox already in the door or ordered separately.
2) What does Door Configuration #6 mean on the Emtek 1643 trim?
Configuration #6 describes the layout of the trim plate: non-keyed outside, American style cylinder position below the handle, and a thumbturn on the inside. The multi point gearbox in your door has to match that same configuration, or the holes in the 2 x 10-1/2 inch plate won't line up with the prep.
3) What is the handle center-to-center on the Emtek 1643 Tuscany trim?
3-5/8 inches center to center. That spacing has to match the multi point gearbox spindle and cylinder spacing in the door, so check it against your existing prep before ordering.
4) Is the Emtek 1643 keyed, and can it lock from outside?
It is non-keyed. There's no cylinder in this version, and the locking is done from the inside thumbturn. If you need key access from the exterior, choose a keyed configuration instead of the 1643.
5) What do I have to specify when ordering the Emtek 1643 multi point trim?
Four things: finish (Flat Black Bronze or Medium Bronze), lever style (Medici, Napoli, Octagon, or Padua), handing (right or left), and your door thickness. Handing and lever style are both required selections.
6) Will the Emtek 1643 fit a Milgard or Pella swinging patio door?
Milgard and Pella are the referenced door manufacturers for this trim. It's swinging patio door hardware built around Configuration #6 with 3-5/8 inch center-to-center spacing, so match those against the multi point lock already in the door before you commit.
7) Will the Emtek 1643 match other Tuscany bronze hardware in the house?
It's part of the Tuscany Bronze collection in lost wax cast bronze, and it takes any Tuscany bronze lever, so it keeps a patio door consistent with the rest of the lost wax cast bronze trim. Offered in Flat Black Bronze and Medium Bronze.
8) Do the levers on the Emtek 1643 sag over time?
Each of these multi point trims includes a spring assist that returns the lever to neutral, which is what keeps the handle from drooping on a heavy patio door. Cast bronze construction throughout.
9) Is the Emtek 1643 trim rated for commercial use?
It's a residential product, intended for swinging patio doors in homes. For a high traffic commercial entrance, look to a commercial grade lockset rather than this bronze patio trim.
10) Is the Emtek 1643 an electronic or smart lock trim?
No, it's purely mechanical. No electronics, no wiring, no power. The inside thumbturn throws the multi point lock.
