Emtek 1543 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20

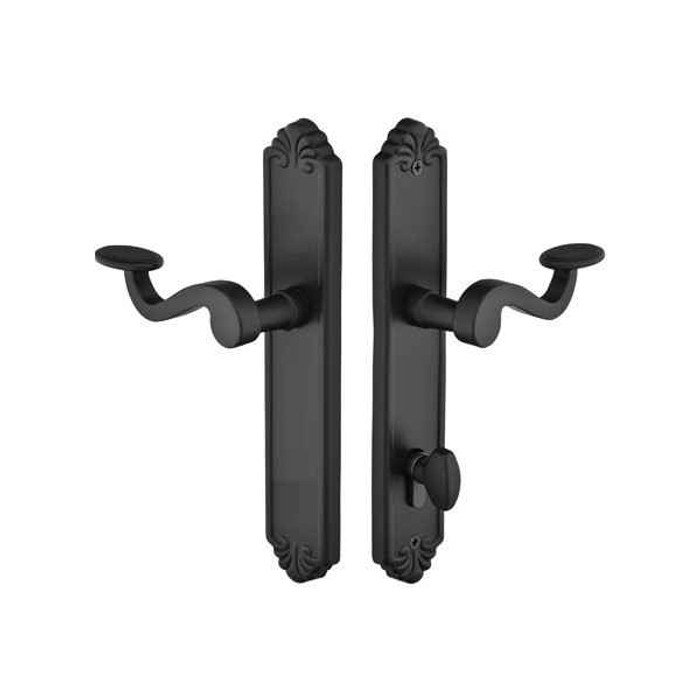

Emtek Emtek 1543 Multi Point Lock Trim (Door Config #5) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed American Style Thumbturn Inside EMTEK-1543

Emtek 1543 Multi Point Lock Trim (Door Config #5) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1543-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #5
  • Plate Size: 2" x 10.5"
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1543 Multi Point Lock Trim (Door Config #5) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Below Handle
Door Configuration:
#5
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1543
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2" x 10-1/2"
Cylinder Classification:
Euro Profile
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1543-MB – Frequently Asked Questions

1) Does the Emtek 1543 multi point trim include the multi point lock itself?
No. The Emtek 1543 is trim only: plates and handles. The multi point mortise lock box is not included, so you need a working lock body already in the door or ordered separately. It is built as replacement or dress-up hardware for an existing swinging patio door multi point system.
2) What door configuration does the Emtek 1543 trim fit, and how do I know my door matches?
It is cut for Door Configuration #5, with a 3-5/8 inch handle-to-cylinder center-to-center spacing and the cylinder hole below the handle, sized for a Euro profile cylinder. Measure from the center of the existing handle spindle to the center of the key cylinder on your door. If that is 3-5/8 inches with the cylinder underneath, config #5 is your trim.
3) Is the Emtek 1543 keyed, and how does the inside operate?
It is the non-keyed version: no key cylinder on the exterior plate, and a thumbturn on the interior American style plate. That makes it the right pick for a patio or sunroom door you lock from inside and do not need to key from outside. If you need exterior key access on a config #5 door, you want the keyed version of the Tuscany trim instead.
4) What do I have to specify when ordering the Emtek Tuscany 1543 trim?
Four things. Finish: Flat Black Bronze (FB) or Medium Bronze (MB). Lever style: Medici, Napoli, Octagon or Padua. Handing: right hand or left hand, which is required. And your door thickness, which is an optional entry but worth giving so the spindle and through-bolts suit the slab.
5) Will the Emtek 1543 plates match my other Tuscany bronze door hardware?
Yes, it is part of the Tuscany Bronze collection in lost wax cast bronze, and the plates can be ordered with any Tuscany Bronze lost wax cast lever. Finishes are Flat Black Bronze and Medium Bronze, so entry sets, passage levers and this patio trim can carry the same finish and lever across the house.
6) Does the Emtek 1543 handle sag over time like older multi point trim?
No. Emtek now builds the Spring Assist function into its multi point trim, which returns the lever to neutral and stops the handle drooping. That is the common complaint on older patio door trim and the reason a lot of these get replaced rather than repaired.
7) Do I need to know the handing before ordering this patio door trim?
Yes, handing is a required selection on the 1543, right hand or left hand. Stand outside the door facing it: if the hinges are on the right it is a right hand door. Get this wrong and the thumbturn and lever orientation will not suit the swing.
8) Is this Emtek Tuscany trim suitable for a commercial opening?
It is classified residential, intended for swinging patio doors in homes. For a multi-family or hospitality patio door seeing heavy daily traffic, a residential decorative trim is not the durability class you want on the spec.
9) Is the Emtek 1543 an electronic or smart lock trim?
No, it is purely mechanical: cast bronze plates, a lever, and an interior thumbturn. There is no keypad, motor or wiring involved.
