Emtek Emtek 1843 Multi Point Lock Trim (Door Config #8) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed American Style Thumbturn Inside EMTEK-1843

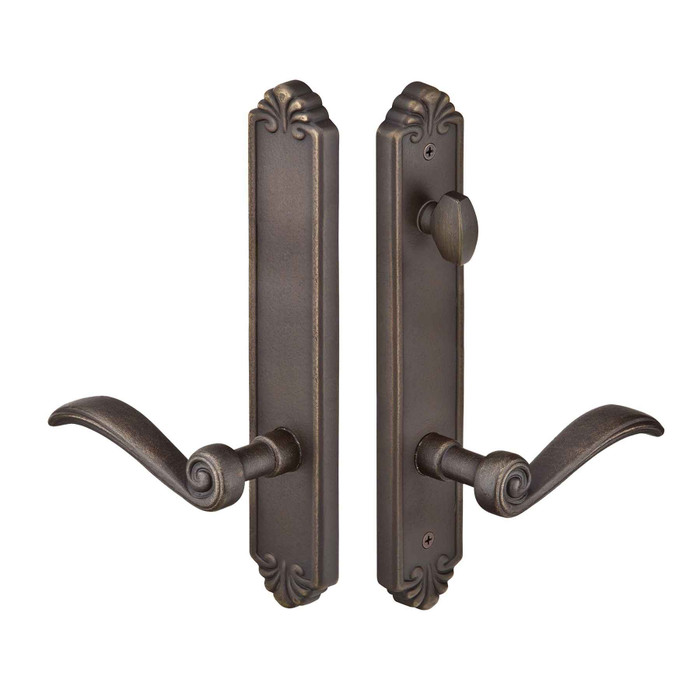

Emtek 1843 Multi Point Lock Trim (Door Config #8) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1843-MB
From the Tuscany Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #8
  • Plate Size: 2" x 10.5"
  • Material: Lost Wax Cast Bronze
  • Plate Style: Tuscany
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1843 Multi Point Lock Trim (Door Config #8) - Lost Wax Cast Bronze Plates, Tuscany Style (2" x 10.5"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Lost Wax Cast Bronze Levers (any Tuscany Bronze Levers)
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Tuscany Bronze
Cylinder Position:
Above Handle
Door Configuration:
#8
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Neuma Doors
Series:
Tuscany
Theme:
Tuscany
MAP Policy:
Yes
Product Model:
1843
(CTC) Center-to-Center:
5-1/4"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2" x 10-1/2"
Cylinder Classification:
American
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1843-MB – Frequently Asked Questions

1) Does the Emtek 1843 multi point trim include the multi point lock itself?
No. The 1843 is trim only: plates and handles. The multi point mortise lock box is a separate purchase, so you need the lock already in the door or ordered alongside it. Each set now includes Emtek's Spring Assist, which returns the lever to neutral and keeps the handle from sagging.
2) What is Door Configuration #8 on an Emtek multi point trim, and how do I know it matches my door?
Configuration #8 describes where the cylinder and thumbturn sit relative to the handle on the trim plate. On the 1843 the cylinder position is above the handle, and the inside is a non-keyed American style thumbturn. Your multi point lock box has to be prepped for that same layout with a 5-1/4 inch center-to-center between the handle and the cylinder hole. If your existing lock prep uses a different spacing or puts the cylinder below the handle, this trim will not line up.
3) Do I have to specify handing when ordering this Emtek Tuscany multi point trim?
Yes, handing is required. You pick Right Hand (RH) or Left Hand (LH) at order time, along with the lever style. There's also a door thickness field so the spindle and fasteners suit your door.
4) Can I key this Emtek multi point trim to match my other exterior doors?
Not this one. The 1843 is the non-keyed version, with a thumbturn on the inside and no cylinder supplied. If you need the door keyed from outside, order the keyed variant of the same Configuration #8 Tuscany trim instead, which takes an American style cylinder mounted above the handle.
5) Which levers can I use with the Emtek 1843 Tuscany bronze plates?
Any Emtek Lost Wax Cast Bronze lever from the Tuscany Bronze collection works with these plates. The lever choices offered with the 1843 are the Medici (MD), Napoli (NA), Octagon (OCL), and Padua (PD).
6) Is the Emtek 1843 electronic or does it work with a smart lock?
Purely mechanical. There is no electronic option on the 1843, and no motorized or keypad function, so operation is by lever and inside thumbturn only.
