Emtek Emtek 1282 Multi Point Lock Trim (Door Config #2) - Brass Plates, Concord Style (2" x 10.5"), Non-Keyed Passage EMTEK-1282

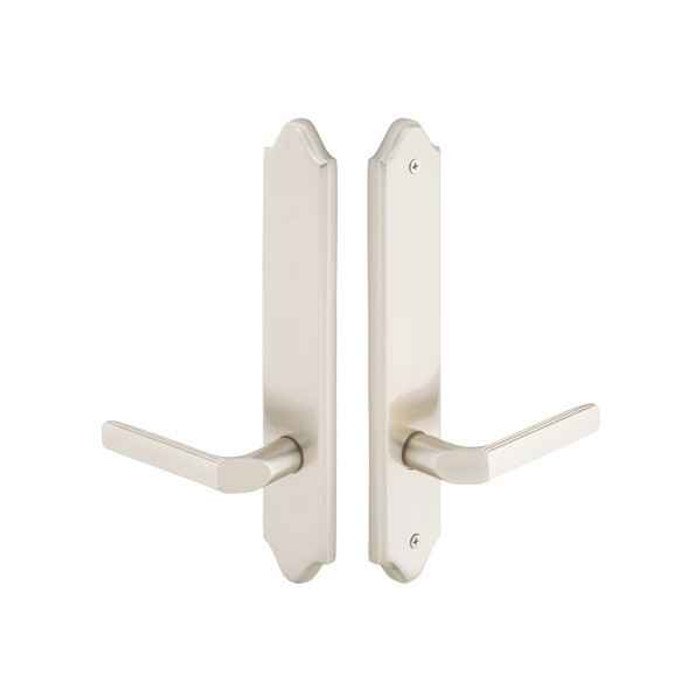

Emtek 1282 Multi Point Lock Trim (Door Config #2) - Brass Plates, Concord Style (2" x 10.5"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1282-US15
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1282 Multi Point Lock Trim (Door Config #2) - Brass Plates, Concord Style (2" x 10.5"), Non-Keyed Passage

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Concord
Theme:
American Classic
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1282
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
2" x 10-1/2"
Cylinder Classification:
American
Product Style:
Concord
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1282-US15 – Frequently Asked Questions

1) Does the Emtek 1282 multi point trim include the lock body, or just the handles and plates?
Trim only. The Emtek 1282 set gives you the brass plates and handles for a swinging patio door; the multi point mortise lock box is a separate purchase. If the existing lock body in the door is sound you can reuse it, but on a new door you will need to source the multi point mortise lock as well.
2) What is Door Configuration #2 on an Emtek multi point trim?
Emtek splits multi point trim by the arrangement of the lever and cylinder on the plate. The 1282 is Config #2: a non-keyed passage function with the cylinder position above the handle, on a 2 by 10-1/2 inch Concord plate with 3-5/8 inch center-to-center between the lever and the cylinder hole. If your existing plate has the cylinder below the lever, or a different center-to-center, this is the wrong configuration.
3) Will Emtek 1282 trim fit my patio door thickness and bore?
It covers 1-3/8 to 1-3/4 inch doors, with an adjustable 2-3/8 or 2-3/4 inch backset and a 2-1/8 inch cross bore. Those are the standard residential preps, so most swinging patio doors take it without modification. The plate itself measures 2 by 10-1/2 inches, so check your existing plate footprint or the stile width before you commit.
4) What do I have to specify when ordering Emtek 1282 trim?
Three things beyond finish. Handing is required, right hand or left hand. Lever style is required and there are over fifty choices, from the L-Square, T-Bar and R-Bar contemporary bars in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, through to traditional patterns like Cortina, Milano, Turino, Coventry, Rope, Rustic and Arts and Crafts. Door thickness is an optional text entry if yours needs to be called out. Any brass lever can be paired with these brass plates.
5) It's called non-keyed passage but has a cylinder hole above the handle. Does it lock?
The 1282 is a passage function, so the trim itself carries no key cylinder. The plate is still prepped with the cylinder opening above the handle so it matches the keyed plates in the same Concord family visually. Buyers typically use passage trim on the inactive or interior leaf of a patio door pair and the keyed version on the leaf that has to lock.
6) My patio door lever droops. Does this Emtek trim fix that?
Yes. Every Emtek multi point lock trim now ships with a Spring Assist function that returns the lever to neutral and stops the handle sagging, which is the usual complaint on older patio door trim. Swapping to this trim addresses it without touching the lock body.
7) What finishes does the Emtek 1282 Concord trim come in?
Eight: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), and French Antique (US7). Worth noting for anyone matching existing hardware: Unlacquered Brass is a living finish that will patina, while the Lifetime Polished Brass is coated to stay bright.
8) Is the Emtek 1282 trim solid brass, and is it rated for commercial traffic?
Both the plates and the substrate are brass, and Emtek classifies this trim as residential. For a high-traffic commercial entrance you would want a commercial-grade lockset rather than residential patio door trim.
9) Will my existing latch faceplate corners match?
The 1282 trim handles both, with round or square corner latch faceplates covered. Look at the faceplate already mortised into your patio door edge and order to match so you are not chiseling the pocket.
