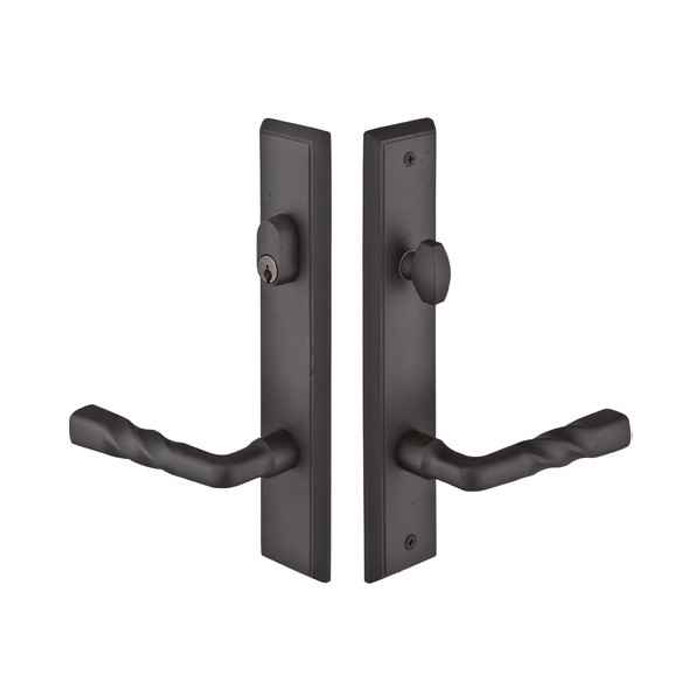

Emtek Emtek 1461 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Keyed with American Cylinder Hub ABOVE Handle EMTEK-1461

Emtek 1461 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Keyed with American Cylinder Hub ABOVE Handle

(1 review) Write a Review

Model: 1461-FB
From the Sandcast Bronze Collection
$424.00
$338.20
Selected Finish is
Selected Lever Style is
Selected Handing is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$338.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #4
  • Plate Size: 2" x 10"
  • Material: Sandcast Bronze
  • Plate Style: Rectangular
  • Keyed: Yes
  • Function: Keyed Entry
  • Cylinder Type: American Cylinder
  • Cylinder Position: Above Handle
  • Product Type: Multi Point Lock Trim



Emtek 1461 Multi Point Lock Trim (Door Config #4) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Keyed with American Cylinder Hub ABOVE Handle

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#4
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Ashland, G-U, Caradco, JELD-WEN, Jeldwen Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), Weathershield
Series:
Rectangular
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1461
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
2" x 10"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1461-FB – Frequently Asked Questions

1) Does the Emtek 1461 multi point trim include the multi point lock body, or just the handles?
Trim only. The 1461 set gives you the plates, handles, and the cylinder. The multi point mortise lock box is a separate purchase, so you need the lock body already in the door or ordered alongside it. Plan the order that way before the install date.
2) What is Door Configuration #4 on Emtek multi point trim, and how do I know my door takes it?
Configuration #4 describes where the cylinder and handle hubs sit on the plate relative to the lock body in the door. On the 1461 the cylinder hub sits ABOVE the handle, with 3-5/8 inch center-to-center between hub and handle spindle. Measure the existing prep in your door slab: if the key cylinder hole is above the handle hole and those two centers are 3-5/8 inches apart, this is the config you want. A different spacing or a cylinder below the handle is a different Emtek configuration number.
3) Which patio door brands does Emtek 1461 multi point trim fit?
Emtek lists this trim against Ashland, G-U, Caradco, JELD-WEN, JELD-WEN Custom Collection (formerly Pozzi), Marvin, PGT, Premium Collection (formerly Norco), and Weathershield multi point systems. Those are door manufacturers whose swinging patio door preps this configuration is built to land on. Confirm your slab is prepped to Configuration #4 with a 3-5/8 inch center-to-center, since one manufacturer can ship more than one prep.
4) Do I have to specify handing when ordering Emtek 1461 trim?
Yes, handing is a required selection: right hand or left hand. Multi point trim is handed because the lever and the cylinder position have to orient correctly to the swing. Stand outside the door looking in, and the side the hinges are on is the hand. Getting this wrong on a patio door means the lever sits upside down relative to the plate.
5) What keyway does the Emtek 1461 cylinder come in, and can I key it to my existing house keys?
Two keyway choices: Schlage (the standard) or Weiser WR5. The cylinder is an American cylinder in a single cylinder function, meaning key outside, thumbturn or lever inside. Ordering includes keying options, keyed different or keyed alike, and you can supply a key code so the trim arrives cut to keys you already carry. Pick the keyway that matches the rest of the house or building first, because that is what decides whether one key works everywhere.
6) What size are the plates on the Emtek 1461 rectangular multi point trim?
Rectangular plates measuring 2 x 10 inches, in sandcast bronze. That is a fairly compact escutcheon for a patio door, so if you are replacing a larger existing plate check whether the old fastener holes and prep will be covered by a 2 x 10 footprint.
7) Which finishes does Emtek offer on the 1461 sandcast bronze multi point trim?
Three sandcast bronze finishes: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). All three are available in either the Schlage or Weiser WR5 keyway. Sandcast bronze is a living finish family, so it will pick up patina with handling, which is the point of the look on a rustic or timber frame opening.
8) Do the levers come with the Emtek 1461 trim, or are they ordered separately?
Lever style is a required selection with the set, not an add-on you chase later. Ten sandcast bronze levers are offered: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma. Any sandcast bronze lever can be paired with this trim, so you can match the patio door to the passage and entry sets elsewhere in the house.
9) Do I need to give my door thickness when ordering Emtek multi point trim?
There is a door thickness field on the order for the 1461, and filling it in is the right move. Multi point patio doors run thicker and less standard than a 1-3/4 inch commercial slab, and the spindle and cylinder tailpiece have to reach through whatever you actually have. Measure the slab at the lock edge and enter that figure.
10) Is Emtek 1461 multi point trim a commercial grade product?
Emtek classes this trim as residential. It is swinging patio door hardware for houses, and for multi family or hospitality it suits owner unit and patio applications rather than a high traffic commercial entrance. A spec calling for a graded commercial entry set is not what this trim answers.
