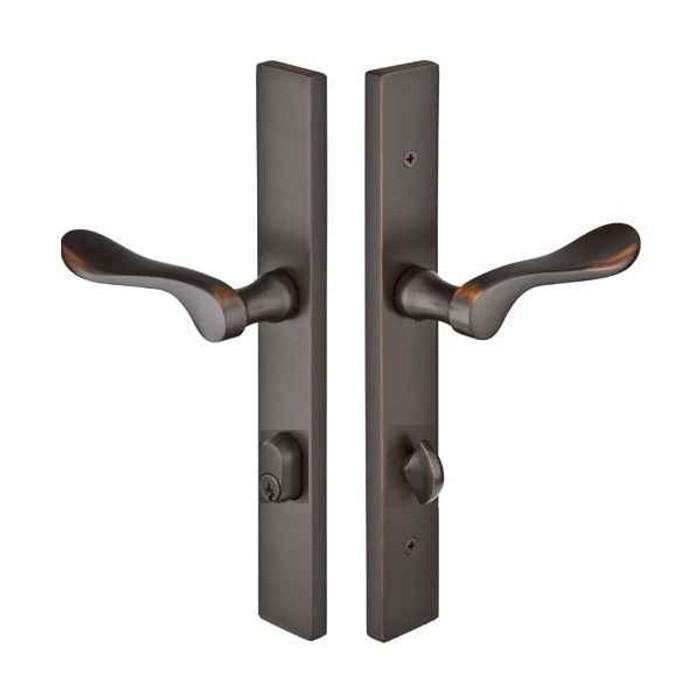

Emtek 16A1 Multi Point Lock Trim, Door Configuration #6, Brass Plates Modern Style 1.5" x 11", Keyed with American Cylinder Hub Below Handle, Oil Rubbed Bronze (US10B)

Emtek 16A1 Multi Point Lock Trim (Door Config #6) - Brass Plates, Modern Style (1-1/2" x 11"), Keyed with American Cylinder Hub Below Handle

(No reviews yet) Write a Review

Model: 16A1-US19
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 16A1 Modern Multi Point Lock Trim: Door Config #6, Brass Plates, Keyed American Cylinder Below Handle

The Emtek 16A1 is a Modern-style multi point lock trim set designed for swinging patio doors configured to Door Configuration #6. Built from solid brass with a 1-1/2" x 11" plate profile and a 3-5/8" center-to-center spacing, it pairs with Milgard and Pella door systems. The American cylinder mounts below the handle; choose Schlage (standard) or Weiser (WR5) keyway at checkout. Trim only - the multi point mortise lock box is not included.

Key Specifications

  • Door Configuration: #6
  • Plate Size: 1-1/2" x 11"
  • Center-to-Center (CTC): 3-5/8"
  • Material: Brass
  • Plate Style: Modern / Contemporary
  • Cylinder Type: American Cylinder
  • Cylinder Position: Below Handle
  • Keyed Function: Single Cylinder (Keyed Entry)
  • Compatible Door Brands: Milgard, Pella
  • Product Type: Multi Point Lock Trim (Trim Only - lock box not included)

Features

  • Available in 7 finishes: Oil Rubbed Bronze, Polished Nickel, Satin Nickel, Flat Black, Polished Chrome, Unlacquered Brass, and Satin Brass
  • Two keyway options: Schlage Keyway (standard) or Weiser WR5 Keyway
  • Can be ordered with any Emtek Brass lever
  • Set includes plates, handles, and cylinder - multi point mortise lock box sold separately
  • Spring Assist function returns the lever to neutral position and eliminates handle sag
  • Residential application

Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Modern
Theme:
Contemporary
MAP Policy:
Yes
Product Model:
16A1
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 16A1-US19 – Frequently Asked Questions

1) Does the Emtek 16A1 come with the multi point lock body, or is that a separate purchase?
Trim only. The 16A1 set is the brass plates, the handles and the American cylinder. The multi point mortise lock body, the mechanism that throws the locking points at the head and sill when you lift the lever, is bought separately. That makes this the right part when the multipoint lock inside your patio door still runs fine and it is the trim that is worn, dated, or the wrong finish. If the lock body itself has failed, you need that too, and it has to be the one your door manufacturer used.
2) How do I tell whether the Emtek 16A1 trim will line up with the multipoint lock already in my patio door?
Two things decide it. The 16A1 is cut for Emtek Door Configuration #6: the American cylinder sits below the handle, at 3-5/8 inch center to center. The plate itself is 1-1/2 x 11 inches. Take the trim off your door, or measure through the existing plate, and check both. Cylinder below the lever at 3-5/8 inch spacing and you are on Configuration #6. Different spacing, or a cylinder on the other side of the lever, and this is the wrong configuration, no matter how close the plate size is.
3) My patio door has the key cylinder above the lever. Will the Emtek 16A1 work?
No. The 16A1 is the below-handle arrangement, Door Configuration #6, with 3-5/8 inch center to center between the cylinder and the handle. A door prepped with the cylinder above the lever needs the above-handle Emtek Modern brass trim for that configuration instead. The plates are not reversible and the cylinder cannot be moved to the other end of the plate, so ordering this one for an above-handle door means sending it back.
4) Will the Emtek 16A1 multi point trim fit a Milgard or Pella swinging patio door?
Milgard and Pella are the door systems this trim is built to pair with. It still comes down to the prep in your particular door: it has to be a swinging patio door running a multipoint lock on Door Configuration #6, cylinder below the handle, 3-5/8 inch center to center. Milgard and Pella both built doors to other configurations over the years, so confirm the spacing off the door before ordering rather than off the brand name.
5) Can the Emtek 16A1 be keyed to match the Schlage keys I already use on the house?
Order the Schlage keyway version, which is the standard option, and a locksmith can key that American cylinder to your existing Schlage keys. Keying alike only works within one keyway, so the cylinder has to be on the Schlage family before it can share a key with your other doors. The alternative is the Weiser WR5 keyway, for a house already keyed on WR5 blanks. Both keyways are offered across all seven finishes, so the keying decision does not limit your finish choice.
6) Is the Emtek 16A1 keyed on both sides of the door?
Single cylinder. One keyed American cylinder, on the exterior plate below the handle, and the inside operates without a key. That is what most homeowners want on a patio door, and it is what fire and egress practice favours for a residential exit. If you specifically need a key required from the inside as well, this is not that trim.
7) Do I get to pick the lever on the Emtek 16A1, or does it come with a set handle?
Handles are part of the set, but the style is yours to choose. The 16A1 takes any Emtek brass lever, and you specify which one on the order, alongside the finish. That covers the whole Emtek brass lever range, from the squared and knurled contemporary bars that suit the Modern plate through to traditional lever shapes if you are matching older hardware elsewhere in the house. Nothing about the lever choice changes the plate, the 3-5/8 inch spacing, or the cylinder.
8) Does the Emtek 16A1 have to be ordered left hand or right hand?
Handing is a required choice on this one, along with the lever style and your door thickness. Work it out from outside the house: stand at the exterior face of the patio door and if the hinges are on your right, it is a right hand door. Get it backwards and the lever pitches the wrong way and the trim will not assemble correctly onto the lock body, so settle handing before anything else on the order.
9) Is the Emtek 16A1 multi point trim suitable for a commercial entrance or an apartment common door?
No, the 16A1 is a residential product and should be specified that way. Single family homes, condo units, and the private patio doors of a multi family unit are its place. A commercial entrance or a shared common-area door sees traffic and code requirements this trim is not classified for, so an MRO or property buyer standardizing on building entries should be looking at commercial-grade door hardware rated for that duty rather than this one.
10) What finishes does the Emtek 16A1 come in, and will they match the rest of my door hardware?
Seven finishes on solid brass: Oil Rubbed Bronze US10B, Polished Nickel Lifetime US14, Satin Nickel US15, Flat Black US19, Polished Chrome US26, Unlacquered Brass US3NL, and Satin Brass US4. The US codes are the ones to match against your existing hardware, since a US15 satin nickel from Emtek reads the same as US15 elsewhere in the house. One thing to know before you commit: Unlacquered Brass is a living finish, it darkens and patinas with handling instead of holding its as-shipped shine. If you want the brass to stay bright and even, Satin Brass is the lacquered choice.
11) The lever on our patio door droops and won't sit level. Does the Emtek 16A1 solve that?
Handle sag is the thing spring assist is there for, and it is built into the 16A1 trim. The spring carries the weight of the lever and returns it to the neutral horizontal position after each use, so it does not settle nose-down the way an unsprung lever does once the lock body's spring cartridge has tired. Worth knowing that if the droop is coming from a worn gearbox rather than the trim, new trim alone will not fix it, since the multipoint lock body is a separate part from this set.
