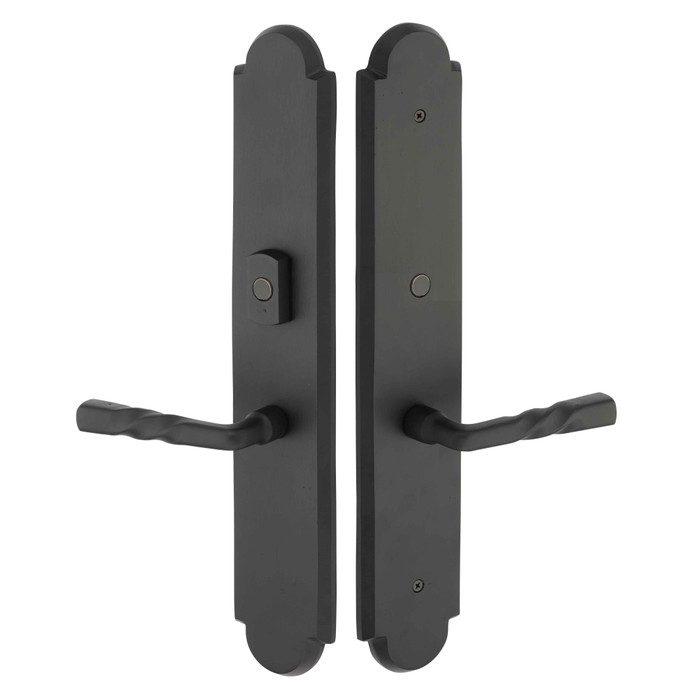

Emtek 1L1A24 Multi Point Lock Trim (Large Multi Point Entry Set) - Sandcast Bronze Plates, Arched Style (3" x 17.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)
- Can be ordered with any Sandcast Bronze Levers
- Swinging Patio Door Hardware. Set includes Plates, Handles
- Multi Point Mortise Lock Box not included. Trims Only
- Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources
Emtek LookBook
Product Specs
- Subcategory:
- Multi Point Lock Trim
- Product Group:
- Mechanical Locks
- Commercial/Residential:
- Residential
- Product Type:
- Multi Point Lock Trim
- Product Subgroup:
- Multi Point Lock Trim
- Collection:
- Sandcast Bronze
- Cylinder Position:
- Above Handle
- Door Configuration:
- Large Multi Point
- Electronic:
- No
- Keyed:
- No
- Lock Type:
- Multi Point Trim
- Ref. Door Manufacturer(s):
- G-U
- Series:
- Arched
- Theme:
- Rustic Living
- MAP Policy:
- Yes
- Product Model:
- 1L1A24
- (CTC) Center-to-Center:
- 3-5/8"
- Product Function:
- Non-Keyed Fixed Handle Outside, Operating Handle Inside
- Product Size:
- 3" x 17.5"
- Cylinder Classification:
- American
- Product Style:
- Arched
- Product Material:
- Bronze
- Product Category:
- Mechanical Locks
- Product Substrate:
- Bronze
- Department:
- Door Hardware
Emtek 1L1A24-FB – Frequently Asked Questions
1) Does the Emtek 1L1A24 multi point entry set include the multi point lock mechanism?
No. The 1L1A24 is trim only, plates and handles. The multi point mortise lock box is a separate purchase, so you need the gearbox and rods already in the door or ordered alongside it.
2) What does "non-keyed, semi-active door" mean on the Emtek 1L1A24, and is it the right one for my main entry door?
It means the outside handle is a fixed dummy pull with no cylinder and no key, while the inside handle operates the multi point lock. That is the setup for the inactive or semi-active leaf of a pair of French or patio doors, the one you normally keep shut. For the active leaf that people key into from outside, you want a keyed version instead. The 1L1A24 is listed as non-keyed.
3) What multi point lock does the Emtek arched trim line up with?
It is referenced to G-U multi point hardware, with 3-5/8 inch center-to-center spacing between the handle spindle and the cylinder hole, and the cylinder position above the handle. Match those two things against the gearbox already in your door before ordering.
4) What do I have to specify when ordering the Emtek 1L1A24 trim set?
Three things are required: finish, lever style, and handing. Finish is Flat Black Bronze, Medium Bronze, or Tumbled White Bronze. Lever choices are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma. Handing is right or left. There is also an optional door thickness field if your slab is not standard.
5) Do I need to order handing for a pair of doors, and does it matter on a non-keyed set?
Yes, handing is required even though there is no key. The inside lever operates the lock and the arched plate is oriented, so a left hand set will not work on a right hand leaf. On a pair, determine handing for each leaf separately, standing outside the door.
6) How big are the plates on the Emtek 1L1A24 arched entry set?
Each sandcast bronze plate measures 3 x 17.5 inches in the arched style. That is the large multi point configuration, so if you are replacing an older, shorter escutcheon you may see paint or stain shadow lines outside the new plate footprint.
7) Do the handles on this Emtek sandcast bronze set sag over time?
Spring assist is built into every Emtek multi point lock trim now, which returns the lever to neutral and is specifically there to stop the droop you get on long-lever patio hardware.
8) What cylinder does the Emtek 1L1A24 take?
None on this one. It is the non-keyed version, so there is no cylinder in the outside plate. Emtek's keyed arched multi point trims in this family use an American-style cylinder positioned above the handle, which is the spec to look at if you need the keyed leaf.
9) Is this Emtek multi point trim suitable for a commercial building entrance?
It is classified residential hardware, meant for swinging patio and French doors in homes. For a commercial opening with code-driven grade and fire requirements, specify a commercial-rated lock instead.
10) Is the Emtek 1L1A24 an electronic or smart lock trim?
No, it is fully mechanical trim with no electronic components, keypad, or wiring.
