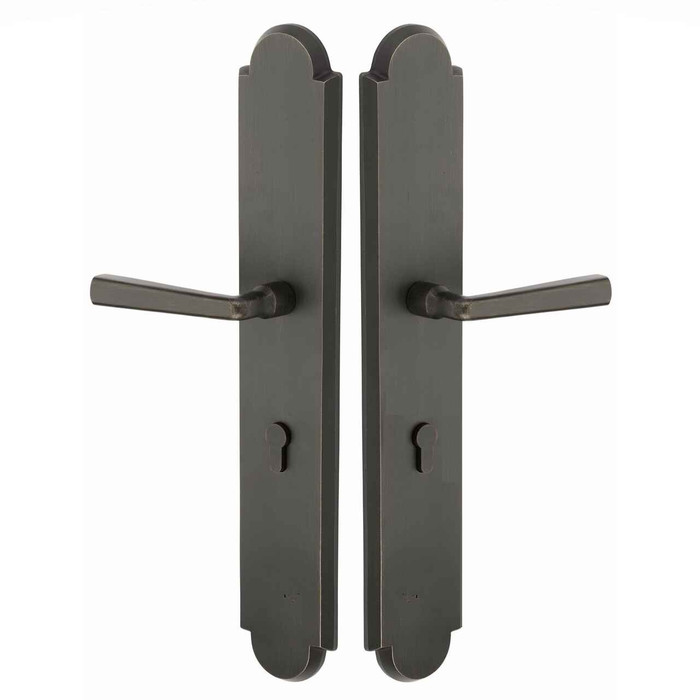

Emtek 1L1A54 Multi Point Lock Trim (Large Multi Point Entry Set) - Sandcast Bronze Plates, Arched Style (3" x 17.5"), Non-Keyed Fixed Handle Outside, Operating Handle Inside (for Semi-Active Door)
- Can be ordered with any Sandcast Bronze Levers
- Swinging Patio Door Hardware. Set includes Plates, Handles
- Multi Point Mortise Lock Box not included. Trims Only
- Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources
Emtek LookBook
Product Specs
- Subcategory:
- Multi Point Lock Trim
- Product Group:
- Mechanical Locks
- Commercial/Residential:
- Residential
- Product Type:
- Multi Point Lock Trim
- Product Subgroup:
- Multi Point Lock Trim
- Collection:
- Sandcast Bronze
- Cylinder Position:
- Below Handle
- Door Configuration:
- Large Multi Point
- Electronic:
- No
- Keyed:
- No
- Lock Type:
- Multi Point Trim
- Ref. Door Manufacturer(s):
- G-U
- Series:
- Arched
- Theme:
- Rustic Living
- MAP Policy:
- Yes
- Product Model:
- 1L1A54
- (CTC) Center-to-Center:
- 3-5/8"
- Product Function:
- Non-Keyed Fixed Handle Outside, Operating Handle Inside
- Product Size:
- 3" x 17.5"
- Cylinder Classification:
- Euro Profile
- Product Style:
- Arched
- Product Material:
- Bronze
- Product Category:
- Mechanical Locks
- Product Substrate:
- Bronze
- Department:
- Door Hardware
Emtek 1L1A54-FB – Frequently Asked Questions
1) Does the Emtek 1L1A54 include the multi point mortise lock body, or is it trim only?
Trim only. The 1L1A54 set ships with the sandcast bronze plates and handles; the multi point mortise lock box is not included and has to be sourced separately, usually from the door manufacturer. Buy it expecting to reuse or order the gearing that is already in the door edge.
2) Will Emtek 1L1A54 trim fit my existing multi point door prep?
The critical number is the 3-5/8 inch center-to-center between the handle and the cylinder, with the Euro profile cylinder sitting below the handle. If your door's gearing uses that same 3-5/8 inch spacing and a Euro cylinder below the lever, the plates line up. The plates themselves measure 3 x 17.5 inches, so they will cover a fair amount of stile. Emtek references G-U gearing for this configuration.
3) What does "semi-active door" mean on this Emtek entry set, and is it the right one for my active leaf?
Semi-active means the inactive leaf of a pair, the one you only open occasionally. The 1L1A54 has a non-keyed fixed handle on the outside and an operating handle inside, so you cannot enter from outside with it. For the active leaf of a French or patio pair, or a single entry door, you need a keyed configuration instead.
4) Do I have to specify handing when ordering the Emtek 1L1A54?
Yes, handing is required. You pick Right Hand (RH) or Left Hand (LH) at order time, along with the lever style. Stand outside the door: if the hinges are on the right it is right hand. Because the inside handle operates the gearing and the outside handle is fixed, the wrong hand cannot be flipped in the field.
5) Which lever styles can I put on the Emtek 1L1A54 arched plates?
Ten sandcast bronze levers are offered with the arched plates: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. The lever choice is required when you order, and it is how you match the rest of the sandcast bronze hardware in the house.
6) Will the levers on this Emtek multi point trim sag over time?
No. Emtek multi point lock trim now includes a spring assist that returns the lever to neutral, which is what prevents the drooping handle you see on older multi point sets. That matters on tall patio doors where a sagging lever is the first thing a homeowner calls about.
7) Is the Emtek 1L1A54 suitable for a commercial building entrance?
It is a residential product. The 1L1A54 is swinging patio door hardware for homes, with no commercial grade rating behind it. For a storefront or high traffic institutional opening, specify commercial mortise or exit hardware instead.
8) Does a key cylinder come with the Emtek 1L1A54, and what type do I need?
No cylinder is included and this configuration is non-keyed on the outside. The prep is for a Euro profile cylinder positioned below the handle, so if your gearing calls for one, order a Euro profile cylinder to match your door thickness and keying.
9) How big are the Emtek arched plates, and will they fit a narrow patio door stile?
The arched plates measure 3 x 17.5 inches. That is a large multi point plate, so the stile has to be wide enough to take 3 inches of plate without it running onto the glass stop or the frame. On slim aluminum clad patio stiles, check the flat width before committing.
10) What finishes does the Emtek 1L1A54 sandcast bronze trim come in?
Three: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). All three are sandcast solid bronze, so the finish will live and patina with handling rather than staying uniform like a plated brass finish.
11) Why does the Emtek 1L1A54 order form ask for door thickness?
Multi point trim has to reach through the door to the gearing, so the spindle and through fixings are set by slab thickness. Door thickness is an optional entry on the order, and giving it lets the trim be supplied to suit your slab rather than a standard assumption.
