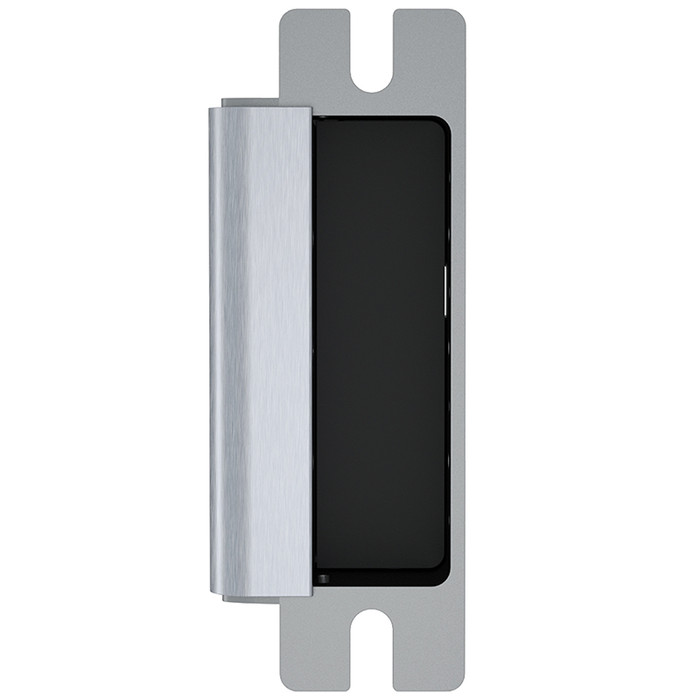

HES 1600 Series Electric Strike — Body Only
The HES 1600 Series Electric Strike is the most advanced electric strike available for cylindrical latchbolt and deadbolt locks. It accommodates up to a 1” deadbolt with enhanced vertical cavity spacing and fits every brand of cylindrical or mortise lock designed to work with a 4-7/8” strike plate.
The 1600 Series sets a new industry standard with dynamic integrated adjustability and field-configurable options compatible with any cylindrical or mortise lock. The modular platform makes stocking and installation easier with interchangeable faceplates and accessories. Available in seven fully finished finishes, the 1600 Series complements surrounding door hardware and blends seamlessly into the opening.
Complete One-Box Solutions
The 1600 Series is also available as Complete Pac bundles that pair the strike body with the appropriate faceplate kit:
- 1600CS Complete Pac — Includes 1LB faceplate kit (latchbolts) and 1DB faceplate kit (deadbolts)
- 1600CLB Complete Pac — Includes 1LB faceplate kit for latchbolt locks
- 1600CDB Complete Pac — Includes 1DB faceplate kit for deadbolt locks; low-profile design with integrated adjustability
Frame Applications
- Metal
- Wood
Electrical Specifications
- 0.24 Amps @ 12 VDC/VAC
- 0.12 Amps @ 24 VDC/VAC
- DC continuous duty / AC intermittent duty only
- Auto-sensing 12/24 VDC dual voltage
- PoE friendly
Standard Features
- Stainless steel construction
- Tamper resistant
- Static strength: 1,500 lbs
- Dynamic strength: 70 ft-lbs
- Endurance: 1,000,000 cycles
- Field selectable fail safe / fail secure
- Non-handed
- Interchangeable faceplates and accessories
- Field replaceable components
- Fully finished faceplate, keeper, case, and trim
- Field adjustable integrated shim
- ElectroLynx™ connectors
- SecuriCare 10-year no-fault warranty (5-year standard; 10-year with SmartPAC III)
Monitor Options
- LM — Lock monitor
- DLM — Dual lock monitors
- LMS — Lock monitor and strike monitor
- DLMS — Dual lock monitors and strike monitor
Available Finishes
- 605 — Bright Brass
- 606 — Satin Brass
- 612 — Satin Bronze
- 613E — Dark Oxidized Satin Bronze (powder coat)
- 629 — Bright Stainless Steel
- 630 — Satin Stainless Steel
- BSP — Black Suede Powder (powder coat)
Faceplates & Accessories
1DB Option — Faceplates for deadbolts in metal frame applications:
- 1N (4-7/8” x 1-1/4”) — Mortise locksets, deadbolt used for night-latch function only. Compatible: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Others. ANSI/BHMA: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333
- 1ND (4-7/8” x 1-1/4”) — Mortise locksets, deadbolt for night-latch function only. Compatible: Sargent (7700 & 8100 series), Yale (8700). ANSI/BHMA: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333
- 1NM (4-7/8” x 1-1/4”) — Mortise locksets with deadlatch below latchbolt, deadbolt for night-latch function only. Compatible: Best (45H & 47H, 34H–37H), Corbin/Russwin, Falcon, Sargent (7800, 8200 & 9200 series). ANSI/BHMA: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333
- 1NTD (4-7/8” x 1-1/4”) — Mortise locksets with normally extended 1” deadbolt without deadlatch. Compatible: Arrow, Baldwin, Marks, Omnia, PDQ, Others. ANSI/BHMA: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333
1DB-2 Option — Faceplate for deadbolts in wood frame applications:
- 1N-2 (9” x 1-3/8”) — Mortise locksets, deadbolt for night-latch function only. Compatible: Accurate, Arrow, Baldwin, Marks, Omnia, PDQ, Schlage, Yale (8700), Others. ANSI/BHMA: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333
Accessories:
- 1600-104-xxx — Lip extension trim adapter (finish to match)
- 1600-106-xxx — 1006 adapter and trim enhancer kit (finish to match)
- OPT-1SRK — Spring replacement kit
- OPT-1LM — Single lock monitor
- OPT-1DLM — Dual lock monitors
- MOD-1SOL — Solenoid replacement module
- HES-MTK — Metal template kit
Certifications & Listings
- UL 10C fire-rated, 3-hour single door (fail secure only)
- UL 10C fire-rated, 1-1/2-hour double door
- CAN4-S104 (ULC-S104) fire door conformant
- ANSI/SDI 250.13 windstorm resistant
- ANSI-ASTM E330
- Florida Building Code approved — TAS 201, 202, 203
- UL 1034 burglary-resistant listed, suitable for outdoor use
- UL 294 listed
- ANSI/BHMA A156.31, Grade 1
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- California Fire Marshal listed
- RoHS compliant
Manufacturer Resources
Product Specs
- Subcategory:
- Electric Strikes
- Product Group:
- Electronic Access Controls
- Series:
- 1600 Series
- Grade:
- Grade 1
- Dynamic Strength:
- 70 ft-lbs
- Shim:
- Field Adjustable
- Warranty:
- 5 Year (10 Year when SmartPACIII)
- Endurance Cycles:
- 1,000,000
- Product Subgroup:
- Electric Strikes
- Product Type:
- Electric Strike Bodies
- Lock Type:
- Mortise or Cylindrical
- Outdoor Rated:
- Yes
- Preload Capable:
- No
- Windstorm Rated:
- Yes
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Power:
- 12/24 VDC (PoE Friendly)
- Battery Operated:
- No
- Holding Force:
- 1,500 lbs
- Tags:
- hes1600
- Product Model:
- HES-1600
- Product Voltage:
- 12/24 VDC
- Face Plate:
- 4-7/8"
- Fire Rating:
- Yes
- Latch Specification:
- Latchbolt and Deadbolt
- Door Strike:
- 1-5/8"
- Product Category:
- Electronic Access Controls
- Product Substrate:
- Stainless Steel
- Product Width:
- 1-3/4"
- Department:
- Door Hardware
- Product Depth:
- 1-5/8"
HES 1600 630 – Frequently Asked Questions
1) What types of locks does the HES 1600 series electric strike work with?
The HES 1600 series accommodates both cylindrical and mortise latchbolt and deadbolt locks. The auto-sensing feature automatically adjusts to different bolt projections and configurations.
2) How does the auto-sensing feature work on this electric strike?
Auto-sensing technology detects the bolt type and projection automatically. This eliminates manual adjustments and ensures proper engagement with various latchbolts and deadbolts without field modifications.
3) Can I use either 12VDC or 24VDC power with this strike?
Yes, the HES 1600 series accepts both 12VDC and 24VDC power input. The dual voltage capability provides flexibility for different access control system configurations.
4) Is this electric strike handed or universal?
Check the specific model designation for handing requirements. Some HES 1600 series models are universal while others require field selection or are pre-handed. Verify door handing before ordering.
5) What finish options are available for the HES 1600 series?
Standard finishes typically include satin stainless steel and dark bronze. Consult the manufacturer specifications for all available finish options and coordinate with existing door hardware.
6) Does this strike meet fire code requirements?
Verify the specific model's fire rating and compliance certifications. Many HES electric strikes are designed for fire-rated applications but always confirm with local authorities and project specifications.
7) What accessories are needed for installation?
This is body only, so you'll need the appropriate faceplate kit for your door frame type. Additional accessories may include field wiring, power supply, and mounting hardware depending on your installation.
8) How do I prepare the door frame for installation?
Use the manufacturer's template for precise mortising. Frame preparation requires careful measurement and clean cuts. Consider hiring experienced access control installers for proper installation.
9) Can I adjust the strike after installation?
The auto-sensing feature minimizes adjustment needs. Basic alignment adjustments may be possible depending on the model. Follow manufacturer instructions for any field adjustments.
10) What other HES electric strike models are similar?
The HES 1500 and 9600 series offer different features and applications. Browse our HES electric strikes section to compare models and find the right strike for your project.
11) What door weights can this electric strike handle?
Check manufacturer specifications for maximum door weight ratings. Proper door weight distribution and hinge condition affect strike performance. Verify your door meets the strike's capacity requirements.
