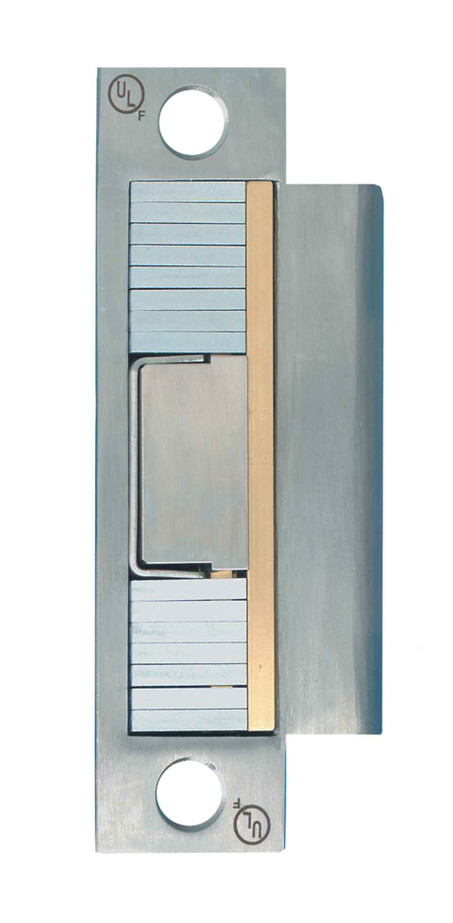

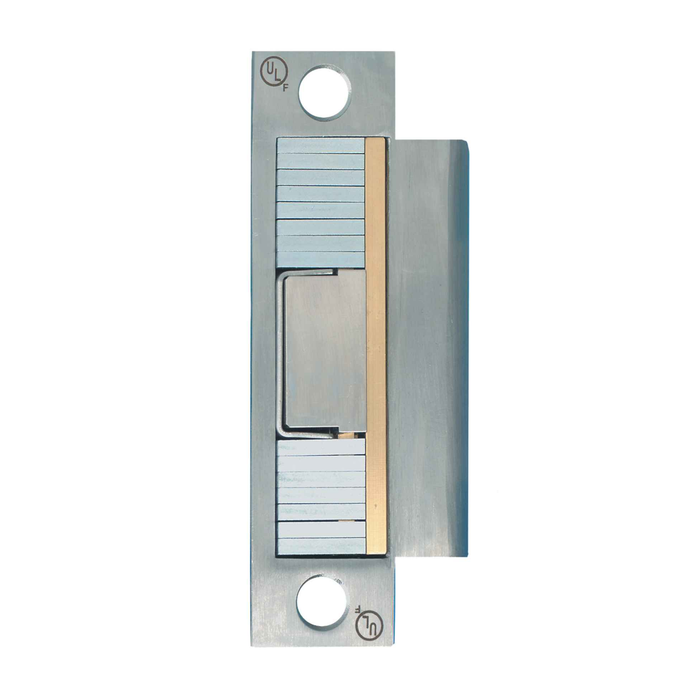

HES MUNL Mortise Electric Strike for Latchbolt Lock

HES MUNL Mortise Electric Strike for Latchbolt Lock

(No reviews yet) Write a Review

Model: MUNL-24-US3
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$874.00
$636.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SECURITRON MUNL MORTISE UNLATCH STRIKE LOCK

Mortise UnLatch is for any application where an electric strike would be used for a mortise type lock. The Mortise UnLatch includes field adjustability for latch and deadlatch positions, releases under pressure and includes a latch status monitoring output.


FEATURES & BENEFITS

  • No cutting or altering of the jamb required
  • Releases under preload
  • Fits standard ANSI 4-7/8" strike cutout
  • Motorized, no solenoids
  • Fully concealed installation
  • Maintains dead-latch function at all times
  • Continuous duty
  • Latch status sensor is standard
  • One model works with most North American Mortise Locks (Sargent 7900 and 8200 require tab kit model #STK-1 for retrofit installations)
  • SecuriCare five-year, no-fault, no questions asked warranty

Product Option

  • 12VDC
  • 24VDC
  • FSUNL for field selectable fail-safe operation

Securitron FSUNL Fail Safe Unlatch® Module: FSUNL allows the UNL and MUNL to become selectable for either "Fail Safe" or "Fail Secure" operation. Removal of power initiates a full unlatch or latch cycle depending on which mode is selected.


SPECIFICATIONS

Holding Force

1500lbs [680kg]


Current Draw:
12VDC: 40mA continuous, minimum 700mA when operating
24VDC: 40mA continuous, minimum 500mA when operating
Higher capacity supply (1-4 Amps) is recommended for startup inrush to achieve best operation under pre-load


Operating Temperature:
-10 to +125F [-29 to +52C]


Shipping Weight:
2 lbs [0.91kg]


Finishes

US26D/626 - Stainless Steel
US10B/613- Oil Rubbed Bronze
US3/605 - Bright Brass Clear Coated


Models

Part # Description
MUNL-12 Mortise Unlatch - 12VDC
MUNL-24 Mortise Unlatch - 24VDC






CERTIFICATIONS & LISTINGS

  • UNL and MUNL - Underwriter's Laboratories: File R18923
  • UNL and MUNL - Windstorm Latching Hardware (ZHEM)
  • UL/cUL GXAY.R18923 /GXAY7.R18923
  • UL ZHEM.R25219
  • UL 10B Listed
  • UL 10C Listed
  • UL listed to ANSI/ SDI-BHMA A250.13(60 PSI) Windstorm
  • UL Certificate of Compliance (CoC)
  • CAN4-S104, CAN/ULC Listed
  • ANSI/BHMA A156.31, Grade 1; E09321,E09322, E09323
  • NFPA-252 fire door compliant
  • ASTM-E152 fire door compliant
  • GXAY and GXAY7 Electric Strike for Fire Door (UL 10B & UL 10C)

Product Specs

Subcategory:
Electric Strikes
Product Group:
Electronic Access Controls
Series:
MUNL
Grade:
Grade 1
Warranty:
5 Year (10 Year when SmartPACIII)
Product Subgroup:
Electric Strikes
Product Type:
Electric Strikes
Lock Type:
Mortise or Cylindrical
Outdoor Rated:
No
Preload Capable:
Yes
Windstorm Rated:
Yes
Commercial/Residential:
Commercial
Electronic:
Yes
Fail-safe / Fail-secure:
Field Selectable
Product Model:
HES-MUNL
Product Voltage:
12/24 VDC
Face Plate:
4-7/8"
Fire Rating:
Yes
Latch Specification:
Latchbolt
Door Strike:
1-1/2"
Product Category:
Electronic Access Controls
Product Substrate:
Stainless Steel
Department:
Door Hardware
Product Depth:
1.5"

HES MUNL-24-US3 – Frequently Asked Questions

1) Will the HES MUNL mortise electric strike work with my existing mortise lock, or do I have to change the lock?
One MUNL works with most North American mortise locks, so in most retrofits the lock stays. The exception called out by Securitron: Sargent 7900 and 8200 locks need tab kit model STK-1 for retrofit installations. It is built for latchbolt locks and the latch and deadlatch positions are field adjustable, which is what lets it suit different lock brands.
2) Do I have to cut the frame to install a MUNL Mortise UnLatch strike?
No cutting or altering of the jamb. The Mortise UnLatch drops into the standard ANSI 4-7/8 inch strike cutout and installs fully concealed, so an existing prepped hollow metal frame takes it as-is. That is the whole point of the design: it is a same-prep swap, not a frame modification job.
3) Is the MUNL electric strike fail-safe or fail-secure?
Field selectable, but only with the FSUNL Fail Safe UnLatch module added. The base MUNL-12 and MUNL-24 are ordered as 12VDC or 24VDC units; the FSUNL is what makes them switchable between fail safe and fail secure, and on loss of power it runs a full unlatch or latch cycle depending on the mode set. If your egress or fire plan calls for the strike to release on power failure, the module is part of the order, not an afterthought.
4) Can I use a mortise electric strike like the HES MUNL on a fire rated door?
Yes. The MUNL is UL 10B and UL 10C Listed, carries UL/cUL GXAY.R18923 and GXAY7.R18923 as an electric strike for fire doors, and is NFPA-252 and ASTM-E152 fire door compliant. It also maintains dead-latch function at all times, which is what a fire door assembly requires of the latching hardware. Note that fail-safe operation and fire doors are not usually compatible; on a fire rated opening you generally want it running fail secure.
5) What power supply do I need for a MUNL electric strike, and can I run it off the same supply as my other strikes?
Standing current is only 40mA continuous on either voltage, but the motor draw is what sizes the supply: minimum 700mA when operating at 12VDC and minimum 500mA at 24VDC. Securitron recommends a 1 to 4 amp supply to cover startup inrush and get reliable operation under pre-load. Sizing to the 40mA figure is the common mistake, and it shows up as a strike that will not release against a loaded door.
6) I have a cylindrical lockset, not a mortise lock. Is the MUNL still the right strike?
The MUNL is built around mortise lock retrofits and the 4-7/8 inch ANSI mortise strike prep. If the opening has a cylindrical lockset, Von Duprin's 4211 is the Grade 1 fire rated cylindrical-lock strike with 12/24VDC field-selectable operation, and Adams Rite's 7240 is a fire rated cylindrical strike for a 5/8 inch latchbolt projection. Von Duprin's 6400 covers either mortise or cylindrical as a modular fail-secure unit.
7) What Grade 1 fire rated electric strike works with both mortise and cylindrical locks besides the MUNL?
The MUNL carries a Grade 1 rating, a fire rating, and covers mortise or cylindrical lock types. The Von Duprin 6400 32D is a Grade 1 modular electric strike for mortise or cylindrical locks in fail-secure with a 3-hour UL 10C fire rating and satin stainless steel construction. The Hager 2930 is a fire rated Grade 1 strike for cylindrical and mortise locks with 12/24VDC dual voltage. The Von Duprin 6400 is fail-secure only, while the MUNL is field selectable fail-safe or fail-secure.
8) What is the equivalent of the HES MUNL mortise unlatch strike from another brand?
The Securitron MUNL Series Mortise UnLatch Electric Strike is the same MUNL series part, carrying a Grade 1 rating and a fire rating. Both are motorized mortise unlatch strikes for latchbolt mortise locks. If a spec calls out Securitron MUNL by name, that part number matches it directly.
9) What electric strike takes the place of the MUNL on an aluminum storefront jamb?
The MUNL fits a standard ANSI 4-7/8 inch strike cutout for mortise and cylindrical latchbolt locks. For aluminum jambs, the Adams Rite 7100 Series has a flat faceplate at 1-1/4 by 4-7/8 inches, and the Adams Rite 7160 uses a 1-1/4 by 4-7/8 inch faceplate as well. Both Adams Rite parts are not fire rated, so confirm the opening is non-rated before specifying them. The Adams Rite 7170 covers hollow metal and wood jambs with the same 1-1/4 by 4-7/8 inch faceplate.
10) What other electric strike gives me latch monitoring like the MUNL?
The MUNL includes a latch status monitoring output as standard. The Dortronics 3300 Series is an electric strike with a latch bolt sensing switch, 12/24VDC, and a strike plate for ANSI prep at 4-7/8 by 1-1/4 inches. The Camden CX-ED1799L-8 is a fire rated dual monitor Grade 1 strike supplied with 8 faceplates, and the Hager 2945 is a fire rated rim exit strike with a latchbolt monitor.
11) Which no-cut electric strikes compare to the MUNL for a retrofit with no jamb modification?
The MUNL requires no cutting or altering of the jamb and fits a standard ANSI 4-7/8 inch strike cutout. The Locknetics NC450 is a no cut electric strike, and the Camden CX-ED1689L-4 is a fire rated universal low profile strike supplied with 4 faceplates. The Camden CX-ED1410 and CX-ED1420 Series are universal Grade 1 ANSI fire-rated strikes.
12) Can I swap an AC powered electric strike for the MUNL?
No. The MUNL runs on 12 or 24 VDC. The Trine 004 is an 8-16VAC fail secure strike with a 6-1/4 by 1-3/8 inch faceplate and up to 5/8 inch throw, and the Trine 2001 runs 16-24VAC/DC fail secure with a 5-7/8 by 1-1/4 inch faceplate. The Trine 004 faceplate also differs from the 4-7/8 inch faceplate the MUNL uses, so the jamb prep will not line up either.
13) What looks like a substitute for the MUNL but will not hold up on a fire rated opening?
Several strikes with a similar 4-7/8 inch faceplate footprint are not fire rated, including the Adams Rite 7100 Series, the Adams Rite 7160, and the Adams Rite 7170. The RCI 15BS, the Trine 001 Series, and the Camden CX-ED1959 outdoor gate strike are also not fire rated. The MUNL is fire rated and windstorm rated, so on a labeled opening those parts are not interchangeable with it.
14) Do any comparable electric strikes release under preload like the MUNL?
The MUNL is preload capable and releases under pressure, which matters on a door under wind or stack pressure. Among the comparable strikes, that behavior is what distinguishes the motorized MUNL from solenoid strikes such as the SDC 25 Series, which handles 1/2 inch latchbolt, and the SDC 45F Series, a fire-rated strike with 5/8 inch latchbolt compatibility and a radius corner faceplate. If the opening sees preload, specify the MUNL or the Securitron MUNL Series Mortise UnLatch.
15) Do I need a separate door position switch to monitor this opening, or does the strike report latch status?
A latch status sensor is standard on the MUNL, so the strike itself outputs whether the latch is secure. For an access control head end that needs positive confirmation the door actually relatched, that removes a separate switch from the bill of materials. It reports latch status, not door position, so if your sequence needs to know the door leaf is closed as well, that is still a separate device.
16) Can I install a HES MUNL strike on an exterior gate or an unprotected outdoor opening?
No. The MUNL is not outdoor rated, so a gate or a fully exposed opening is the wrong application for it. Operating range is -10 to +125F (-29 to +52C), which covers unconditioned interior spaces and protected entries. For a gate, Camden's CX-ED1959 Series is the outdoor rated (gate) strike in the range.
17) Is this strike rated for a hurricane or windstorm rated door assembly?
Yes. The MUNL is UL listed as Windstorm Latching Hardware (ZHEM), under UL ZHEM.R25219, and UL listed to ANSI/SDI-BHMA A250.13 at 60 PSI for windstorm. For coastal work and storm shelter openings where the latching hardware has to be listed alongside the door and frame assembly, that listing is the one the spec asks for.
18) Is the HES MUNL Grade 1, and can it be held unlocked all day for business hours?
Grade 1 under ANSI/BHMA A156.31, listed as E09321, E09322 and E09323, and rated continuous duty. Continuous duty is the spec that matters for a lobby or storefront door you energize from open to close: it can stay powered for the whole schedule without cooking the coil. For a standardized institutional package, the Grade 1 listing is what most facility specs call out.
19) Is there a simpler electric strike than the MUNL for a light duty interior door?
The SDC 15 Series is a value 5/8 inch latchbolt electric strike with 12/24 VDC operation, and the Trine 001 Series is a fail-secure light commercial strike with a 5-7/8 inch by 1-1/4 inch faceplate. The RCI 15BS is an economy strike for special offset latch entry with fail-secure operation. None of those three carry a fire rating, so they suit non-rated interior openings; the MUNL is fire rated and Grade 1.
20) Which electric strikes besides the MUNL have field selectable fail-safe and fail-secure operation?
The MUNL is field selectable for fail-safe or fail-secure. Among comparable strikes, the Hager 2925 with 5/8 inch latch, the Hager 2928, the Hager 2930, and the Hager 2945 rim exit strike are all field reversible fail safe/secure. The Hager 2945 also includes a latchbolt monitor and is fire rated. The Von Duprin 4211 32D is 12/24 VDC field-selectable and Grade 1.
21) What electric strike can I use on a pair of doors where the MUNL will not work?
The MUNL is a mortise unlatch strike for a single latchbolt lock. For a double door application, the Rockwood electric strike for double doors uses a 3/4 keeper, is Grade 1, and is fire rated.
22) Which heavy duty electric strikes are in the same class as the Grade 1 MUNL?
The MUNL is Grade 1 with stainless steel construction. Heavy duty peers include the Alarm Controls AES-100, a Grade 1 heavy duty electric strike, plus the Locknetics MDS100 and Locknetics MS100, both heavy duty. The Von Duprin 6400 32D is Grade 1 heavy duty in satin stainless steel. Of these, the AES-100 and the Von Duprin 6400 carry the Grade 1 designation alongside the MUNL.
23) Which finishes and voltages does the MUNL Mortise UnLatch come in?
Three finishes, each available in both 12V and 24V: 626 satin chrome (stainless steel), 613 oil rubbed bronze, and 605 bright brass. The body is stainless steel. On a hollow metal frame with existing 626 hardware the satin chrome matches the common commercial standard; the bronze and brass are there for openings where the visible faceplate has to match decorative trim.
