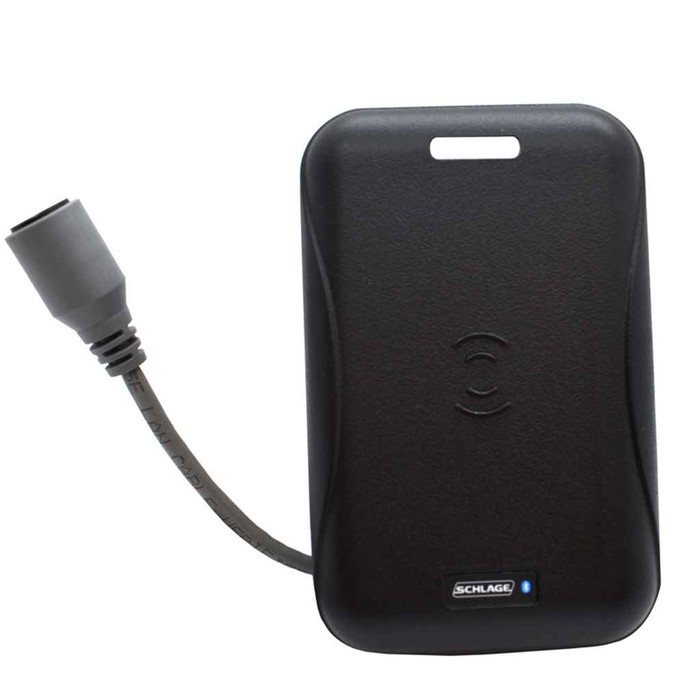

Isonas KIT - RC Multi-Technology IP Reader-Controller, Wall Mount, Single Gang, 125khz Proximity, 13.56 MHz Smart, 2.4 GHz Bluetooth, TLS1.2, DHCP, Indicating LED's, PoE+, 10-13VDC, IP65, FCC, CE, UL

Isonas KIT - RC Multi-Technology IP Reader-Controller, Wall Mount, Single Gang, 125khz Proximity, 13.56 MHz Smart, 2.4 GHz Bluetooth, TLS1.2, DHCP, Indicating LED's, PoE+, 10-13VDC, IP65, FCC, CE, UL

(No reviews yet) Write a Review

Model: RC15

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,385.00
$863.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Isonas KIT - RC Multi-Technology IP Reader-Controller, Wall Mount, Single Gang, 125khz Proximity, 13.56 MHz Smart, 2.4 GHz Bluetooth, TLS1.2, DHCP, Indicating LED's, PoE+, 10-13VDC, IP65, FCC, CE, UL

RC Series is an IP reader controller that combines patented Pure IP access control technology together with intelligent hardware, delivering a cost-effective all-in-one edge device that easily integrates into open PACS solutions. The RC connects to existing IT networks via a single PoE cable; reducing installation time and eliminating the need to run separate power to the door. The RC provides real-time connectivity with local mode feature, and can be managed in the same system as NDE and LE wireless locks. Mullion mount, multi-technology IP reader controller. RC Reader controllers provide both a modern look and an advanced feature set. Designed with technology to support Bluetooth, NFC (near field communication), smart credentials (13.56 MHz) and standard proximity credentials (125 kHz); end users can define their migration path to secure credentials.

Features:

  • The RC contains 125 kHz proximity, 13.56 MHz smart and 2.4 GHz Bluetooth circuitry enabling the ability to process multiple formats simultaneously.
  • Real time connectivity; local mode feature allows readers to function without a connection to the network. This results in faster user response times, less network traffic and reduced host system loading.
  • Tamper detection via accelerometer senses any type of altering and prevents a security breach with the reader.
  • Communication is secured using industry standard TLS 1.2 encryption.
  • Supports network communication speeds of 10 or 100 mbps half or full duplex.
  • Commission via ENGAGE mobile app for easy configuration.
  • Three configurable inputs; door position (DPS), request to exit (REX), and auxiliary (AUX).
  • Mullion, wall mount and wall mount with keypad form factors.
  • Reader controllers support 125 kHZ proximity, 13.56 MHz smart technology, 2.4 GHz Bluetooth and near field communication (NFC).
  • Credential parity standard with Schlage MTB mobile enabled multi-technology readers and Schlage mobile enabled wireless locks; Isonas credential parity is a factory orderable option.
  • Accommodates interior, exterior, metal and non-metal installation environments.



Specifications:

  • Model: RC15
  • Reader Type: Mobile (NFC and Bluetooth), smart, proximity
  • Mounting style: Single gang
  • Standards: ISO 14443A, ISO 15693
  • Certifications: FCC Certification - IC certification - UL294 V7 / cUL Listed - Red directive - CE Mark - IP65 - Reach - Bluetooth SIG - RoHS 3.
  • Frequency: 2.4 GHz, 13.56 MHz and 125 kHz
  • Intelligence Capacity: 64,000 credentials - 5,000 events - 32 time schedules - 32 holidays
  • Network communications:
    • 10/100Mb, half or full duplex
    • Ethernet, WebSockets, standard Cat5E or better cable
    • Network host or client modes - DHCP addressing
  • Visual communications: LED (red, amber, green)
  • Audible communications: Audible indicator (on/off)
  • Software compatibility: Works with open PACS systems including Isonas Pure Access Cloud
  • FIPS 201 compliant: No
  • Technology supported: CSN, Proximity, Smart, Mobile (NFC and Bluetooth)
  • System interface: 2 TTL Lines/clock & data (for use with the advanced security module (ASM))
  • Inputs: Request to exit (REX)/auxiliary input (AUX)/door position switch (DPS)
  • Poe/PoE+ Pigtail: 26 AWG, CAT 5E, 8" length
  • Tamper: Yes
  • Physical dimensions: 5.13" x 3.25" x 1.0" (13.0cm x 8.3cm x 2.5cm)
  • Operating temperatures: - 31°F to 151°F (- 40°C to 66°C)
  • Weight: 8.1 oz (229.6 g)

Manufacturer Resources

Product Specs

Subcategory:
Access Controls
Product Group:
Electronic Access Controls
Product Subgroup:
Readers, Keypads and Credentials
Product Type:
Hardwired
Commercial/Residential:
Commercial
Parts and Accessories Type:
Prox Readers & Keypads
Product Attribute:
Hardwired
Product Category:
Electronic Access Controls
Department:
Door Hardware

Isonas RC15 – Frequently Asked Questions

1) Does the Isonas RC15 need a separate door controller panel?
No panel. The RC15 is an all-in-one edge device: the reader and the controller are the same unit, which is the point of the Pure IP architecture. It holds 64,000 credentials, 5,000 events, 32 time schedules and 32 holidays on board, and has three configurable inputs for door position switch, request to exit and auxiliary. That removes the head-end panel and the home-run wiring back to it.
2) Can I mount an Isonas RC15 outside, and what temperature range does it hold up to?
Yes. The RC15 is rated IP65 and works in interior, exterior, metal and non-metal installation environments. Operating range is -31F to 151F (-40C to 66C), which covers most unconditioned exterior openings. The accelerometer-based tamper detection is worth noting on an exterior mount since it senses any physical altering of the reader.
3) What credential types does the Isonas RC15 read? We are still on 125 kHz prox cards.
It reads all of them at once. The RC15 carries 125 kHz proximity, 13.56 MHz smart and 2.4 GHz Bluetooth circuitry and processes multiple formats simultaneously, plus NFC and CSN. That means you can keep issuing your existing 125 kHz prox cards and phase in smart credentials or mobile on your own schedule without swapping readers. Card standards supported are ISO 14443A and ISO 15693.
4) What happens at the door if the network goes down on an Isonas RC15?
Access keeps working. The RC Series runs real-time connectivity with a local mode feature that lets the reader function without a network connection, using the credentials and schedules stored on board. The side benefit even when the network is up is faster user response, less network traffic and lighter load on the host system.
5) Is the Isonas RC15 UL listed for access control, and is the communication encrypted?
The RC15 is UL294 V7 / cUL Listed, and also carries FCC and IC certification, CE Mark, RED directive, Reach, Bluetooth SIG, RoHS 3 and an IP65 rating. Network traffic is secured with TLS 1.2. One thing to flag for federal work: it is not FIPS 201 compliant.
6) Can I mix Isonas RC readers with Schlage NDE and LE wireless locks on one system?
Yes. The RC can be managed in the same system as NDE and LE wireless locks, and it works with open PACS platforms including Isonas Pure Access Cloud. On credentials, the RC has credential parity as standard with Schlage MTB mobile enabled multi-technology readers and Schlage mobile enabled wireless locks; Isonas credential parity is a factory orderable option, so specify it at order time if your existing cards are Isonas.
7) What network settings do I need from IT before installing an Isonas RC15?
Give IT this: the RC15 runs 10/100 Mb Ethernet, half or full duplex, over Cat5E or better, uses WebSockets, and addresses via DHCP. It will operate in network host or client mode. You will also want a PoE or PoE+ switch port since the unit powers off that same run. Commissioning itself is done through the ENGAGE mobile app.
8) Can I add a higher-security interface to the Isonas RC15 for a secure area?
There is a system interface of 2 TTL lines (clock and data) intended for use with the advanced security module (ASM). That is the path when you need reader data handled behind a secure module rather than terminated at the reader itself. The ASM is a separate item and is not part of the reader-controller.
9) How does the Isonas RC15 signal a granted or denied read to the user?
Visually with a red, amber and green LED, and audibly with an indicator that can be switched on or off. On a quiet floor or a residential-adjacent corridor in a multi-family building, turning the audible off and relying on the LED is usually the call.
10) Is the Isonas RC15 suitable for commercial buildings or is it a residential product?
It is a commercial-grade access control device, not a residential one. It is hardwired, UL294 V7 / cUL Listed, and built around IT network infrastructure with PoE and DHCP, which is how commercial offices, healthcare, education and multi-family common areas deploy access control. For a single residential door with no network drop, this is more device than the opening needs.
