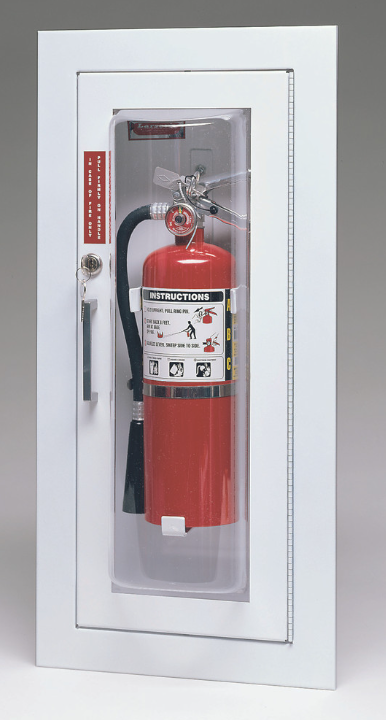

Larsens Cameo Series C2409 — 10 lb Fire Extinguisher Cabinet

The Cameo Series C2409 provides a safe, code-compliant, and architecturally clean method of housing a 10 lb ABC fire extinguisher in a shallow wall. The acrylic bubble door projects the extinguisher forward, enabling full 180° visibility of cabinet contents while keeping the box depth to just 3.5 inches — ideal for installations where wall depth is limited. ADA compliant when mounted with the leading edge at or below 27" from finished floor.

Interior Box Dimensions

  • Height: 24" (60.9 cm)
  • Width: 9.5" (24.1 cm)
  • Depth: 3.5" (8.9 cm)
  • Capacity: 10 lb ABC Fire Extinguisher (manufacturer's standard bracket required)

Door & Frame

  • Door glazed with vacuum-formed acrylic bubble — available in standard clear and optional semi-transparent bronze or red
  • Optional lettering applied to back of bubble to prevent damage (except bronze and red bubbles)
  • All door frames: ½" thick hollow-metal design
  • Satin finish pull handle with self-adjusting roller catch
  • Continuous piano hinge — material matches door and trim
  • Larsen-Loc® locking option available on all door styles
  • Standard material: Steel; optional: Aluminum

Box Construction

  • Recessed and semi-recessed steel cabinets: heavy gauge steel with white baked enamel finish
  • Surface-mounted aluminum cabinets: box constructed entirely of clear or color anodized aluminum

Trim Options

  • Available trim widths: Trimless, 1.5", 2 3/4", 2 5/8", 3 7/8", 4", 4 5/8"
  • Deduct ¾" from H × W dimensions for cabinets with aluminum trim (does not apply to fire-rated "FS" option)
  • Trimless cabinets must be installed before drywall; plaster stops must be behind drywall — not recommended for block wall installation

Fire Rating

  • Non-fire-rated and fire-rated (FS) options available — select at checkout

ADA Compliance

  • To comply with ADA wall projection guidelines, mount with leading edge at or below 27" from finished floor

Manufacturer Resources

Larsens Catalog

Product Specs

Door Material:
Steel Frame / Acrylic Bubble Door
Extinguisher Capacity:
10LB
Surface Mounted:
No
Cabinet Inside Box Height:
24"
Cabinet Inside Box Width:
9.5"
Cabinet Inside Box Depth:
3.5"
Cabinet Style:
Cameo
ADA:
Yes
Product Group:
Fire Extinguisher Cabinet
Product Subgroup:
Fire Extinguisher Cabinet
Collection:
Cameo
Product Type:
Fire Extinguisher Cabinet
Department:
Safety
Installation Type:
Recessed, Semi-Recessed, Surface Mounted

Larsens FSC24096RL – Frequently Asked Questions

1) Is the Larsens Cameo C2409 cabinet ADA compliant, and how does it have to be mounted?
ADA compliant, but the mounting height is what makes it so. Mount the cabinet with the leading edge at or below 27 inches from finished floor to satisfy ADA wall projection guidelines. Above that height a projecting cabinet becomes a protruding object. The bubble door is what drives this: it projects forward of the wall, so the 27 inch rule applies where a flush door cabinet might not need it.
2) What is the difference between trimless and 1.5 inch trim on a Larsens Cameo cabinet, and which do I order?
Trim width is a construction sequencing decision, not a looks decision. The Cameo C2409 comes trimless or with 1.5, 2 5/8, 2 3/4, 3 7/8, 4, or 4 5/8 inch trim. Trimless has to go in before the drywall, with plaster stops behind the drywall, and it is not recommended for block wall installation. If the wall is already closed up, or you are cutting into block, take a trimmed version: the trim flange covers the cut edge of the opening. On a retrofit into existing drywall, trim is almost always the right call.
3) Can you see the extinguisher through a Cameo bubble door without opening the cabinet?
That is the reason for the bubble. The vacuum-formed acrylic dome on the Cameo door gives full 180 degree visibility of the cabinet contents, so an inspector or a maintenance tech can verify the extinguisher is present and the gauge is in the green from down the corridor without unlatching anything. Standard bubble is clear; semi-transparent bronze or red are optional if you want the unit less visually loud.
4) Can I get the C2409 with glass instead of the acrylic bubble?
Yes. Standard glazing on the Cameo C2409 is the acrylic bubble, included in the base cabinet, and you can substitute tempered glass or laminated safety glass at extra cost. Acrylic is the usual pick because it will not shard, but tempered or laminated glazing is specified where a scratch resistant surface matters, such as a high traffic school or hospital corridor where acrylic hazes over from cleaning.
5) Can I get FIRE EXTINGUISHER lettering on the Cameo cabinet door?
Yes. Lettering is an add-on and it is applied to the back of the bubble so it cannot be scratched or peeled off the face. That backside application is not available on the bronze or red bubbles. Choices run vertical or horizontal die-cut letters in red, white, or black, plus the international extinguisher symbol in red or black. Separate stick-on decals and identification signs are also orderable with the cabinet.
6) Can I add an alarm that sounds when someone opens the fire extinguisher cabinet?
Yes. A Vigilante alarm can be added to the Cameo C2409, in either a standard or a surface mounted version. It is the common request in schools, dormitories, and public buildings where extinguishers get pulled as pranks: opening the door triggers the local alarm, which cuts down on unreported discharges and missed recharges.
