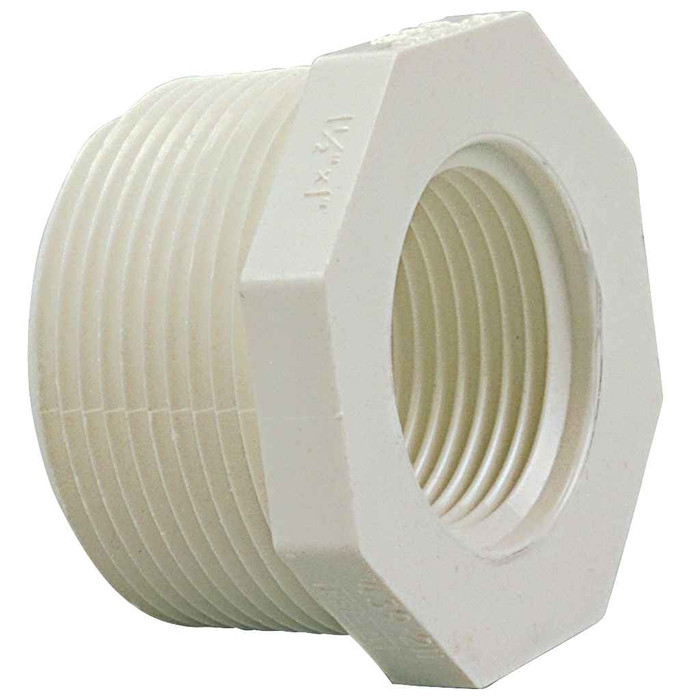

The PVC Schedule 40 bushing is used in cold water pressure distribution systems including irrigation, pool and spa, potable water and chilled water applications. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. Polyvinyl chloride (PVC) is the most frequently specified of all thermoplastic materials because of its light weight, durability and cost-effectiveness. PVC Schedule 40 is easy to install and is joined by solvent cementing or threading. PVC fittings exhibit high corrosion and chemical resistance and will not rust, scale, pit or corrode. NIBCO® plastic fittings are backed by a 5-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.
Plastic Fittings Installation Instructions
- Maximum service temperature 140-DegreeF
- Do not test or use with compressed air or other gases
- ASTM D2466
- ASTM D1784, cell Class 12454
- NSF/ANSI/CAN-61
- UL Listed 94V-0
- NSF U.P. Certified
Plastic Fittings Installation Instructions
Manufacturer Resources
Product Specs
- All Application(s):
- Lead-Free
- All Basic Material:
- PVC - Polyvinyl Chloride
- Classification:
- PVC Sch 40 Bushings
- End Connection:
- Threaded
- Pipe Schedule:
- 40
- Plastic End Connection Type:
- M x F
- Product Group:
- Fitting
- Product Type:
- PVC Sch 40 Bushings
- System Use:
- Commercial Plumbing, Irrigation, Residential Plumbing
- Type of Bushing:
- Reducing;Standard
- Product Subgroup:
- Bushing
- Department:
- Plumbing
- Product Color:
- White
- Country Of Origin:
- United States
Nibco L181700P – Frequently Asked Questions
1) Is the Nibco 4618 PVC bushing threaded or solvent weld?
Threaded on both ends: the Nibco 4618 Schedule 40 PVC bushing is a M x F fitting, male thread on the large end that screws into a female threaded port, female thread on the small end that accepts a male threaded pipe or nipple. If your run is solvent cement socket, this is the wrong bushing for it.
2) What size reductions does the Nibco 4618 PVC bushing come in?
Fifteen reducing combinations, from 1/2 in. x 1/4 in. up to 3 in. x 2 in. In between you get 3/4 x 1/4, 3/4 x 1/2, 1 x 3/4, 1 x 1/2, 1-1/4 x 1, 1-1/4 x 3/4, 1-1/4 x 1/2, 1-1/2 x 1-1/4, 1-1/2 x 1, 1-1/2 x 1/2, 2 x 1-1/2, 2 x 1-1/4 and 2 x 1. The first number is the male thread side, the second is the female side.
3) Can I use a PVC threaded bushing on a hot water line?
No. Maximum service temperature for this PVC Schedule 40 bushing is 140 degrees F, so it is for cold water pressure distribution only, irrigation, pool and spa, potable cold and chilled water. Domestic hot water and heating returns need a different material.
4) Can I use this PVC bushing on a compressed air line?
No. The manufacturer states plainly: do not test or use with compressed air or other gases. This is a liquid pressure fitting only, and that includes pressure testing the system. Test with water.
5) Will a threaded PVC bushing thread into a metal female fitting?
The male end is a standard NPT taper thread, so it will engage a metal female port, but plastic male into metal female is the joint most prone to splitting when over-tightened. Hand tight plus one to two turns with thread sealant, no pipe dope that attacks PVC, and never use the fitting body as a wrench point. Nothing beyond 140 degrees F on the line either.
6) What is the Nibco part number for a 3/4 x 1/2 PVC threaded bushing?
The 3/4 in. x 1/2 in. size is Nibco MPN L181000. Other common sizes: 1 x 3/4 is L181050, 1-1/4 x 1 is L181200, 2 x 1-1/2 is L181600 and 3 x 2 is L182250P.
7) Can I glue PVC pipe into this bushing?
No, not into this one. Both ends of the 4618 are threaded, M x F, so there is no socket to solvent cement. Sch 40 PVC can be joined either by solvent cementing or by threading, but a given fitting only accepts the ends it is made with. For a cemented reduction you need a socket reducer bushing instead.
8) Is this bushing suitable for commercial and irrigation work or just residential?
Both. System use covers commercial plumbing, residential plumbing and irrigation, and the description also names pool and spa and chilled water as applications. It is white Schedule 40 PVC throughout.
