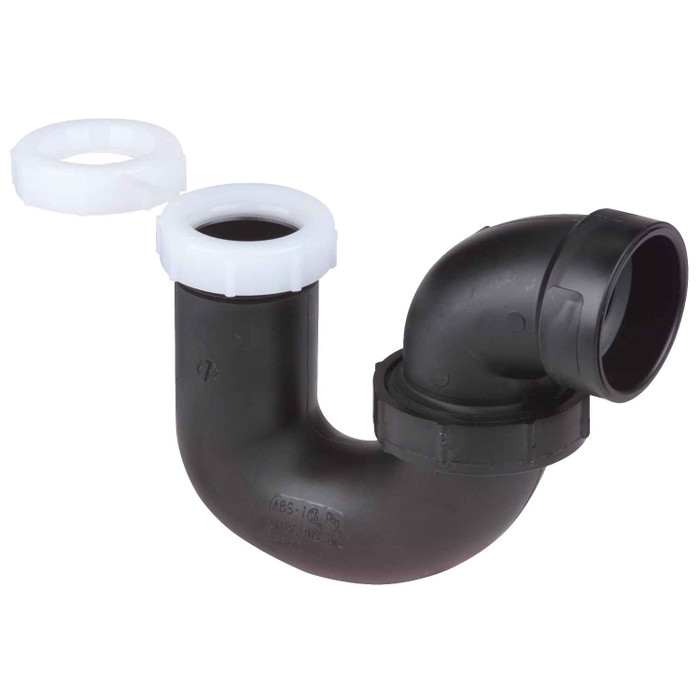

Nibco 5893 P-Trap with Union Joint L.A. Pattern Hub x SJ - ABS DWV

Nibco 5893 P-Trap with Union Joint L.A. Pattern Hub x SJ - ABS DWV

(No reviews yet) Write a Review

Model: I603000

In Stock (leaves warehouse same day if ordered before 3pm ET)

$18.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
The ABS DWV P-Trap features a hub x slip joint connection with L.A. Pattern union joint that is used when local code does not permit the use of slip coupled traps. The P-Trap provides a water seal so that wastewater will automatically be trapped in the arc of the configuration, thereby preventing unwanted gases from entering the household environment. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. Acrylonitrile-Butadiene-Styrene (ABS) is resistant to a wide variety of materials ranging from sewage to commercial household chemical formulations and can be exposed to a wide temperature span. ABS is lightweight, safe to handle and easy to install. ABS DWV is joined by solvent cementing or threading and can easily be connected to steel, copper, or cast iron through the use of transition fittings. NIBCO® plastic fittings are backed by a 5-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.

  • Service temperature -40-DegreeF to 180-DegreeF
  • Do not test or use with compressed air or other gases
  • CSA B181.1
  • ASTM D2665
  • ASTM D3965
  • ASTM D2661 and D3311
  • UL Listed 94V-0
  • NSF/ANSI Standard 14
  • NSF U.P. Certified

Plastic Fittings Installation Instructions

Manufacturer Resources

Product Specs

All Application(s):
DWV Drain / Waste / Vent
All Basic Material:
ABS - Acrylonitrile Butadiene Styrene
Classification:
ABS DWV Traps
End Connection:
Slip Joint
Pipe Schedule:
40
Plastic End Connection Type:
Hub x SJ
Product Group:
Fitting
Product Type:
ABS DWV Traps
System Use:
Commercial Plumbing, Residential Plumbing
Type of Trap:
P-Trap;with Union Joint;L.A. Pattern
Product Subgroup:
Trap
Department:
Plumbing
Product Color:
Black
Product Width:
5.88 in
Product Height:
2.81 in
Product Weight:
0.485 lb
Product Length:
10.32 in
Country Of Origin:
United States

Nibco I603000 – Frequently Asked Questions

1) Why would I use a Nibco 5893 L.A. pattern trap instead of a standard slip-coupled P-trap?
The L.A. pattern union joint exists for jurisdictions where local code does not permit slip coupled traps. The 5893 uses a solid union joint on the trap body instead, so it satisfies those codes while still giving you a serviceable joint. If your inspector allows slip couplings, a standard ABS P-trap is fine; if you're in an L.A. pattern area, this is the one that passes.
2) What do the two ends of the Nibco 5893 ABS trap connect to?
It's a hub x slip joint configuration. The hub end takes Schedule 40 ABS DWV pipe and is solvent cemented; the slip joint end takes the tailpiece coming down from the fixture drain. So you're cementing into the drain line on one side and making a mechanical, removable connection at the fixture side.
3) Does the Nibco 5893 trap work for a 1-1/4 inch sink tailpiece?
Yes. The 5893 is offered as 1-1/2 inch or 1-1/2 x 1-1/4 inch, so you can run a 1-1/2 inch drain line with a 1-1/4 inch fixture connection, which is the common lavatory setup. Order the size combination that matches your tailpiece, since the trap itself doesn't reduce beyond what you specify.
4) Can I use this ABS trap on a commercial job or is it residential only?
Both. Nibco lists the 5893 for commercial and residential plumbing, in DWV drain, waste and vent service. It carries NSF/ANSI Standard 14 and NSF U.P. certification and is UL Listed 94V-0, plus ASTM D2661, D2665, D3311, D3965 and CSA B181.1 compliance, which is the paperwork most commercial specs and inspectors ask for.
5) Will a Nibco ABS trap handle hot water and drain cleaner from a commercial kitchen sink?
Service temperature runs -40F to 180F, and ABS resists everything from sewage to household and commercial chemical formulations. That covers normal hot drainage and typical drain chemicals. One hard limit: never test or use the line with compressed air or other gases.
6) Can I connect this ABS trap to existing copper or cast iron drain piping?
Not directly. ABS DWV joins by solvent cement or threading, so to tie into steel, copper or cast iron you need a transition fitting at that point. Plan the changeover outside the trap itself, on the arm or the drain line.
7) Is the Nibco 5893 black ABS or white PVC?
Black ABS. If the rest of the rough-in is white PVC, you're mixing materials, and ABS to PVC joints are a code question in many jurisdictions. Match the trap to the system material you already have in the wall.
8) What is the part number for the Nibco 5893 trap?
The Nibco 5893 P-trap, hub x slip joint with L.A. pattern union, carries manufacturer part number I603000 for the 1-1/2 inch / 1-1/2 x 1-1/4 inch size.
