Nibco PFD-2000 Butterfly Valve...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,164.76

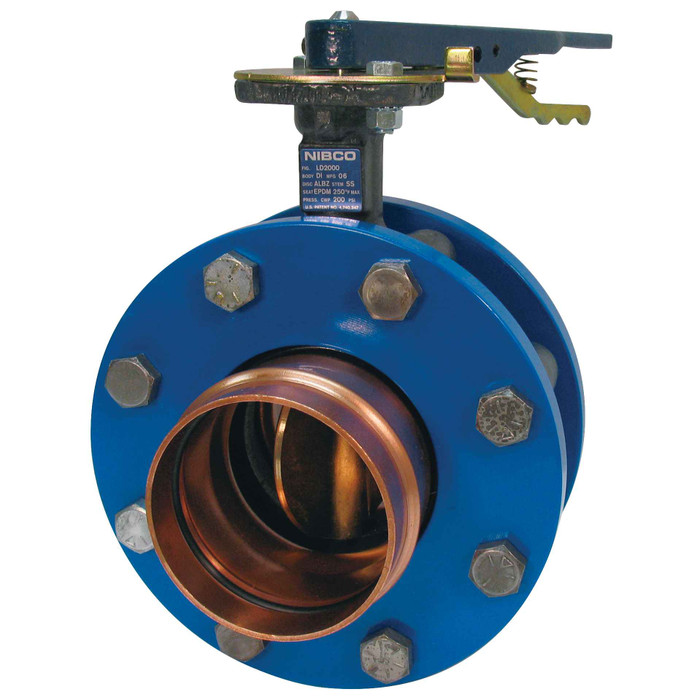

Nibco PFD-2000 Butterfly Valve - Ductile Iron, Press x Press Female Ends, 200 PSI

Nibco PFD-2000 Butterfly Valve - Ductile Iron, Press x Press Female Ends, 200 PSI

(No reviews yet) Write a Review

Model: NLR100F

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,164.76
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
The NIBCO® lug type butterfly valve is ideal for commercial and some light industrial process applications, including HVAC and vacuum services, in addition to hot and cold potable water. The ductile iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. With the internal stem/disc geometric drive design, there is no need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 inches. The unique molded-in EPDM seat liner with aluminum bronze disc is recommended for most water applications. The NIBCO® Press System® is user friendly, quick and easy to install. When properly crimped a unique "N" witness mark is clearly visible. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. NIBCO® Press System® applies the proven performance of press technology to NIBCO valves and fittings -- the most specified flow control products in the industry. The NIBCO® Press System® features a full range of precision engineered copper fittings, bronze valves, accessories, pressing tools, jaws and chains. NIBCO® Press System® valves are backed by a 5-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.

  • Valve pressure rating 200 psi/13.8 bar non shock cold working pressure
  • Maximum service temperature 250-DegreeF
  • Ductile iron body
  • Extended neck
  • Geometric drive
  • Molded-in seat liner
  • Press x press female end connections
  • MSS SP-67
  • MSS SP-25
  • API Std 609

Rubber-Seated Butterfly Valves IOM

Manufacturer Resources

Spec Sheet

Product Specs

All Basic Material:
Ductile Iron
Classification:
Press Butterfly Valves
End Connection:
Press
Product Group:
Valve
Seat Seal Material:
EPDM Rubber
System Use:
Automatic Sprinkler Systems, Commercial Plumbing, Heating, HVAC, Industrial, Irrigation, Residential Plumbing, Lead Free*
Type of Valve:
Butterfly Valve
Valve End Connection Type:
Female Press x Female Press
Valve Pressure Rating (PSI):
200 PSI rated pressure
Product Subgroup:
Valves
Product Type:
Press Butterfly Valves
Department:
Plumbing
Country Of Origin:
United States

Nibco NLR100F – Frequently Asked Questions

1) What pipe sizes does the Nibco PFD-2000 press butterfly valve come in?
Three sizes: 2-1/2 inch, 3 inch and 4 inch, each available with either a lever-lock handle or a gear operator. Lever-lock models are NLR100E (2-1/2"), NLR100F (3") and NLR100H (4"); the gear operated versions are NLR110E, NLR110F and NLR110H.
2) Do I need to solder or thread the PFD-2000 butterfly valve into the line?
No. Both ends are female press connections, so the valve is crimped onto the pipe with a press tool instead of soldered, grooved or threaded. No flame on the job, and when the crimp is made correctly an "N" witness mark shows on the fitting so you can verify it visually.
3) Can the Nibco PFD-2000 be used on potable water, or is it HVAC only?
Both. The ductile iron body with molded-in EPDM seat and aluminum bronze disc is intended for hot and cold potable water as well as HVAC and vacuum service, and the valve is listed for commercial and residential plumbing, heating, HVAC, irrigation, industrial and automatic sprinkler systems.
4) What pressure and temperature can this press butterfly valve take?
200 psi (13.8 bar) non-shock cold working pressure, with a maximum service temperature of 250 degrees F. That covers typical chilled water, condenser water and hot water heating loops.
5) Should I pick the lever handle or the gear operator on a 4 inch butterfly valve?
The lever-lock gives you a quick quarter-turn, 90 degrees open to close, and is the usual choice where the valve is reachable and gets operated by hand. The gear operator takes more turns but reduces the effort, which is what most crews want on a 4 inch line or where the valve sits overhead and gets throttled rather than just shut off. Both are offered in all three sizes, 2-1/2, 3 and 4 inch.
6) Can I insulate the pipe without burying the valve handle?
Yes. The PFD-2000 has an extended neck that clears insulation up to 2 inches thick, so chilled water lines can be insulated continuously without the operator being swallowed by the jacket.
7) Which standards does the Nibco PFD-2000 butterfly valve meet?
It is built to MSS SP-67 and MSS SP-25, and to API Std 609. Those are the butterfly valve, marking, and lug/wafer valve standards engineers normally call out on a mechanical spec.
8) Is there a risk of leak paths through the stem on this butterfly valve?
The stem-to-disc connection uses an internal geometric drive rather than pins or bolts through the disc, so there is no through-fastener creating a leak path or turbulence in the waterway. The seat liner is molded into the ductile iron body rather than being a loose insert.
