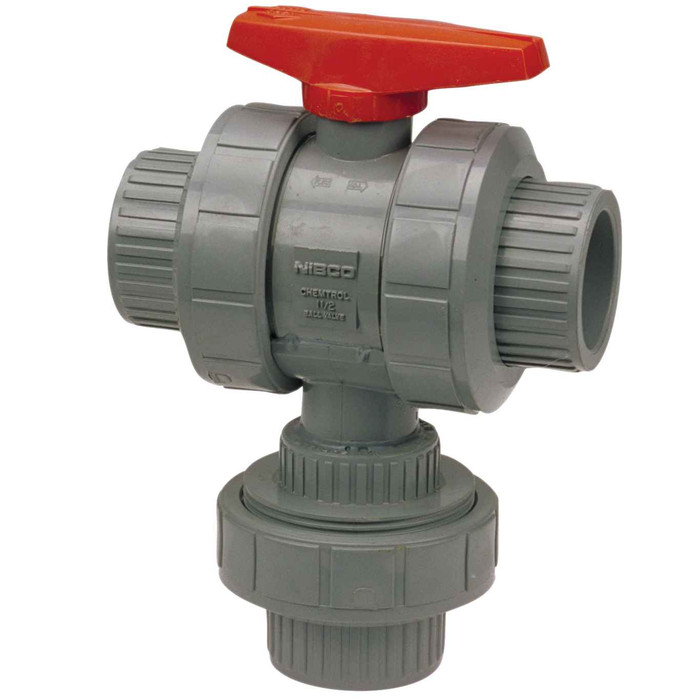

Nibco S51M3-E Ball Valve - Socket, True Union, 3-Way 3-Position Multi-Port, Corzan® CPVC Schedule 80, EPDM

Nibco S51M3-E Ball Valve - Socket, True Union, 3-Way 3-Position Multi-Port, Corzan® CPVC Schedule 80, EPDM

(No reviews yet) Write a Review

Model: MB783AA

In Stock (leaves warehouse same day if ordered before 3pm ET)

$507.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
The original Chemtrol® True Union design allows the valve and operational components to be conveniently lifted from the piping system for repair or replacement. No disruption or length change of connected piping is required. The valve can be easily joined with the socket end connections. Please refer to Chemtrol technical data sheets, valve selection guides and catalogs for engineering and installation information. Corzan® CPVC is the only CPVC material delivering market leading quality, reliability and performance for the most demanding applications. Chemtrol Corzan® CPVC valves are lightweight, easy to install, maintenance-free and will not rust, scale, pit or corrode. Choose Chemtrol® valves for the most reliable, versatile and economical valve option in commercial and industrial applications. Chemtrol® ball valves are backed by a 1-year limited warranty. Because Chemtrol® is a NIBCO brand the flow-control valves are unsurpassed in quality, performance and longevity.

  • Valve pressure rating 150 psi at 73-DegreeF water non-shock full-port
  • Maximum service temperature 210-DegreeF
  • True Union design
  • Multi-port
  • EPDM O-rings
  • Socket end connections
  • Orange handle
  • Do not use or test with compressed air or other gases
  • ASTM F1970
  • NSF/ANSI Standard 14
  • NSF/ANSI/CAN-61

POE Warning - Plastics Incompatibility

Manufacturer Resources

Spec Sheet

Product Specs

All Application(s):
Lead-Free
All Basic Material:
CPVC - Chlorinated Polyvinyl Chloride
Classification:
CPVC Multiport and Diverter Valves
End Connection:
Solvent Weld
Pipe Schedule:
80
Plastic End Connection Type:
S Socket
Product Group:
Valve
Seat Seal Material:
EPDM Rubber
System Use:
Commercial Plumbing, Industrial, Irrigation, Lead Free*
Type of Valve:
Ball Valve
Product Subgroup:
Unions
Product Type:
CPVC Multiport and Diverter Valves
Department:
Plumbing
Product Color:
Light Grey
Country Of Origin:
United States

Nibco MB783AA – Frequently Asked Questions

1) What pipe sizes does the Nibco S51M3-E 3-way CPVC ball valve come in?
The S51M3-E multi-port true union ball valve is offered in six socket sizes: 1/2, 3/4, 1, 1-1/4, 1-1/2 and 2 inch. Part numbers run MB783A6 (1/2"), MB783A8 (3/4"), MB783AA (1"), MB783AB (1-1/4"), MB783AC (1-1/2") and MB783AD (2").
2) How does the S51M3-E connect to CPVC pipe - is it threaded or solvent weld?
Solvent weld only. Both ends are S socket connections sized for Schedule 80 CPVC pipe, so you cement the valve in rather than screwing it on. If your system is threaded, you would need threaded adapters or a threaded-end version instead.
3) What does 3-way 3-position mean on this Chemtrol multi-port ball valve?
It is a diverting valve with three ports, and the handle stops at three working positions so you can route flow between ports rather than just open and shut one line. Typical use is switching a line between two branches, such as filter/bypass or tank-to-tank service in commercial and industrial piping. If you only need on/off on a single run, a standard two-way true union ball valve is the cheaper choice.
4) Can I service this valve without cutting the CPVC pipe?
Yes, that is the point of the Chemtrol true union body. The valve and its operating components lift out of the line for repair or replacement with no disruption and no length change to the connected piping, so the solvent welded socket stubs stay in place.
5) What pressure and temperature can the Nibco S51M3-E CPVC valve handle?
150 psi at 73 degrees F on water, non-shock, full port, with a maximum service temperature of 210 degrees F. Pressure rating drops as temperature climbs on CPVC, so size to the hottest condition your line sees.
6) Can I use this CPVC ball valve on compressed air?
No. Nibco states plainly not to use or test this valve with compressed air or other gases. It is a liquid service valve, and that includes pressure testing - use water or another liquid medium. Nibco also publishes a plastics incompatibility warning covering POE and similar oils, which is worth reading before putting it on any refrigeration or lubricant-bearing line.
7) Is the S51M3-E approved for potable water?
It is listed to NSF/ANSI Standard 14 and NSF/ANSI/CAN-61, and also carries ASTM F1970 for the multi-port design. It is flagged lead-free, with commercial plumbing among its listed uses alongside industrial and irrigation.
8) Are the seals EPDM or Viton on this Nibco multi-port valve, and does it matter?
The S51M3-E uses EPDM O-rings and EPDM rubber seats. EPDM suits water, many acids and bases, but it is not the choice for petroleum oils or hydrocarbons - those call for an FKM/Viton sealed version. Check the media before committing.
9) Will this valve match my grey Schedule 80 CPVC piping?
Yes. The body is Corzan CPVC in light grey, the standard Schedule 80 CPVC color, with an orange handle for visibility. Corzan CPVC will not rust, scale, pit or corrode, and the valve is light enough to hang on the line without extra support hardware in most runs.
