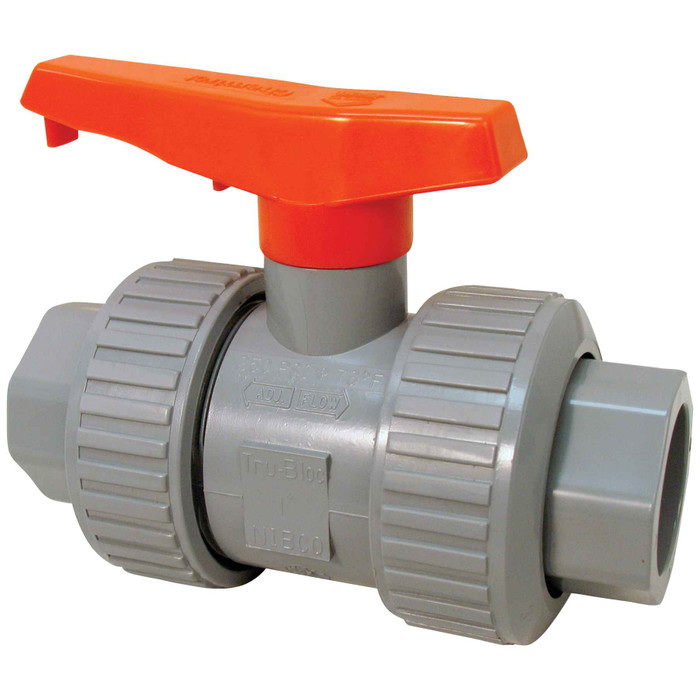

Nibco U51TB-E Ball Valve - Model D, Universal End, Tru-Bloc® True Union, Corzan® HP CPVC Schedule 80, EPDM

Nibco U51TB-E Ball Valve - Model D, Universal End, Tru-Bloc® True Union, Corzan® HP CPVC Schedule 80, EPDM

(No reviews yet) Write a Review

Model: MB932UA

In Stock (leaves warehouse same day if ordered before 3pm ET)

$205.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
The original Chemtrol® True Union design allows the valve and operational components to be conveniently lifted from the piping system for repair or replacement. Tru-Bloc® advances the True Union concept with the self-adjusting energizer O-ring. The valve can be easily joined with the universal socket and threaded end connections. Please refer to Chemtrol technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Corzan® CPVC Schedule 80 thermoplastics demonstrate excellent mechanical strength over broad temperature range, outstanding underground performance and superior hydraulics. Chemtrol Corzan® CPVC valves are lightweight, easy to install, maintenance-free and will not rust, scale, pit or corrode. Choose Chemtrol® valves for the most reliable, versatile and economical valve option in commercial and industrial applications. Chemtrol® ball valves are backed by a 1-year limited warranty. Because Chemtrol® is a NIBCO brand the flow-control valves are unsurpassed in quality, performance and longevity.

  • Valve pressure rating 250 psi at 73-DegreeF water non-shock full-port
  • Maximum service temperature 210-DegreeF
  • Full port
  • True Bloc® design
  • EPDM O-rings
  • Includes both socket and female NPT thread end connections
  • Orange handle
  • Do not use or test with compressed air or other gases
  • ASTM F1970
  • NSF/ANSI Standard 14
  • NSF/ANSI/CAN-61

Manufacturer Resources

Spec Sheet

Product Specs

All Application(s):
Lead-Free
All Basic Material:
CPVC - Chlorinated Polyvinyl Chloride
Classification:
CPVC Sch 80 Ball Valves
End Connection:
Threaded
Pipe Schedule:
80
Plastic End Connection Type:
Universal (S & F)
Product Group:
Valve
Seat Seal Material:
EPDM Rubber
System Use:
Commercial Plumbing, Industrial, Irrigation, Lead Free*
Type of Valve:
Ball Valve
Product Subgroup:
Unions
Product Type:
CPVC Sch 80 Ball Valves
Department:
Plumbing
Product Color:
Light Grey
Country Of Origin:
United States

Nibco MB932UA – Frequently Asked Questions

1) Does the Nibco Chemtrol U51TB-E ball valve come with socket ends or threaded ends?
Both. The U51TB-E ships with universal end connections, meaning socket and female NPT threaded end adapters are included in the box. You pick which pair you solvent weld or thread on at install, so one valve covers either piping method without a second order.
2) What pressure and temperature can this Corzan CPVC ball valve handle?
250 psi at 73 F with non-shock water, full port, and a maximum service temperature of 210 F. That temperature headroom is the reason to use CPVC rather than standard PVC on hot water or heated process lines. One hard limit: do not use or test the valve with compressed air or other gases.
3) Can I service this valve without cutting the CPVC pipe out?
Yes. The Chemtrol True Union design lets the valve body and operating components be lifted out of the line for repair or replacement while the end connections stay glued or threaded in place. The Tru-Bloc version adds a self-adjusting energizer O-ring, so seal take-up happens without a manual adjustment step.
4) Is this CPVC ball valve approved for potable water?
It carries NSF/ANSI Standard 14 and NSF/ANSI/CAN 61 listings and is certified to ASTM F1970. It is also flagged lead-free. Those are the listings a plumbing inspector looks for on a potable water line, and they are why this valve gets specified in commercial plumbing as well as industrial and irrigation service.
5) What pipe sizes does the U51TB-E CPVC true union ball valve come in?
Two sizes, 1 inch and 2 inch. The 1 inch is Nibco part MB932UA and the 2 inch is MB932UD. Both are Schedule 80 CPVC and full port, so the bore matches the nominal pipe size and there is no flow restriction through the valve.
6) Is the EPDM seal the right choice, or should I be looking at a different elastomer?
The U51TB-E uses EPDM O-rings and EPDM seats. EPDM suits water, many dilute acids and bases, and is the common pick for potable and general commercial water service. It is not the choice for petroleum oils or hydrocarbon-based media; for those you want the FKM/Viton seal version of the same valve. Check the Chemtrol chemical resistance guide against your specific media before committing.
7) What does the valve look like in the field, and will it match my existing CPVC run?
The body is light grey CPVC with an orange handle, which is the standard Chemtrol look and stands out for quick identification in a valve gang. Since the body is Corzan Schedule 80 CPVC, it solvent welds to standard Schedule 80 CPVC pipe and fittings of the same size using the correct CPVC cement and primer.
8) Will a CPVC ball valve corrode or scale in a hard water or chemical line?
No. Corzan CPVC will not rust, scale, pit or corrode, which is the main reason it gets used in place of metal ball valves on chemical feed, corrosive water and irrigation lines. It is also lightweight and maintenance free in normal service, so it goes in without pipe support changes that a bronze or iron valve of the same size would drive.
