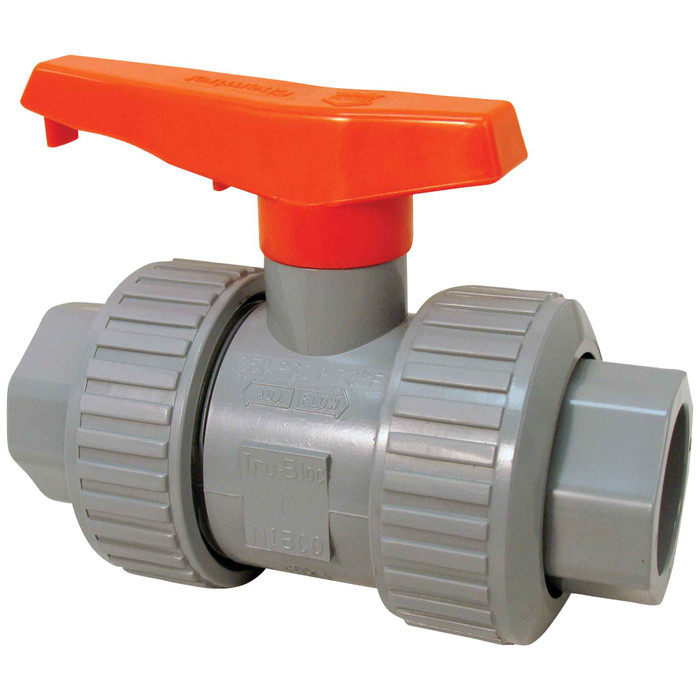

Nibco U51TB-V-BBV Bleach Ball Valve - Model D, Universal Ends, Tru-Bloc® True Union, Vented Ball, Corzan® HP CPVC Schedule 80, FKM

Nibco U51TB-V-BBV Bleach Ball Valve - Model D, Universal Ends, Tru-Bloc® True Union, Vented Ball, Corzan® HP CPVC Schedule 80, FKM

(No reviews yet) Write a Review

Model: MB936UA

In Stock (leaves warehouse same day if ordered before 3pm ET)

$108.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
All inner surfaces of the Tru-Bloc® bleach ball valve are kept constantly wetted and vented to the upstream side when the valve is in the closed position, eliminating the conditions required for gas accumulation and caustic crystallization in the body cavity. The Tru-Bloc® valve is engineered with a self-adjusting seat and upstream and downstream blocking capability to stop flow when an alternate union is removed for servicing the piping system. The valve can be easily joined with the universal socket and threaded end connections. Please refer to Chemtrol technical data sheets, valve selection guides and catalogs for engineering and installation information. Corzan® CPVC Schedule 80 thermoplastics demonstrate excellent mechanical strength over broad temperature range, outstanding underground performance and superior hydraulics. Chemtrol Corzan® CPVC valves are lightweight, easy to install, maintenance-free and will not rust, scale, pit or corrode. Choose Chemtrol® valves for the most reliable, versatile and economical valve option in commercial and industrial applications. Chemtrol® ball valves are backed by a 1-year limited warranty. Because Chemtrol® is a NIBCO brand the flow-control valves are unsurpassed in quality, performance and longevity.

  • Valve pressure rating 250 psi at 73-DegreeF water non-shock full-port
  • True Bloc® design
  • Vented ball
  • FKM O-ring
  • Includes both socket and female NPT thread end connections
  • Orange handle
  • Do not use or test with compressed air or other gases
  • ASTM F1970
  • NSF/ANSI Standard 14
  • NSF/ANSI/CAN-61

Manufacturer Resources

Product Specs

All Application(s):
Lead-Free
All Basic Material:
CPVC - Chlorinated Polyvinyl Chloride
Classification:
CPVC Sch 80 Ball Valves
End Connection:
Threaded
Pipe Schedule:
80
Plastic End Connection Type:
Universal (S & F)
Product Group:
Valve
Seat Seal Material:
FKM Fluoroelastomer
System Use:
Commercial Plumbing, Industrial, Irrigation, Lead Free*
Type of Valve:
Ball Valve
Product Subgroup:
Unions
Product Type:
CPVC Sch 80 Ball Valves
Department:
Plumbing
Product Color:
Light Grey

Nibco MB936UA – Frequently Asked Questions

1) Will the Nibco U51TB-V-BBV bleach ball valve connect to socket CPVC pipe or do I need threaded fittings?
Either. The U51TB-V-BBV ships with universal ends, meaning both socket and female NPT threaded end connections are included, so you pick the joint at install time. That matters on a bleach line retrofit where the existing run is solvent welded on one side and threaded into a pump or strainer on the other. Both sizes offered, 1 inch and 2 inch, are universal end.
2) Why use a vented ball valve on a sodium hypochlorite line instead of a standard true union ball valve?
Bleach off-gasses. In a standard ball valve the closed body cavity traps liquid, gas accumulates, and caustic crystals form, which is what seizes the ball and blows the valve apart. The Tru-Bloc bleach valve vents the ball to the upstream side in the closed position and keeps all inner surfaces wetted, so the conditions for gas accumulation and caustic crystallization in the body cavity are removed. On a hypochlorite feed line that is the difference between a valve you can operate in two years and one you cannot.
3) Can I break the union on a Nibco Tru-Bloc valve to service the pump without draining the whole line?
That is what the Tru-Bloc design is for. The valve has a self-adjusting seat with upstream and downstream blocking capability, so it stops flow when an alternate union is removed for servicing the piping system. You can pull the downstream equipment with the valve closed and the line still holds.
4) Can I air test a CPVC bleach ball valve after installation?
No. Do not use or test the U51TB-V-BBV with compressed air or other gases. Hydrostatic test only. A thermoplastic valve failing under stored gas energy is a shrapnel event, not a leak.
5) Is the Nibco U51TB-V-BBV approved for potable water systems?
It carries NSF/ANSI Standard 14 and NSF/ANSI/CAN 61, and it is listed lead-free. It also meets ASTM F1970, the standard for thermoplastic valves in pressure applications. System uses named are commercial plumbing, industrial, irrigation and lead-free service.
6) What is the pressure rating on the Nibco U51TB-V-BBV CPVC ball valve?
250 psi at 73 degrees F on water, non-shock, full port. Full port means the bore matches the pipe ID, so it does not throttle a metering or chemical feed line. CPVC pressure ratings fall off as temperature climbs, so the 250 psi figure is the 73 degree F number, not a hot-line number.
7) What seals are in the Nibco bleach valve and will they hold up to hypochlorite?
FKM fluoroelastomer, used for both the seat seal and the O-ring. FKM is the elastomer specified for oxidizer service, which is why this valve carries it rather than EPDM. If your line is chemically mixed and something in it is incompatible with FKM, that is the spec to check before you order.
8) Which Nibco part number do I order for a 1 inch versus a 2 inch bleach ball valve?
The 1 inch is MB936UA and the 2 inch is MB936UD. Both are the Model D universal-end Tru-Bloc vented bleach valve in Corzan HP CPVC Sch 80 with FKM seals, so the only thing changing between them is line size.
9) Is Corzan CPVC Schedule 80 the right body material for a buried or corrosive chemical line?
Corzan CPVC Schedule 80 is chosen where metal would fail: it will not rust, scale, pit or corrode, holds mechanical strength across a broad temperature range and performs underground. Schedule 80 is the heavy wall, which is why this is the industrial and chemical-service body rather than a Sch 40 irrigation part. It is also light enough to hang without the support metal needs.
10) How do I tell the bleach valve apart from the other CPVC valves on a chemical skid?
By the handle. The body is light grey CPVC like the rest of the run, but the U51TB-V-BBV carries an orange handle, which is how a facility crew spots the hypochlorite service valve without reading the tag.
