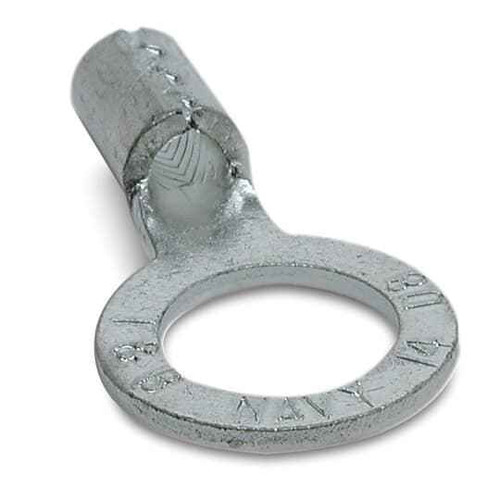

NON-INS BS RING TERM 6 5/16
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 6 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon E72 – Frequently Asked Questions
1) Is the Sta-Kon E72 insulated, and does it need extra insulation after crimping?
It is a non-insulated ring terminal, so the crimp barrel is bare metal. On any live connection you finish it with heat shrink or tape to cover the barrel and the exposed strands. The uninsulated barrel is also why it suits tight lug stacks and high-temperature spots where a nylon or vinyl sleeve would be in the way.
2) What voltage can I use a Sta-Kon E72 ring terminal on?
Rated 600 V, which covers standard commercial branch circuits, panel and motor terminations, and control wiring. It also carries UL file E9809, which matters if an inspector or a spec sheet calls for listed terminations.
3) Is the Sta-Kon E72 terminal copper or aluminum?
The barrel and tongue are copper, metallic finish. Copper terminals are for copper conductors; if you are terminating aluminum feeders you need an AL9CU or AL-rated lug instead, not this one.
4) Do I need a special crimper for a 6 AWG non-insulated ring terminal like the E72?
Yes. At 6 AWG this is a heavy barrel, past the range of a hand-squeeze insulated-terminal plier. You want a non-insulated die crimper or a hydraulic/ratchet tool with a 6 AWG die. A pliers-style crimp on a barrel this size is the most common cause of a loose, heating termination.
5) Where is the Sta-Kon E72 made? We have domestic sourcing requirements.
Country of origin is the United States, which is what a government, institutional, or Buy American job needs documented on electrical terminations.
