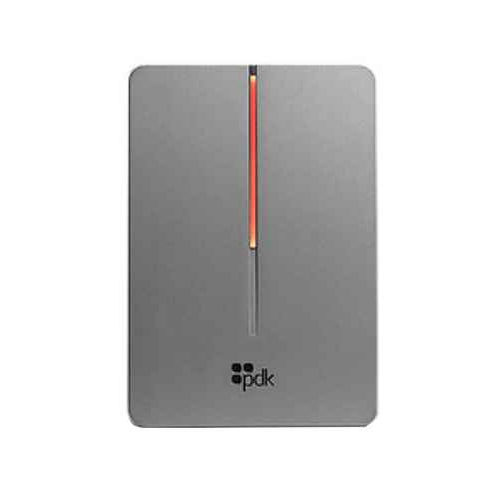

Prodatakey RDRG Single Gang Reader HID Compatible, Wiegand

Prodatakey RDRG Single Gang Reader HID Compatible, Wiegand

(No reviews yet) Write a Review

Model: RDRG

In Stock (leaves warehouse same day if ordered before 3pm ET)

$224.00
$153.77
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Prodatakey RDRG Single Gang Reader HID Compatible, Wiegand

Enjoy the flexibility of using traditional readers that fit any application. The mullion style reader is ideal for door frame applications, or use the single gang reader for wall-mounting applications.

Features:

  • Our standard readers use 125 kHz, 26 bit Weigand communication protocol, combining critical security standards with access credential compatibility.
  • The mullion and single-gang standard reader are made with secure, potted electronics, making them perfect for both indoor and outdoor applications.
  • Powered by pdk.io, the only true cloud access solution. Take advantage of real-time updates, cloud backup, 24-hour support, and more.



Specifications:

  • Input: 125 kHz
  • Output: 26- to 37-bit Wiegand protocol
  • Environmental:
    • Temperature: -4° ~ +140° F /-20° ~ +60° C
    • Humidity: 0 - 95% relative humidity non-condensing
  • Weight:
    • Mullion: 0.25 lbs (4 oz)
    • Single Gang: 0.38 lbs (6 oz)
  • Power: 12V DC from the controller board. Max Amperage: 30mA

Manufacturer Resources

Product Specs

Product Subgroup:
Access Management
Product Group:
Door Controller
Subcategory:
Access Controls
Series:
R Series
Product Type:
Access Controls
Product Model:
Door Controller
Product Voltage:
12V DC
Product Category:
Access Controls
Department:
Door Hardware

Prodatakey RDRG – Frequently Asked Questions

1) Can the RDRG reader be mounted outside on an exterior door?
Yes. The single gang reader uses potted electronics and is rated from -4 to +140 F (-20 to +60 C) at 0 to 95 percent relative humidity non-condensing, which covers exterior mounting in most North American climates. Potting is what makes that possible, the board is sealed rather than sitting open in the housing.
2) What power does the Prodatakey RDRG reader need, and do I need a separate power supply for it?
No separate supply. The RDRG runs on 12V DC fed from the controller board and draws a maximum of 30mA, so it powers off the same run that carries the Wiegand data back to the controller. When you are sizing a panel supply, budget 30mA per reader.
3) Should I use a single gang reader or a mullion reader at my door?
It comes down to what you are mounting to. The single gang RDRG is sized for a wall box beside the opening, which is the normal choice on drywall or block next to a door. A mullion reader is the narrow version made to sit on an aluminum door frame or mullion where there is no wall real estate. Same 125 kHz read and same Wiegand output either way, so the decision is purely the mounting surface.
4) Can I use the Prodatakey RDRG with a non-Prodatakey access control panel?
The reader talks 26 to 37 bit Wiegand, which is the common wiring standard for access control panels, so it interfaces with any panel that accepts a Wiegand reader input at 12V DC. Full cloud management (real-time updates, cloud backup) comes from pairing it with a Prodatakey controller on pdk.io. Wired to a third party panel you get the credential read, not the pdk.io management layer.
5) What bit format do Prodatakey R Series standard readers output?
The standard R Series reader ships reading 125 kHz, 26 bit Wiegand, and the output range spans 26 to 37 bit Wiegand. If your existing card population is a 26 bit standard format, it drops straight in. If your facility uses a longer proprietary format, confirm the bit length falls inside 26 to 37 before you standardize a building on it.
6) What is the manufacturer part number for the Prodatakey RDRG reader?
The RDRG single gang reader carries MPN AHDS30RVFD. That is the number to quote when you are matching readers across a facility so every opening gets the same head, same read range, same Wiegand format.
