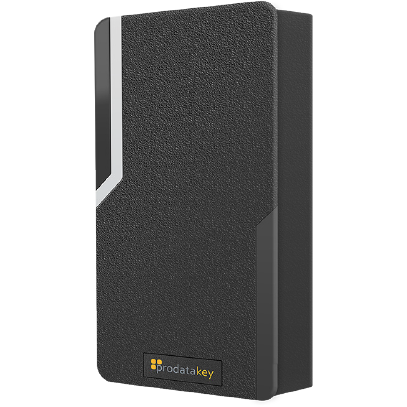

Prodatakey Ruggedized Single Gang Reader HID Compatibility

Prodatakey Ruggedized Single Gang Reader HID Compatibility

(No reviews yet) Write a Review

Model: RDRGRK

In Stock (leaves warehouse same day if ordered before 3pm ET)

$436.00
$288.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Prodatakey Ruggedized Single Gang Reader HID Compatibility

Rugged readers are a great fit for indoor/outdoor applications and offers users the flexibility of using everyday proximity credentials or pin numbers to gain access to secure areas. Easily add an extra layer of security with two-factor authentication on keypad readers, requiring users to present proximity credentials and enter a pin number to gain access.

Features:

  • Constructed with a stylish yet sturdy aluminum alloy housing, our ruggedized readers are resistant to damage from dust, rain, and vandalism.
  • Industrial yet modern, the rugged readers were designed for durable applications. Their sand-blasted surface adds to the aesthetic of any building or workspace.
  • Powered by PDK.io, the only true cloud access solution. Take advantage of real-time updates, cloud backup, 24-hour support, and more (subscription required).



Specifications:

  • Input: 125 kHz
  • Output: 26 bit Wiegand protocol; 8-bit burst pin mode
  • Temperature: -4°F ~ 140°F (-20°C ~ 60°C)
  • Operating Humidity: 0 - 95%
  • Dust & Waterproof Rating: IP68
  • Impact Protection Rating: IK10
  • Power Voltage: DC12V±10%
  • Amperage Max: 45 mA
  • Dimensions: 5.7 x 3.3 x 1”

Manufacturer Resources

Product Specs

Product Subgroup:
Access Management
Product Group:
Door Controller
Subcategory:
Access Controls
Product Type:
Access Controls
Product Model:
Door Controller
Product Voltage:
12V DC
Product Size:
5.7 x 3.3 x 1”
Product Category:
Access Controls
Department:
Door Hardware

Prodatakey RDRGRK – Frequently Asked Questions

1) Will the Prodatakey ruggedized single gang reader work with my existing HID prox cards?
The Prodatakey ruggedized single gang reader reads 125 kHz credentials, which is the frequency HID prox cards operate on, so everyday proximity credentials already issued in a building will read at it. Output is 26 bit Wiegand, plus 8-bit burst for pin mode.
2) Can this Prodatakey reader be mounted outside in the weather?
Outdoor mounting is what the ruggedized reader is built for. It carries an IP68 dust and water rating, an IK10 impact rating, and an aluminum alloy housing, and it runs from -4F to 140F (-20C to 60C) at 0 to 95% humidity. That covers exposed exterior doors, gates, and parking entries as well as wash-down or dusty interior areas.
3) Will the Prodatakey rugged reader fit a standard single gang box?
It is a single gang form factor measuring 5.7 x 3.3 x 1 inches, so it covers a single gang electrical box or mounts flat to a mullion or wall surface of at least that footprint. Depth off the surface is the 1 inch dimension, worth checking against a narrow stile or door frame before you cut in.
4) What power supply do I need for the Prodatakey ruggedized reader?
12V DC, with a 10% tolerance, and it draws a maximum of 45 mA. That is a small enough load that a typical access control power supply or the reader port on a PDK door controller will carry several of them, so size the supply by the strikes and mags on the job rather than by the readers.
5) Will this reader work with 13.56 MHz smart cards or mobile credentials?
No. The rugged single gang reader is a 125 kHz proximity reader, so it reads prox cards and fobs at that frequency only. If a facility has moved to 13.56 MHz smart credentials or is issuing mobile credentials, this is the wrong reader and you need a high frequency model instead.
6) Does this Prodatakey reader have a keypad for PIN entry?
Yes, and that is the reason to pick it over a card-only reader. It accepts a PIN as well as a proximity credential, so you can run card-only, PIN-only, or two-factor where a user has to present the credential and then enter the PIN. The PIN digits go back to the controller as 8-bit burst.
7) Can I wire the Prodatakey rugged reader into a non-PDK access control panel?
Its output is 26 bit Wiegand, the common format nearly every access panel accepts, so the reader wires to a third party Wiegand input the same way it wires to a PDK controller. Note the PIN side reports as 8-bit burst, so a panel that expects 4-bit or per-key Wiegand keypad data will not read the PINs correctly even though the card reads fine.
8) Does the Prodatakey reader need a cloud subscription to work?
The reader itself is a Wiegand device and does not talk to the cloud on its own. Management, real-time updates, cloud backup and support come through PDK.io, which is a subscription, and that runs at the controller level rather than at the reader. If you are wiring these to a third party Wiegand panel, no PDK subscription is involved.
9) Is this reader tough enough for a school or apartment entry where it might get abused?
IK10 is the top impact rating in the IK scale, and paired with the IP68 sealing and a sand-blasted aluminum alloy housing it is the version to use at a student entrance, a loading dock, a parking gate, or any door where a plastic reader gets broken off the wall. For a protected interior office door you do not need this level of housing.
10) Which Prodatakey rugged reader part number do I order?
The ruggedized single gang keypad reader is Prodatakey model RDRGRK, MPN AHDS30RVFD. One configuration, so there is no finish or handing to specify, just the quantity of doors.
