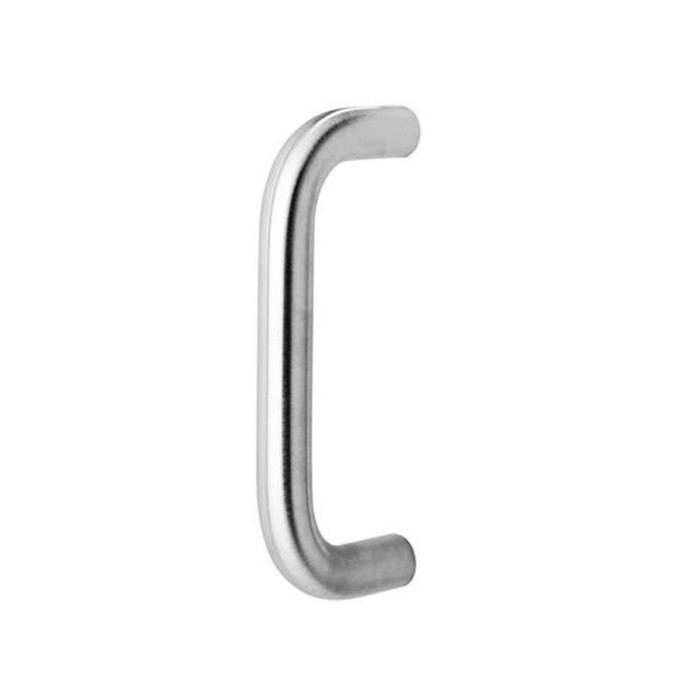

ROCKWOOD 110 Door Pulls
Material: Brass;
Finishes: US26D;
Fastner: 1/4 - 20 x 2-1/4" thru bolt & finish washer (standard 1-3/4" door);
Options:
- Back to back mounting in pairs — use BTB suffix and mounting type number (112BTB5)
- Concealed mounting single pulls — use C suffix and mounting type number (112C6)
- Advise if door thickness is other than 1-3/4"
- Heavy duty versions of most fastening types available – use suffix HD to fastening type number (112BTB5HD)
- See page B13 for mounting selection (standard duty 1/4 - 20)
- 2-1/2" Barrier Free clearance — use BF prefix (BF110)
- See page B27 for mounting selection (standard duty 1/4 - 20)
- Use Y prefix (YBF16) when ordering pulls with base plates, Y plate diameter is 1-1/4"; recommended for use on wood and glass doors.
ROCKWOOD OVERVIEW
Rockwood products are normally used on all types of institutional buildings, offices, retail, educational, detention, sports facilities, hotel and restaurant, and finer residences.
ENVIRONMENTAL MANAGEMENT
ASSA ABLOY is commited to protecting the quality of the environment as well as the health and safety of its employees, customers, and the community. Please see our Environmental Health and Safety Policy for details on how we are dedicated to this commitment.
RESOURCES & DOWNLOADS
Manufacturer Resources
Product Specs
- Product Group:
- Door Trim and Accessories
- Clearance:
- 2"
- Fasteners:
- 1/4 - 20 x 2-1/4" thru bolt & finish washer (standard 1-3/4" door)
- Subcategory:
- Push and Pull Plates, Door Pulls
- Product Subgroup:
- Door Pulls, Push and Pull Plates
- Product Type:
- Door Pulls
- ANSI/BHMA:
- ANSI A156.6, J401
- Commercial/Residential:
- Commercial
- Product Model:
- 110
- (CTC) Center-to-Center:
- 8"
- Product Projection:
- 3-1/2"
- Product Category:
- Door Trim and Accessories
- Product Substrate:
- Stainless Steel
- Department:
- Door Hardware
Rockwood 110-28 – Frequently Asked Questions
1) Can I use the Rockwood 110 pull on a glass or wood door?
Not as-is. For wood and glass doors Rockwood recommends ordering the pull with base plates, which you get with the Y prefix; the Y plate is 1-1/4 inches in diameter and spreads the load at the fastener rather than concentrating it on the bare panel. The plain 110 with 1/4-20 thru bolts is intended for a standard door face.
2) How much hand clearance does the Rockwood 110 pull give, and is 8 inch CTC enough grip?
The 110 is an 8 inch center-to-center straight pull on 1 inch round bar, with 2 inches of clearance between the bar and the door face and a 3-1/2 inch total projection off the door. Two inches of knuckle room is fine for a bare hand on an office or retail entrance. If your users are wearing gloves, carrying, or you want more room to grab, Rockwood builds the same pull with 2-1/2 inch clearance under the BF prefix (BF110).
3) Does the Rockwood 110 meet ANSI/BHMA for commercial door pulls?
The 110 is certified to ANSI A156.6, type J401, and it is a commercial-duty pull. That is the door trim standard institutional and MRO specs call out, so it answers the line item on most school, healthcare, and government hardware schedules without a substitution request.
4) How do I order the Rockwood 110 as a back-to-back pair instead of a single pull?
Back-to-back mounting is a suffix, not a separate product. Add BTB plus the mounting type number to the model (Rockwood's own example is 112BTB5). For a single pull with concealed fasteners, use the C suffix plus mounting type (112C6). Heavy duty versions of most fastening types add HD on the end (112BTB5HD). Standard duty mounting is the 1/4-20 hardware.
5) What is the closest equivalent to the Rockwood 110 straight door pull from another manufacturer?
The Rockwood 110 is a straight pull on 1 inch diameter bar with 8 inch center-to-center spacing and a 2 inch clearance, through bolted with 1/4-20 x 2-1/4 inch bolts and finish washers for a standard 1-3/4 inch door. Two straight pulls sit in the same shape: the ABH AB3300 is a straight flat end pull handle at 1.00 inch diameter for commercial doors, and the Ives 8103HD is a heavy duty straight pull in 1 inch round bar with through bolt mounting. Both match the 110 on straight profile, 1 inch bar and through bolt attachment, so either drops into the same drilled pattern when the hole spacing is specified to match.
6) The 2 inch clearance on a 1 inch straight pull is too tight for gloved hands. What offset pull should I use instead?
The Rockwood 110 is a straight pull with 2 inch clearance, which is the knuckle room between the bar and the door face. Where a crew works in gloves and wants a deeper grip and an offset shape, the ABH AB3310 is an offset flat end door pull handle for surface mount commercial use, the ABH AB3330 is an offset round end pull with custom length options, and the Ives 8169 is a C style offset solid pull on 1 inch diameter bar with heavy duty mounting. The Ives 8145EZHD is a 45 degree offset pull with heavy duty mounting hardware, described as ADA compliant in the EZ series, which is the one to look at when the opening has to meet accessibility requirements.
7) Will a Deltana OHP620 work as a substitute for the Rockwood 110 on a 1-3/4 inch commercial door?
No. The Rockwood 110 is fastened for a standard 1-3/4 inch door with 1/4-20 x 2-1/4 inch thru bolts and finish washers, and it is a commercial specification pull. The Deltana OHP620 off-set handle pull back-to-back set carries a door thickness range of 1-1/8 inch to 1-3/8 inch, so its through bolts are sized for a thinner leaf and will not reach across a 1-3/4 inch door. Use the OHP620 on the thinner doors it is dimensioned for and stay with a 1-3/4 inch through bolt pull on the commercial opening.
8) What finishes does the Rockwood 110 straight pull come in?
Three: satin stainless steel, dark bronze, and clear anodized aluminum. Satin stainless is the one that matches most commercial push plates and exit device trim already in the building; dark bronze is the match for bronze storefront and aluminum entrances, and clear anodized lines up with mill-finish aluminum framing.
9) Straight pull or offset pull for a commercial entrance?
The Rockwood 110 is a straight pull: the 1 inch bar runs parallel to the door with 2 inches of clearance behind it, which suits a door where the user grabs and pulls square. An offset pull angles the grip away from the door face and gives a more natural wrist position on a heavy door, and is often the choice where an ADA-style forearm pull is wanted. If that is your opening, look at the Ives 8145 45 degree offset pull or the Ives 8169 C style offset pull, both 1 inch diameter heavy duty.
10) What is a straight 1 inch commercial door pull equivalent to the Rockwood 110?
The closest cross-brand equivalents are the Ives 8103HD, a 1 inch round straight pull with through-bolt mounting in heavy duty, and the ABH AB3300, a 1 inch diameter straight flat end pull. If you want a slightly slimmer bar, the ABH AB7200 is solid stainless at 7/8 inch diameter with through-bolt mounting. All of those mount the same way the 110 does, through the door.
11) Can I standardize the Rockwood 110 across an entire building?
Yes, and that is what the model is built for. The 110 is a commercial pull certified to ANSI A156.6 J401, and the same 8 inch center-to-center bar can be ordered single, back-to-back with the BTB suffix, with concealed fasteners with the C suffix, in a heavy duty fastening with HD, or with the 2-1/2 inch barrier free clearance as the BF110. That means one bolt pattern and one look across offices, restrooms, and stairwells, with the mounting changed per opening instead of the pull.
12) Is the standard Rockwood 110 strong enough for a high traffic entrance, or do I need the heavy duty version?
Standard duty on the 110 is 1/4-20 thru bolt mounting, which is a through-the-door fastening rather than surface screws, so it handles normal commercial entrance traffic. Where the door gets pulled hard and constantly, gyms, schools, and service corridors, Rockwood offers heavy duty versions of most fastening types with an HD suffix on the fastening type number. If you would rather move brands, the Ives 8103HD is a 1 inch round straight pull rated heavy duty.
13) How far does the Rockwood 110 stick out from the door, and will it clear a wall or adjacent door?
Total projection is 3-1/2 inches off the door face, with 2 inches of that being the clear grip space behind the bar. On a pair of doors or a door hung close to a return wall, check that 3-1/2 inches against your swing so the pull does not strike the frame, the adjacent leaf, or a sidelite mullion when the door opens.
14) The push side of the door needs hardware too. What goes with a Rockwood 110 pull?
The Rockwood 110 is the pull half of a push-pull opening, a straight bar at 8 inch center-to-center on the pull side. The plate for the opposite face comes from the push plate family: the Trimco 1001-1 is a heavy duty push plate at 3 inch by 12 inch, the Trimco 1041 is a half-round push plate at 8 inch by 16 inch, and the Trimco 1070 series classic push/pull plates run 3-1/2 inch by 15 inch. Pick the plate size against the door stile width and the rail the crew is mounting to, and match the finish across the two faces.
15) I need a longer pull than 8 inches for a glass or full-height entry door. What are the options?
The Rockwood 110 is dimensioned at 8 inch center-to-center. For a longer bar on a tall entrance leaf, the Deltana SSP1210 is a 12 inch contemporary pull for single side mounting, the Deltana SSPOBB24 is a 24 inch back-to-back modern offset pull set, and the Deltana SSPORBB24 is a 24 inch back-to-back round offset pull set. The two 24 inch sets come as back-to-back pairs, which is the configuration used when both faces of the leaf get a pull, while the SSP1210 is the single side option. The ABH AB3330 offset round end pull also offers custom length options when a specific bar length is called out.
16) For a high traffic restroom door, is the Rockwood 110 the right pull or is there a better choice?
The Rockwood 110 is a commercial straight pull to ANSI A156.6 J401 with stainless steel substrate, and it serves general traffic openings. On a restroom door specifically, the Trimco 1035 Ultimate Restroom Pull is the purpose-built alternative in a heavy duty 1035 series, designed for that opening rather than adapted to it. Facilities standardizing a whole floor often run the 110 on corridor and office doors and the 1035 on the restrooms, so the hardware on each door type matches its use.
17) Is the Rockwood 110 pull brass or stainless steel?
The substrate on the 110 is stainless steel. Rockwood builds the same pull profile in brass as well, and brass is what carries the US26D finish code shown on the standard part. For exterior entrances, coastal sites, or high-cleaning environments like healthcare and food service, the stainless bar is the one to specify.
