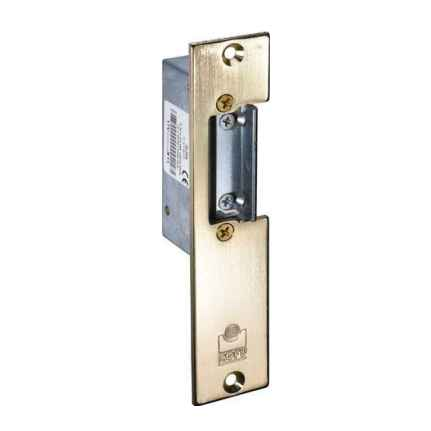

ROFU 1701 Electric Strike, Fail Secure, Faceplate Size 11/4" x 5-7/8"

Yes. The 1701 is fail secure, so the keeper stays locked when power drops and the door remains secured. Free egress still comes from turning the inside lever or knob, since the lock's own latch retracts mechanically. If your opening needs the strike to release on power loss, or you want that choice made in the field, the Hager 2925 and 2928 are field reversible fail safe/fail secure.

Four voltage builds: 8-16 VAC/3-6 VDC, 12 VAC/VDC, 24 VAC/VDC, and 24 VDC only. The voltage is fixed at the time of order, not switchable in the field, so match it to the access control panel or transformer you already have on the job before you pick. Most card reader panels put out 12 or 24 VDC; the 8-16 VAC build is the one that works off an existing doorbell transformer.

The ROFU 1701 has a steel faceplate described as suitable for wood frames. For an aluminum jamb, the Adams Rite 7100 Series is built for aluminum jambs with a flat 1-1/4 inch by 4-7/8 inch faceplate, as is the Adams Rite 7160 with the same 1-1/4 inch by 4-7/8 inch faceplate. For hollow metal and wood jambs, Adams Rite offers the 7170 with that same faceplate size.

The ROFU 1701 is a fail-secure strike for wood frames and is not offered with a fire rating. For a labeled opening, fire-rated options include the Von Duprin 6400 32D, a Grade 1 modular strike for mortise or cylindrical locks with a 3-hour UL 10C rating in fail-secure, the Von Duprin 4211 32D Grade 1 strike for cylindrical locks with 12/24 VDC field-selectable voltage, and the Hager 2930 Grade 1 strike for cylindrical and mortise locks with 12/24VDC dual voltage.

The ROFU 1701 uses a 1-1/4 inch by 5-7/8 inch faceplate with fail-secure operation. Two Trine strikes share that same faceplate footprint: the Trine 001 Series is a light commercial fail-secure strike with a 5-7/8 inch by 1-1/4 inch faceplate, and the Trine 2001 runs 16-24VAC/DC fail-secure with a 5-7/8 inch by 1-1/4 inch faceplate and accepts up to a 5/8 inch throw. If the frame is already cut for that plate, either drops into the same prep.

The ROFU 1701 is a fail-secure strike with an adjustable keeper and is offered in 8-16 VAC/3-6 VDC, 12 VAC/VDC, 24 VAC/VDC and 24 VDC. For monitored openings, the Dortronics 3300 Series includes a latch bolt sensing switch at 12/24VDC with a strike plate for ANSI prep at 4-7/8 by 1-1/4 inch, the Hager 2945 adds a latchbolt monitor, and the Camden CX-ED1799L-8 is a Grade 1 dual monitor strike supplied with eight faceplates.

Two entries in the electric strike range are not complete strikes: HES 1500 Electric Strike Accessories and HES 1600 Electric Strike Accessories are accessory items for those series, not a replacement body for a ROFU 1701 opening. The HES Folger Adam 310-4-2 is a complete strike pac built for surface vertical rods, and the SDC 30-4 is a rim mount unit for a 3/4 inch Pullman latchbolt - both are exit device applications rather than a frame-mounted strike for a wood frame like the 1701.

No. The 1701 is a frame-mounted strike for a standard latchbolt in a wood frame, not a gate or rim/vertical rod application. For an outdoor gate, the Camden CX-ED1959 Series is outdoor rated. For surface vertical rods on a pair, the HES Folger Adam 310-4-2 is a complete strike pac built for that, and the Rockwood double door strike with a 3/4 keeper covers double door openings.

The 1701 is classed for commercial use, but it is a standard duty fail secure strike. For a busy main entrance or an abused door, a heavy duty Grade 1 strike is the safer specification: the Alarm Controls AES-100, the Locknetics MDS100 or MS100, or the Von Duprin 4211 all carry heavy duty or Grade 1 designations. The 1701 suits interior offices, storerooms, and lower traffic wood frame openings.

The ROFU 1701 is a fail-secure strike with an adjustable keeper and steel faceplate. On the value end, the RCI 15BS is an economy fail-secure strike for a special offset latch entry, the SDC 15 Series is a value strike for a 5/8 inch latchbolt with 12/24 VDC operation, and the SDC 25 Series is a value strike built for 1/2 inch latchbolt compatibility. The Trine 001 Series is a light commercial fail-secure strike.

Two: 626 satin chrome and 606 satin brass. Both are offered across all four voltage builds, so you can match the strike to existing satin chrome or brass trim on the frame without giving up your voltage choice.
