Schlage L9044 EE214 - Privacy ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,411.00
$987.70

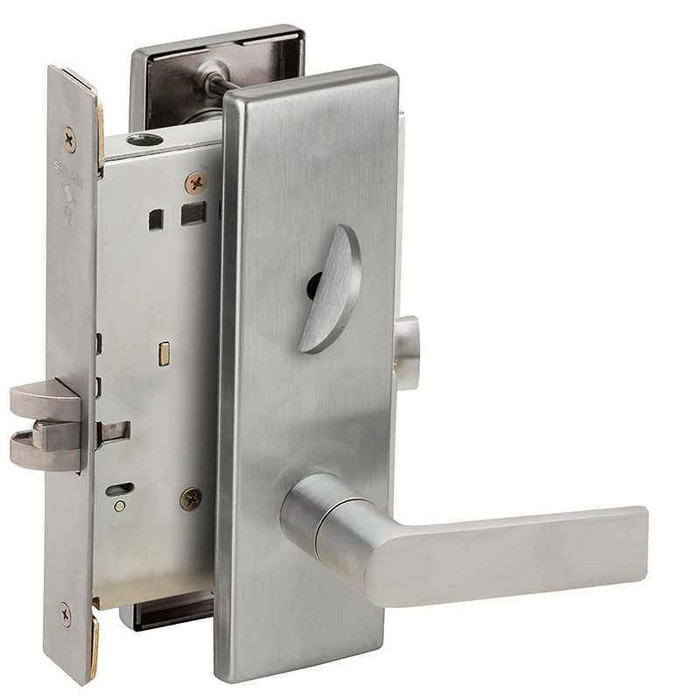

Schlage L9044 EE214 - Privacy With Coin Turn Outside - Grade 1 Mortise Non-Keyed Lever Lock

Schlage L9044 EE214 - Privacy With Coin Turn Outside - Grade 1 Mortise Non-Keyed Lever Lock

(No reviews yet) Write a Review

Model: L9044 06A 626 EE214
From the L9000 Series Collection
$1,411.00
$987.70
Selected Finish is
Selected Lever Style is
Selected ROSE/ESCUTCHEON DESIGN is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,411.00
$987.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Default Attributes
Style: Same lever, rose and finish for both sides of the door with coordinating latch and strike.
Latch: ANSI/BHMA Certified A156.13-2012, Series 1000, Grade 1 Operational,
Grade 1 Security, UL Listed for 3-hour fire door (except L9076 and L9077).
With FSIC Interchangeable Core Cylinders: Grade 1 Operational, Grade 2 Security.
With SFIC Interchangeable Core Cylinders: Grade 1 Operational, Grade 3 Security.
Case Size: 4-7/16" x 6-1/16" x 1";
Armor Front: 1-1/4" x 8";
Deadbolt: 1" Throw stainless steel;
Latchbolt: 3/4" Throw stainless steel with anti-friction tongue;
Strike: 1-1/4" x 4-7/8" Square corner, 1-3/16" lip, box;
Backset: 2-3/4";
Door Thickness: 1-3/4".


L9044 - PRIVACY WITH COIN TURN OUTSIDE

  • Latchbolt retracted by lever/knob from either side unless outside lever is locked by inside thumbturn or outside coin turn;
  • Actuating inside lever, closing door, or rotating outside coin turn unlocks outside lever.


Schlage L SERIES OVERVIEW

The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.

180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.


FEATURES & BENEFITS

Security

  • Exceeds ANSI/BHMA Grade 1 Security and Operational standards
  • Deadbolt functions include anti-saw pin in bolt to prevent cut-through
  • Security blocking hub prevents lock picking by removing levers

Function availability and compatibility

  • 55+ standard functions (custom functions are also available)
  • Universal lock case allows 10 functions to be created from a single lock body
  • Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency

Aesthetics

  • 14 finishes
  • 33 lever, two knob, five rose and three escutcheon designs
  • Locking lever bushing eliminates exposed screws on inside levers
  • All levers suite with Von Duprin exit devices, along with related L Series products LE, LM9200, LM9300 and LT

Options

  • Exclusive 180° visibility indicator
  • Vandlgard® free-wheeling outside trim option is available on most functions, including electrified
  • Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
  • New Gold Standard ligature resistant trim for behavioral health applications


AVAILABLE ND SERIES FUNCTIONS

View the Schlage L Series catalog for descriptions of all available functions.


CERTIFICATIONS & TESTING

View the Schlage L Series catalog to see all specifications and certifications.

Certifications

  • Meets BAA (Buy American Act)
  • L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
  • UL listed for 3-hour fire door (except L9076 and L9077)
  • With interchangeable core cylinders: Grade 2 security
  • With concealed shell cylinder: A156.13 Grade 1 operational and security
  • ANSI/ASTM F476-76 Grade 40, UL listed
  • L400: tested and certified under ANSI/BHMA A156.36 Grade 1
  • California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
  • UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing
  • Electrified functions are UL19X listed for single-point locking applications
  • UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
  • Miami-Dade NOA's and Florida Building Commission Listings
  • Meet ADA requirements

DOWNLOADS & RESOURCES



Technical resources


Manufacturer Resources

Product Specs

Subcategory:
Mortise Locks
Product Group:
Mechanical Locks
Series:
L Series
Function Description:
Latchbolt retracted by knob/lever from either side unless outside is locked by inside thumbturn or outside coin turn.
Grade:
Grade 1
Duty Level:
Heavy Duty
Keyed Function:
Non-Keyed
Handle Type:
Lever
Standard Latch:
3/4" Stainless Steel Latch with Anti-Friction Tongue
Standard Strike:
10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
Mortise Case Size:
4-7/16" x 3-5/8" x 1"
Warranty:
3 Year Limited
Keyed:
No
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Privacy/Bed/Bath
IMAP Policy:
Yes
Product Attribute:
Mortise Locks
Electronic:
No
Product Model:
L9044
Collection:
L9000 Series
Product Function:
Privacy/Bed/Bath
Door Hand Direction:
Non-Handed
Door Thickness Range:
2-1/4"
Product Substrate:
CRS with Zinc Dichromate Plating
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Schlage L9044 06A 626 EE214 – Frequently Asked Questions

1) Will the Schlage L9044 fit a 1-3/4 inch door?
The L9044 mortise lock is built around a 2-3/4 inch backset, and the standard configuration is a 1-3/4 inch door. Schlage also catalogues a 2-1/4 inch door thickness option on this lock, so thicker doors are handled by specifying that thickness rather than by a different lock body. The mortise pocket has to accept a case measuring 4-7/16 x 3-5/8 x 1 inches.
2) How does the L9044 privacy function with coin turn actually work on a restroom door?
Either lever retracts the latchbolt normally. Turning the inside thumbturn locks the outside lever, so the room is private. From the corridor side, a coin turn releases that lock, which is how staff get in during an emergency. The lock also releases when the inside lever is turned or when the door is closed, so nobody walks away leaving the room locked out.
3) Do I have to specify handing when ordering a Schlage L9044 mortise lock?
No handing to specify on the L9044 itself, it is non-handed. The one place hand does come into it is the 12 lever design, which is ordered as either left hand or right hand; every other lever design in the range is symmetrical.
4) Will the L9044 latch into the strike that is already in my frame?
The latchbolt is stainless steel with a 3/4 inch throw and an anti-friction tongue, and the lock ships with a 10-072 box strike measuring 1-1/4 x 4-7/8 inches, square corner, with a 1-3/16 inch lip. If your frame has a standard ANSI square-corner mortise strike prep of that size you can reuse it; a radius-corner or T-strike prep will not take the supplied square-corner strike without a filler or a frame change.
5) Does the Schlage L9044 have a deadbolt?
No deadbolt on the L9044. It is a non-keyed privacy lock, so security comes from the thumbturn locking the outside lever, not from a bolt. If the room needs a bolt as well as privacy, the Cal-Royal NM8440 is a Grade 1 privacy mortise lockset with a deadbolt, and the Sargent 4874 is a double cylinder mortise deadbolt on a 2-3/4 inch backset if you want the bolt as a separate device above the lock.
6) Is the L9044 rated for a fire door?
UL listed for a 3-hour fire door, and UL/cUL listed for A label single doors up to 4 by 10 feet and pairs up to 8 by 10 feet. The letter F and the UL symbol stamped on the latch front are how an inspector confirms the listing in the field. The lock is also certified to ANSI/BHMA A156.13, Grade 1 operational and Grade 1 security, and meets ADA requirements.
7) What do I have to pick to order a Schlage L9044 privacy lock?
Three choices build the part number: lever design, rose or escutcheon, and finish. Lever designs run 01, 02, 03, 05, 06, 07, 12 (ordered left or right hand), 17, 18, plus Latitude, Longitude and Omega. Trim is A or B wrought rose, N escutcheon, or L full face escutcheon. Finishes are 605 bright brass, 606 satin brass, 609 antique brass, 612 satin bronze, 613 oil rubbed bronze, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome, 630 satin stainless and 643E aged bronze. Nothing needs keying, since it is a non-keyed function.
8) What is the closest equivalent to the Schlage L9044 privacy mortise lock from another manufacturer?
The Cal-Royal NM8440 is a Grade 1 privacy mortise lockset with a deadbolt, built for 1-3/4 inch doors. The Schlage L9044 is a Grade 1 non-keyed mortise lock in the Privacy/Bed/Bath function, where the latchbolt is retracted by knob or lever from either side unless the outside is locked by the inside thumbturn or the outside coin turn. The Hager 3840S is a further Grade 1 privacy mortise lock with a 2-3/4 inch backset, matching the L9044 backset, and covers doors 1-3/4 inch to 2 inch. Confirm which locking and release arrangement the opening needs before substituting, since the coin turn override on the outside is specific to the L9044.
9) Which mortise lock should be used on a restroom door that needs no locking at all, instead of an L9044 privacy lock?
For an opening that only needs the door latched and never locked, a passage function mortise lock is the right part. The Falcon MA101 is a Grade 1 heavy-duty mortise passage lock with field reversible operation and a fire rating. The Hager 3810S is a Grade 1 passage mortise lock with rose trim and a 2-3/4 inch backset, and the Hager 3810E is the same passage function with escutcheon trim. The Schlage L9044 carries a Privacy/Bed/Bath function with an inside thumbturn and outside coin turn, so it adds locking a passage opening does not use.
10) What replaces a privacy mortise lock on a behavioral health or patient room door where a lever and thumbturn are not acceptable?
Anti-ligature trim is the substitution for those openings. The TownSteel MRX-L-01 is a Grade 1 heavy-duty anti-ligature lever mortise lockset in stainless steel with a passage function for 1-3/4 inch doors, and the MRX-A-01 is the same passage function with ligature resistant arch trim. The Marks USA 5PDN is a Grade 1 hospital passage mortise push/pull paddleset that is ligature resistant and ADA compliant in satin stainless steel. The Schlage L9044 uses a lever handle with a Privacy/Bed/Bath function, so the projecting lever and thumbturn are the reason these get specified in its place.
11) Is there a keyed mortise lock that fits the same prep as the Schlage L9044 for an office or storeroom door?
The L9044 is non-keyed, so a keyed opening needs a different function entirely. The Accentra 8805FL is a Grade 1 storeroom mortise lock from the 8800 Series with an Arcadia lever. The Cal-Royal NM8080 is a Grade 1 storeroom mortise lockset with an interchangeable core option for 1-3/4 inch doors, and the NM8050 is the Grade 1 office/entrance mortise lockset with an auxiliary deadlatch. The Corbin Russwin ML2003 is a Grade 1 mortise classroom lockset from the ML2000 Series for 1-3/4 inch doors. All are keyed functions, unlike the L9044.
12) Will a Baldwin 6301 or 6310 mortise lock body drop into the same door prep as a Schlage L9044?
No. The Baldwin 6301 entry/apartment mortise lock body and the 6310 entry/storeroom mortise lock body are both 2-1/2 inch backset, while the Schlage L9044 uses a 2-3/4 inch backset, so the cylinder and spindle centers do not line up in an existing L Series prep. The 6301 is offered knob by knob and as the 6301LS lever by lever, and the 6310 is offered knob by knob and as the 6310190RRLS right hand reverse lever by lever. Function differs as well: the Baldwins are entry functions, the L9044 is Privacy/Bed/Bath and non-handed.
13) Will the levers on this Schlage mortise privacy lock match the exit devices and other locks in the same building?
Yes. The L Series levers suite with Von Duprin exit devices and with the related L Series products LE, LM9200, LM9300 and LT, so a restroom on the L9044 can carry the same lever design and finish as the exit device on the stairwell and the electrified openings down the corridor. That is the usual reason a facility standardizes on L Series rather than mixing brands by function.
14) Should I use a mortise privacy lock or a cylindrical one for restrooms in a commercial building?
A mortise lock like the L9044 needs a pocket cut into the door edge, roughly 4-7/16 by 3-5/8 by 1 inch, so it suits a door already prepped for mortise or a new door you are specifying. In return you get a heavy duty Grade 1 case that carries the coin turn release and a 3/4 inch anti-friction latch. If the doors are bored for a cylindrical lock, retrofitting to mortise means new doors or a full edge prep, and that cost usually decides the question before the hardware does.
15) What else could I use instead of the Schlage L9044 for a Grade 1 privacy restroom door?
For a straight mechanical privacy mortise lock, the Cal-Royal NM8440 is Grade 1 privacy with a deadbolt for 1-3/4 inch doors, and the Hager 3840S is a Grade 1 privacy mortise lock on the same 2-3/4 inch backset covering 1-3/4 to 2 inch doors. If the opening needs to be electronic instead, the Schlage CO-100 mortise is a Grade 1 privacy standalone with a keypad for 1-3/4 inch doors. What the L9044 gives you that those do not is the outside coin turn for emergency entry.
16) Is the Schlage L9044 an electronic lock or does it need power?
Purely mechanical, no wiring and no power. If the opening needs access control, the L Series does offer electrified functions that auto detect 12V or 24V DC with selectable EL/EU and options like RX, DPS and latchbolt monitoring, but those are different function numbers, not an add-on to the L9044. Among other brands, the BEST 45HW is a wired electromechanical mortise lock running 12V/24V, and the Command Access ML190 is a motorized mortise lock with field selectable EL/EU on 24VDC.
17) Does the Schlage L9044 meet Buy American requirements for a government job?
The L Series meets the Buy American Act, and it also carries Miami-Dade NOAs and Florida Building Commission listings, which is what matters on coastal work in Florida. Levers with a return to the door of 1/2 inch or less comply with the California Referenced Standards Code.
18) Can a Schlage CO-100 electronic mortise lock be used in place of a mechanical L9044 privacy lock?
The Schlage CO-100 mortise lock is a Grade 1 heavy-duty standalone electronic lock in a Privacy/Bed/Bath function with a keypad reader, for 1-3/4 inch doors. It matches the L9044 on function family and grade, but the L9044 is a mechanical, non-electronic lock, so the CO-100 brings credential management, power and programming the mechanical lock does not need. Where a room only needs a mechanical occupancy indication and release, the L9044 answers with an inside thumbturn and outside coin turn.
19) What looks like a substitute for a privacy mortise lockset but is only a lock body or trim piece?
Several mortise parts read as complete locksets in a search and are not. The BEST 45HCAC is a heavy-duty mortise lock body in a public entrance function, and the 45HCAINL is a heavy-duty mortise lockbody with an intruder function - both are bodies, not lock and trim assemblies. The Sargent 130KB is a standard mortise thumbturn and the 130W is a mortise thumbturn with a round backplate, which are the turn piece alone. The Schlage L9044 arrives as a complete mortise lever lock with a 3/4 inch stainless steel latch with anti-friction tongue and a 10-072 1-1/4 inch by 4-7/8 inch square corner box strike with a 1-3/16 inch lip.
20) What mortise option suits a dormitory or corridor door that needs a deadbolt as well as a latch?
The Sargent 7925 is a Grade 1 heavy-duty mortise lock in the corridor/dormitory exit function from the 7900 Series, with rose trim and a single cylinder deadbolt. The Cal-Royal NM8440 is a Grade 1 privacy mortise lockset with a deadbolt for 1-3/4 inch doors. The Schlage L9044 is a non-keyed Privacy/Bed/Bath function whose latchbolt is controlled by the inside thumbturn and outside coin turn, so a door that needs a keyed deadbolt throw belongs on one of the deadbolt functions instead.
21) Is an Emtek Brisbane or Memphis mortise entrance set an alternative to a Grade 1 privacy mortise lock?
They serve a different purpose. The Emtek 3019 Brisbane, 3102 Memphis, 3104 Hamilton and 3106 Manhattan mortise entrance locksets are dummy function - trim that does not operate a latch. The Falcon MESC600DT is likewise a dummy escutcheon lever trim, made for M9900 Series exit devices. The Schlage L9044 is a Grade 1, heavy duty, commercial mortise lock with a working latchbolt and a thumbturn and coin turn locking arrangement, so a dummy set matches only the inactive leaf of a pair.
22) Which mortise locks work on a door thinner than 1-3/4 inch, where a standard commercial mortise lock does not?
The Alarm Lock DL2700CR and DL3500CR Trilogy electronic mortise locks are both Grade 1 classroom function and cover a 1-5/8 inch to 1-7/8 inch door thickness range, as does the DL4500 electronic mortise deadbolt. The Marks USA 21AC and 22AC ornamental iron mortise locks are built for 1 inch doors. The Schlage L9044 is specified at a 2-1/4 inch door thickness, so on a thin stile or a light door one of the narrower-range bodies is the correct direction.
23) What is the difference between the Schlage L9044 and the Schlage Electronics LE and ENGAGE mortise locks?
The Schlage Electronics LEBMB-ADD is a Grade 2 mobile-enabled mortise lock with a push button and LED, covering privacy, office and apartment modes on 1-3/4 inch doors with a 3 hour fire rating. The LEMD-GRW is a Grade 1 ENGAGE Series wireless mortise lock with a 125kHz proximity reader and mobile-enabled deadbolt with LED on Greenwich trim, right hand, also 3 hour fire rated. The L9044 is a Grade 1 mechanical, non-electronic L Series mortise lock and is non-handed, so it needs no credential system, no power and no hand specified at order.
24) What should be used on an aluminum storefront or glass door rather than a Schlage L9044 mortise lock?
Storefront openings take purpose-built hardware. The Alarm Lock DL1300NW Trilogy Networx wireless electronic mortise lock with keypad is made for Adams Rite deadlatches, and the Kaba Ilco BR Series is a glass door bottom rail lock. The Dormakaba E-Plex 2066 electronic pushbutton keyless mortise lock is specified for wide stile applications. The Schlage L9044 is a commercial mortise lock with a 4-7/16 by 3-5/8 by 1 inch case and a 2-3/4 inch backset, which a narrow stile will not accept.
25) Which mortise lock supports access control or electrified release, since the L9044 does not?
The Command Access ML19092-M is a heavy-duty motorized mortise lock in a storeroom function with field selectable EL/EU operation on 24VDC. The BEST 45HW is a heavy duty wired electromechanical mortise lock with 12V/24V operation, and the 45HZ EZ Series is an electronic keypad mortise lock with key override. The TownSteel FME-2000 is a Grade 1 heavy duty classroom mortise lockset with RFID for 1-3/4 inch doors, and the FME-4000 is the electronic intruder classroom version with RFID. The Schlage L9044 is a mechanical, non-electronic privacy lock.
26) What is the difference between the Schlage L9044 and the Hager 3850E office mortise lock for a non-keyed opening?
The Hager 3850E is a Grade 1 office mortise lock with lever and escutcheon, non-keyed, with a 2-3/4 inch backset and a 1-3/4 inch to 2-1/2 inch door thickness range. It shares the non-keyed lever arrangement and 2-3/4 inch backset with the Schlage L9044, but carries an office function while the L9044 is Privacy/Bed/Bath, locked by inside thumbturn or outside coin turn. The L9044 can be ordered with an N escutcheon or an L full face escutcheon as well as A or B wrought rose trim.
27) How well does the L9044 hold up in a high traffic public restroom?
Heavy duty commercial build: the case is cold rolled steel with zinc dichromate plating, the latchbolt and deadbolt components are stainless, and the lock is certified Grade 1 for both operation and security under A156.13. A security blocking hub stops someone picking the lock by pulling the levers off. That is the construction level you want on a lobby or public restroom rather than a residential mortise body.
28) Can I convert an existing Schlage L Series lock in my building to the L9044 privacy function?
The L9000 line uses a universal lock case that supports 10 different functions from a single body, so a number of L Series functions are created from the same case rather than a unique one per function. Schlage publishes an L Series Universal Transformation Guide that states which functions convert and what parts each conversion needs, and that guide is the document to work from before ordering parts instead of a whole lock.
29) Is a Codelocks CL2255 an acceptable stand-in for a Grade 1 mortise lock on a commercial opening?
The Codelocks CL2255 electronic tubular mortise latch in brushed steel is rated medium duty in the CL2000 Series. The Schlage L9044 is a heavy duty, Grade 1 commercial mortise lock with a case built from CRS with zinc dichromate plating. On a high-traffic commercial opening the duty level is the deciding difference between the two.
30) What mortise deadbolt is used when only a deadbolt is needed and no latch or lever?
The Sargent 4874 is a double cylinder mortise deadbolt from the 4870 Series with a 2-3/4 inch backset, matching the Schlage L9044 backset. The Kaba Ilco 185 Series mortise lock is also a deadbolt function with no handing. The L9044 by contrast is a lever-operated Privacy/Bed/Bath mortise lock whose latchbolt retracts from either side unless locked, so it does not fill a deadbolt-only prep.
31) Is the Dormakaba Saffire LX-I-M002 comparable to a Grade 1 mechanical mortise lock?
The Dormakaba LX-I-M002 Saffire is an electronic RFID mortise lockset with BLE mobile access, rated BHMA Grade 2. The Dormakaba E-Plex E5086 back to back electronic pushbutton and card mortise lock in the 5X86 Series is Grade 1 with an entry/egress function. The Schlage L9044 is Grade 1 and mechanical with a Privacy/Bed/Bath function, so on a project written to a Grade 1 mechanical privacy spec the Saffire's grade and credential requirement are the points to check.
