Schlage L9463 With XB11-720 - ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,239.00
$867.30
Schlage Schlage L9463 with XB11-720 - Classroom Sectional Trim Mortise Lock with B100 Series Style Thumbturn - Deadbolt Function Single Cylinder Keyed Lock SCH-L9463-XB11-720-KEYED

Schlage L9463 With XB11-720 - Classroom Sectional Trim Mortise Lock With B100 Series Style Thumbturn - Deadbolt Function Single Cylinder Keyed Lock

(No reviews yet) Write a Review

Model: L9463J-626-XB11-720
From the L9000 Series Collection
$1,239.00
$867.30
Selected Finish is
Selected Cylinder is
  • Schlage ADDER-SCHLAGE-COMMERCIAL-[KEYING]=KD - Keyed Different ADDER-SCHLAGE-COMMERCIAL-[KEYING]=KD - Keyed Different
  • Schlage ADDER-SCHLAGE-COMMERCIAL-[KEYING]=KA - Keyed Alike ADDER-SCHLAGE-COMMERCIAL-[KEYING]=KA - Keyed Alike
  • Schlage ADDER-SCHLAGE-COMMERCIAL-[KEYING]=None (Select for Less Cylinder Options) ADDER-SCHLAGE-COMMERCIAL-[KEYING]=None (Select for Less Cylinder Options)

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,239.00
$867.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

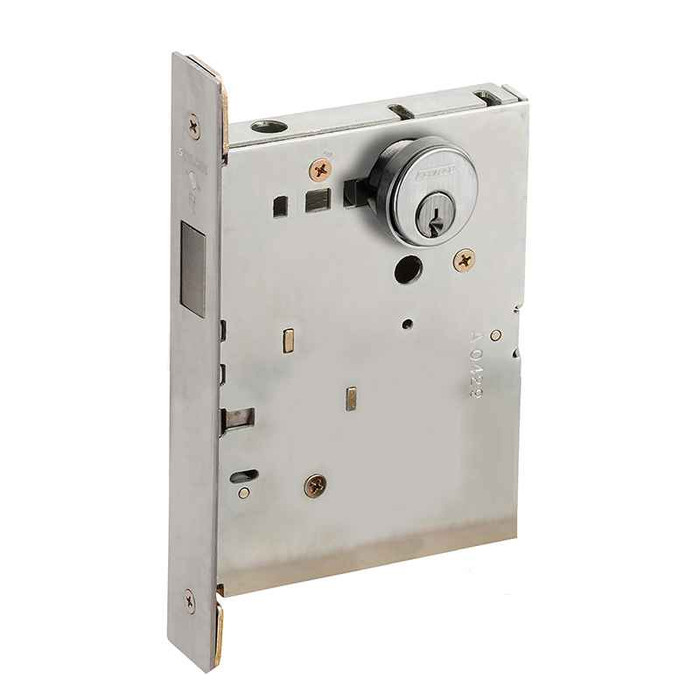

L9463 - CLASSROOM CYLINDER SECTIONAL TRIM MORTISE LOCK

  • Deadbolt actuated by key;
  • Thumbturn retracts deadbolt but cannot extend it.


Schlage L9000 SERIES OVERVIEW

The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.

The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. The ability to suite across electronic, tubular, exit trim, and multi-point locks allows the Schlage L Series mortise lock to integrate seamlessly into any environment.


FEATURES & BENEFITS

Security

  • Exceeds ANSI/BHMA Grade 1 Security and Operational standards
  • Deadbolt functions include anti-saw pin in bolt to prevent cut-through
  • Security blocking hub prevents lock picking by removing levers

Function availability and compatibility

  • 55+ standard functions (custom functions are also available)
  • Universal lock case allows 10 functions to be created from a single lock body
  • Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency

Aesthetics

  • 14 finishes
  • 33 lever, two knob, five rose and three escutcheon designs
  • Locking lever bushing eliminates exposed screws on inside levers
  • All levers suite with Von Duprin exit devices, along with related L Series products LE, LM9200, LM9300 and LT

Options

  • Exclusive 180° visibility indicator
  • Vandlgard® free-wheeling outside trim option is available on most functions, including electrified
  • Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
  • New Gold Standard ligature resistant trim for behavioral health applications


AVAILABLE L SERIES FUNCTIONS

View the Schlage L Series catalog for descriptions of all available functions.


CERTIFICATIONS & TESTING

View the Schlage L Series catalog to see all specifications and certifications.

Certifications

  • Meets BAA (Buy American Act)
  • L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
  • UL listed for 3-hour fire door (except L9076 and L9077)
  • With interchangeable core cylinders: Grade 2 security
  • With concealed shell cylinder: A156.13 Grade 1 operational and security
  • ANSI/ASTM F476-76 Grade 40, UL listed
  • L400: tested and certified under ANSI/BHMA A156.36 Grade 1
  • California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
  • UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing
  • Electrified functions are UL19X listed for single-point locking applications
  • UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
  • Miami-Dade NOA's and Florida Building Commission Listings
  • Meet ADA requirements

DOWNLOADS & RESOURCES



Technical resources


Manufacturer Resources

Product Specs

Subcategory:
Mortise Locks
Product Group:
Mechanical Locks
Series:
L Series
Function Description:
Deadbolt actuated by key. Thumbturn retracts deadbolt but cannot extend it
Grade:
Grade 1
Duty Level:
Heavy Duty
Keyed Function:
Single Cylinder
Standard Cylinder:
Conventional 6-pin Cylinder, S123 Keyway
Standard Strike:
10-073 Deadbolt lock strike 1-1/4" x 4-7/8" square corner strike + box, no lip
Mortise Case Size:
4-7/16" x 3-5/8" x 1"
Warranty:
3 Year Limited
Keyed:
Yes
Product Type:
Mortise Locks
ANSI/BHMA:
F29
Product Subgroup:
Mortise Locks and Trim
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Classroom
IMAP Policy:
Yes
Product Attribute:
Mortise Locks
Electronic:
No
Product Model:
L9463
Collection:
L9000 Series
Product Function:
Classroom
Door Hand Direction:
Handed
Door Thickness Range:
1-3/4"
Product Category:
Mechanical Locks
Product Substrate:
CRS with Zinc Dichromate Plating
Backset (Distance):
2-3/4"
Department:
Door Hardware

Schlage L9463J-626-XB11-720 – Frequently Asked Questions

1) What does the Schlage L9463 classroom deadbolt actually do when someone turns the inside thumbturn?
On the L9463, the thumbturn only retracts the deadbolt. It cannot throw it. The bolt is projected by key only, from the outside cylinder. That is the point of the classroom deadbolt function: nobody can lock the room from inside by fiddling with the turn, and anyone inside can always retract the bolt to get out. If you want a teacher to be able to lock the door from inside the room without a key, this is the wrong function.
2) Do I have to specify handing when ordering a Schlage L9463?
Yes, handing is required. The L9463 is a handed lock, ordered right hand or left hand, so you need to know which way the door swings and which side the hinges are on before you place the order. Get it backwards and the trim and bolt orientation will be wrong for the opening.
3) What cylinder and keyway comes with the Schlage L9463, and can I get it less cylinder for my own core?
Standard build is a conventional 6-pin cylinder in the S123 keyway. Two other cylinder choices are offered: J, Schlage full size interchangeable core less core, for shops that stock their own FSIC cores, and L, less conventional cylinder, if you are supplying a conventional cylinder yourself. Keying is a required choice at order time, keyed different, keyed alike across multiple locks, or none when you have picked a less-cylinder option.
4) Is a Schlage L9463 fire rated and does it meet Grade 1 for a school or hospital spec?
The L9000 Series is tested and certified under ANSI/BHMA A156.13 Grade 1 for both security and operational, and it is UL listed for 3-hour fire doors. UL and cUL listing covers A label single doors up to 4 by 10 feet and pairs to 8 by 10 feet, with the letter F and the UL symbol stamped on the latch front. It also meets ADA requirements and the Buy American Act. One caveat for spec writers: with interchangeable core cylinders the security rating is Grade 2, so if the drawing calls for Grade 1 security, do not order the FSIC option.
5) Can I key the L9463 to the same key as the rest of my building's Schlage locks?
Yes. Keyed alike is a selectable option at order, and the standard cylinder is a conventional 6-pin in the S123 keyway, which is what most Schlage conventional systems run. If you are on a proprietary or restricted keyway, order the L option (less conventional cylinder) or the J option (FSIC less core) and pin or core it into your own system. There is also a free-text field on the order for special cylinder and keying requirements.
6) Should I use a classroom deadbolt mortise lock or a classroom latch lockset on a school door?
They solve different problems. The L9463 is a deadbolt-only function: key throws the bolt, inside turn retracts it, and there is no latch operation, so it is used where you want a separate positive lock rather than day-to-day passage. A classroom lockset with a latch and lever, such as the Cal-Royal NM8070 or the Corbin Russwin ML2003, gives you a latching classroom function with an auxiliary deadlatch for normal traffic. If the teacher needs to lock the door from inside the room during a lockdown, neither key-outside-only classroom function does that, and an intruder function lock like the BEST 45HCA intruder lockbody is the direction to look.
7) What is the closest equivalent to a Schlage L9463 classroom mortise lock from another manufacturer?
The Corbin Russwin ML2003 is the nearest straight equivalent: a Grade 1 mortise classroom lockset in the ML2000 Series built for a 1-3/4 inch door, matching the Schlage L9463's Grade 1 rating and 1-3/4 inch door thickness. Cal-Royal's NM8070 is a second option, a heavy duty Grade 1 classroom mortise lockset with an auxiliary deadlatch, also for a 1-3/4 inch door. The difference to weigh is the bolt work: the L9463 is a deadbolt function where the key throws the deadbolt and the thumbturn only retracts it, so if the opening depends on that thumbturn-retract behavior, confirm the substitute's classroom function does the same thing before you order.
8) What classroom mortise lock should I use if I want keypad access instead of a keyed cylinder?
Several Grade 1 classroom mortise locks run on codes rather than a keyway. The Alarm Lock DL3500CR Trilogy is a Grade 1 electronic mortise lock with classroom function and 300 user codes, for doors 1-5/8 to 1-7/8 inches thick. The DL2700CR is the Trilogy T2 classroom-function electronic mortise lock with a weatherproof design, same Grade 1 rating and 1-5/8 to 1-7/8 inch door range. On the credential side, TownSteel's FME-2000 is a Grade 1 heavy duty classroom mortise lockset with RFID for 1-3/4 inch doors. Note the door range: the Schlage L9463 is built for a 1-3/4 inch door, which sits outside the 1-5/8 to 1-7/8 inch window only at the top end, so measure the leaf before swapping to a Trilogy.
9) Which strike does the L9463 deadbolt lock need in the frame?
It ships with the 10-073 deadbolt strike, a 1-1/4 by 4-7/8 inch square corner strike with a box and no lip. If your frame is prepped for a curved corner ANSI strike or a lipped latch strike, the frame prep will not match without modification. Worth checking the existing cutout before you pull the old lock.
10) What is the ANSI function code for the L9463, and what code should I match on a submittal?
F29 is the ANSI/BHMA function designation for the L9463 classroom deadbolt. If the hardware schedule calls out F29 for a classroom deadbolt with key-operated projection and inside thumbturn retraction only, this is the Schlage equivalent.
11) What are the alternatives to the Schlage L9463 if I want the same classroom function from another brand?
For a mechanical Grade 1 classroom mortise lock, the Cal-Royal NM8070 and the Corbin Russwin ML2003 are the closest cross-brand equivalents, both Grade 1 classroom function on 1-3/4 inch doors. The Marks USA LA318GJ adds a classroom security indicator and ships with an ANSI strike, also 1-3/4 inch door. If you want credentials rather than keys, TownSteel's FME-2000 is a Grade 1 classroom mortise lockset with RFID, and the FME-4000 adds an electronic intruder classroom function. Note that all of these are latching locksets, which is a different animal from the L9463's key-only deadbolt.
12) Is the L9463 an electronic lock, and can I get an electrified version in the L Series?
No, the L9463 is a mechanical lock with no electronics. The L Series does offer electrified functions that auto detect 12V or 24V DC with customer-selectable EL or EU, plus RX, DPS, latchbolt monitor and deadbolt monitor, and those are UL19X listed for single-point locking. Those are different model numbers, not an add-on to this one. For access control on a mortise prep without hard wiring, the Schlage LEMD ENGAGE wireless mortise lock is a Grade 1 mobile-enabled option.
13) How secure is the deadbolt on the L9463 against a saw or a pulled lever?
The deadbolt carries an anti-saw pin inside the bolt to stop cut-through, and the L Series uses a security blocking hub so that removing the levers does not give an attacker a way to pick or manipulate the lock. Lock case material is cold rolled steel with zinc dichromate plating. It also carries the ANSI/ASTM F476-76 Grade 40 forced entry listing. If you need a UL437 rated cylinder on top of that, the Primus 20-500 Series cylinder is the option to specify.
14) Will the L9463 trim match my Von Duprin exit devices and the other Schlage locks in the building?
All L Series levers suite with Von Duprin exit devices and with the related L Series products LE, LM9200, LM9300 and LT, so a building running Von Duprin on the stairwells and L Series on the classrooms keys and looks consistent. Across the series there are 14 finishes, 33 lever designs, two knobs, five roses and three escutcheons to match from. On the L9463 itself the trim is the XB11-720 sectional with a B100 style thumbturn, in twelve finishes.
15) Is a Sargent 4874 mortise deadbolt a substitute for a Schlage L9463?
No. The Sargent 4874 is a double cylinder mortise deadbolt on a 2-3/4 inch backset - deadbolt only, keyed from both sides, no latchbolt and no lever. The Schlage L9463 is a classroom mortise lock with a deadbolt actuated by key and a thumbturn that retracts the deadbolt but cannot extend it, on the same 2-3/4 inch backset. The backsets match, but a 4874 will not operate a door as a latching lockset and gives you no inside thumbturn release. Use the 4874 only where you want a separate deadbolt above an existing latch, and use the Kaba Ilco 185 Series if you want a deadbolt-function mortise lock that takes no handing.
16) The L9463 is handed - what Grade 1 mortise lock can I order without specifying hand?
The Schlage L9463 is a handed lock, so right hand or left hand has to be called out at the order. If your crew is stocking a shelf and does not want to split inventory by hand, the BEST 45H Series heavy duty mortise lock body is field reversible in the public entrance function, the Falcon MA101 is a Grade 1 heavy-duty mortise passage lock with field reversible operation and a fire rating, and the Kaba Ilco 185 Series mortise locks take no handing. None of those three carry the classroom deadbolt function, so they are stocking answers for their own openings, not a swap for a classroom door.
17) What mortise lock replaces a classroom lock on a door that only needs storeroom or office function?
Where the opening does not need the key-thrown deadbolt of the Schlage L9463, a simpler lockset covers it. The Accentra 8805FL is a Grade 1 storeroom mortise lock in the 8800 Series with an Arcadia lever. Cal-Royal's NM8080 is a heavy duty Grade 1 storeroom mortise lockset with an interchangeable core option for a 1-3/4 inch door, and the NM8050 is the Grade 1 office/entrance version with an auxiliary deadlatch on the same 1-3/4 inch door. All three hold the same Grade 1 rating as the L9463 and drop the deadbolt and thumbturn that a classroom deadbolt function carries.
18) Can I use a Sargent 130KB thumbturn in place of the XB11-720 thumbturn on a Schlage mortise lock?
No. The Sargent 130KB is a standard duty mortise thumbturn built for the Sargent 8200 Series, and the 130W is a standard duty mortise thumbturn with a round backplate for the 7800 Series. Both are thumbturn trim pieces for Sargent lock bodies, not for the Schlage L9000 Series. The Schlage L9463 arrangement pairs the L9000 Series lock body with the XB11-720 B100 Series style thumbturn, and the trim has to match the lock body's hub and spindle to work at all.
19) What is the difference between the Schlage L9463 and a Sargent 7925 dormitory exit mortise lock?
Both are Grade 1 heavy duty mortise locks with a single cylinder deadbolt. The Sargent 7925 is a dormitory exit function lock in the 7900 Series with rose trim, meant for a corridor or dormitory opening where the deadbolt retracts on egress. The Schlage L9463 is a classroom function on a 2-3/4 inch backset where the key throws the deadbolt and the inside thumbturn retracts it but cannot extend it. Choose by who is allowed to set the bolt: the 7925 is built around resident-side control on a dorm room, the L9463 around key-only projection on a classroom door.
20) Which mortise lock has the same 2-3/4 inch backset as the Schlage L9463?
Hager's 3800 Series shares the 2-3/4 inch backset: the 3810E Grade 1 passage mortise lock with escutcheon and the 3810S with rose both list a 2-3/4 inch backset and cover 1-3/4 to 2-1/2 inch doors, the 3850E office lock is non-keyed with lever and escutcheon on the same backset and door range, and the 3840S privacy lock is 2-3/4 inch backset for 1-3/4 to 2 inch doors. The Sargent 4874 mortise deadbolt is also 2-3/4 inch backset. The Schlage L9463 sits at 2-3/4 inch backset on a 1-3/4 inch door. Matching backset is only part of the story on a mortise job - the case pocket and trim prep still have to be verified against the template.
21) I want to keep the Schlage keyway but move a classroom door to credentials - what Schlage electronic mortise locks are there?
Schlage Electronics offers mortise locks that keep the door on a Schlage platform while adding a credential. The LEMD-GRW is a Grade 1 ENGAGE Series wireless mortise lock with a 125kHz proximity reader and a mobile enabled deadbolt with LED, in Greenwich trim, right hand, with a 3 hour fire rating. The CO-100 is a Grade 1 heavy duty standalone electronic mortise lock with a keypad reader for a 1-3/4 inch door, in privacy function. The LEBMB-ADD is a Grade 2 mobile enabled mortise lock with push button and LED for privacy, office and apartment, also 1-3/4 inch door with a 3 hour fire rating. The Schlage L9463 is a mechanical lock with a conventional 6-pin cylinder in the S123 keyway, so keying continuity across a mixed job is the thing to confirm with your locksmith.
22) What mortise lock should I use instead of an L9463 on a behavioral health or ligature resistant opening?
A classroom lock with a projecting thumbturn is not the right trim for a ligature resistant opening. TownSteel's MRX-A-01 is a Grade 1 heavy duty passage mortise lockset with satin stainless steel ligature resistant arch trim for a 1-3/4 inch door, and the MRX-L-01 is the Grade 1 heavy duty anti-ligature lever version in stainless steel on the same door thickness. The Marks USA 5PDN is a Grade 1 hospital passage mortise push/pull paddleset, ligature resistant and ADA compliant in satin stainless steel. All three are passage function, so they hold no security on their own - pair them with the facility's access approach rather than treating them as a like-for-like swap for a keyed classroom lock.
23) What finishes does the Schlage L9463 come in?
Twelve finishes are offered on the L9463: 605 bright brass, 606 satin brass, 609 antique brass, 612 satin bronze, 613 oil rubbed bronze, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome, 629 bright stainless, 630 satin stainless, and 643E aged bronze. Each is available with either cylinder option. For matching existing openings in a commercial building, 626 satin chrome and 630 satin stainless are the two that turn up most often on institutional hardware.
24) Is the L9463 heavy enough for a high traffic commercial opening?
It is a heavy duty commercial mortise lock, Grade 1, built for continuous institutional traffic rather than residential use. Schlage rates the L9000 Series as exceeding ANSI/BHMA Grade 1 security and operational standards. For a school corridor, a hospital wing or a multi-family common area, that is the right duty class.
25) Are the Emtek mortise entrance locksets an alternative to a Schlage L9463 on a commercial door?
No. The Emtek 3019 Brisbane, 3102 Memphis, 3104 Hamilton and 3106 Manhattan mortise entrance locksets are all dummy function - decorative trim with no working latch or bolt. The Schlage L9463 is a commercial classroom mortise lock, Grade 1, with a key-actuated deadbolt and a thumbturn that retracts it. Use the Emtek dummy sets only on an inactive leaf where nothing has to lock.
