Schlage Schlage LV9071 - Vandlgard Classroom Security Mortise Lock - Grade 1 Non-Deadbolt Function Double Cylinder Keyed Lever Lock SCH-LV9071-KEYED

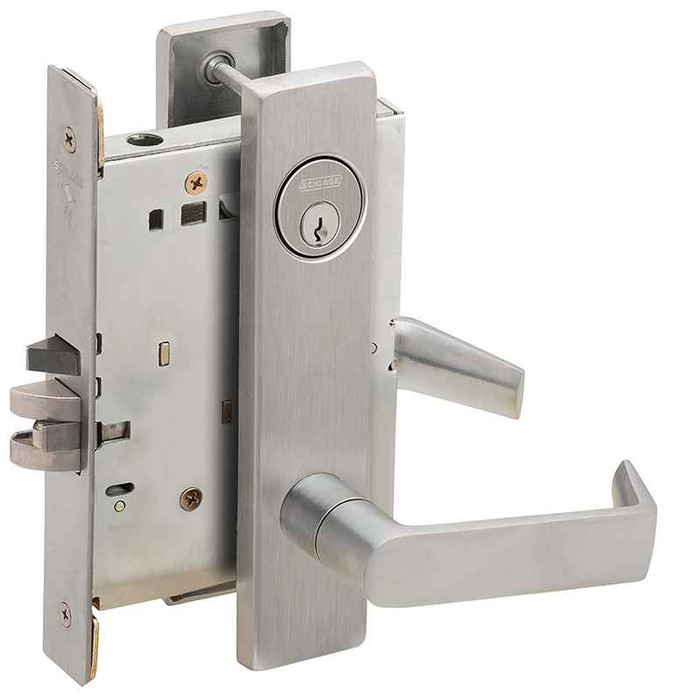

Schlage LV9071 - Vandlgard Classroom Security Mortise Lock - Grade 1 Non-Deadbolt Function Double Cylinder Keyed Lever Lock

(No reviews yet) Write a Review

Model: LV9071P 06A 626
From the L9000 Series Collection
$1,756.00
$1,229.20
Selected Finish is
Selected Lever Style is
Selected ROSE/ESCUTCHEON DESIGN is
Selected Cylinder is
Selected Keying is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,756.00
$1,229.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Default Attributes
Style: Same lever, rose and finish for both sides of the door with coordinating latch and strike.
Latch: ANSI/BHMA Certified A156.13-2012, Series 1000, Grade 1 Operational,
Grade 1 Security, UL Listed for 3-hour fire door (except L9076 and L9077).
With FSIC Interchangeable Core Cylinders: Grade 1 Operational, Grade 2 Security.
With SFIC Interchangeable Core Cylinders: Grade 1 Operational, Grade 3 Security.
Case Size: 4-7/16" x 6-1/16" x 1";
Armor Front: 1-1/4" x 8";
Strike: 1-1/4" x 4-7/8" Square corner, 1-3/16" lip, box;
Backset: 2-3/4";
Door Thickness: 1-3/4".


LV9071 - VANDLGARD CLASSROOM SECURITY NON-DEADBOLD FUNCTION LOCK

  • Latchbolt retracted by knob/lever from either side unless outside is locked by key from either side;
  • When locked, latchbolt retracted by outside key or inside knob/lever;
  • Auxiliary latch deadlocks latchbolt when door is closed;
  • Inside lever always free for immediate egress.


Schlage L SERIES OVERVIEW

The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.

180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.


FEATURES & BENEFITS

Security

  • Exceeds ANSI/BHMA Grade 1 Security and Operational standards
  • Deadbolt functions include anti-saw pin in bolt to prevent cut-through
  • Security blocking hub prevents lock picking by removing levers

Function availability and compatibility

  • 55+ standard functions (custom functions are also available)
  • Universal lock case allows 10 functions to be created from a single lock body
  • Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency

Aesthetics

  • 14 finishes
  • 33 lever, two knob, five rose and three escutcheon designs
  • Locking lever bushing eliminates exposed screws on inside levers
  • All levers suite with Von Duprin exit devices, along with related L Series products LE, LM9200, LM9300 and LT

Options

  • Exclusive 180° visibility indicator
  • Vandlgard® free-wheeling outside trim option is available on most functions, including electrified
  • Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
  • New Gold Standard ligature resistant trim for behavioral health applications


AVAILABLE L SERIES FUNCTIONS

View the Schlage L Series catalog for descriptions of all available functions.


CERTIFICATIONS & TESTING

View the Schlage L Series catalog to see all specifications and certifications.

Certifications

  • Meets BAA (Buy American Act)
  • L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
  • UL listed for 3-hour fire door (except L9076 and L9077)
  • With interchangeable core cylinders: Grade 2 security
  • With concealed shell cylinder: A156.13 Grade 1 operational and security
  • ANSI/ASTM F476-76 Grade 40, UL listed
  • L400: tested and certified under ANSI/BHMA A156.36 Grade 1
  • California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
  • UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing
  • Electrified functions are UL19X listed for single-point locking applications
  • UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
  • Miami-Dade NOA's and Florida Building Commission Listings
  • Meet ADA requirements

DOWNLOADS & RESOURCES



Technical resources


Manufacturer Resources

Product Specs

Subcategory:
Mortise Locks
Product Group:
Mechanical Locks
Series:
L Series
Function Description:
Latchbolt retracted by knob/lever from either side unless outside is locked by key from either side. Auxiliary latch deadlocks latchbolt when door is closed. Inside knob/lever is always free for immediate egress.
Grade:
Grade 1
Duty Level:
Heavy Duty
Keyed Function:
Double Cylinder
Standard Cylinder:
Conventional 6-pin Cylinder, C Keyway
Handle Type:
Lever
Standard Strike:
10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
Mortise Case Size:
4-7/16" x 6-1/16" x 1"
Warranty:
3 Year Limited
Keyed:
Yes
ANSI/BHMA:
F32
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Classroom Security
IMAP Policy:
Yes
Product Attribute:
Mortise Locks
Electronic:
No
Product Model:
LV9071
Collection:
L9000 Series
Product Function:
Classroom Security
Door Hand Direction:
Field Reversible
Door Thickness Range:
1-3/4"
Product Category:
Mechanical Locks
Product Substrate:
CRS with Zinc Dichromate Plating
Backset (Distance):
2-3/4"
Department:
Door Hardware

Schlage LV9071P 06A 626 – Frequently Asked Questions

1) Will the Schlage LV9071 mortise lock fit my existing 1-3/4 inch classroom door with a 2-3/4 inch backset prep?
That's exactly the prep the LV9071 is built for. It uses a 2-3/4 inch backset and is specified for 1-3/4 inch doors, with a lock case measuring 4-7/16 x 6-1/16 x 1 inches and a 1-1/4 x 8 inch armor front. If your door already carries a standard ANSI mortise pocket at 2-3/4 backset, the case drops in. Doors thicker or thinner than 1-3/4 need a different door thickness option specified.
2) What does the Vandlgard part of the Schlage LV9071 do, and is it worth it in a school corridor?
Vandlgard is a free-wheeling outside trim. When the outside lever is locked, it spins freely instead of transmitting force into the lock case, so a student hanging on the lever or kicking it doesn't break the hub or the spindle. On high-abuse openings, corridors, gyms, stairwells, that is the difference between a lock that survives the school year and a service call. It is an option Schlage offers across most L Series functions, and the LV9071 is the classroom security function with it built in.
3) Is the Schlage LV9071 rated for a fire door, and what grade is it?
Grade 1 under ANSI/BHMA A156.13-2012, Series 1000, both Operational and Security, and UL listed for a 3-hour fire door. The UL/cUL listing covers A label single doors up to 4 x 10 feet and pairs up to 8 x 10 feet; the letter F and UL symbol on the latch front are how you verify it on the job. The function code is F32. Note the grade shifts if you order it with interchangeable cores: FSIC drops the security rating to Grade 2 and SFIC to Grade 3, while operational stays Grade 1.
4) Do I have to specify handing when I order a Schlage LV9071?
For most lever designs, no. The lock is field reversible, so one part number covers left and right hand openings and you set the hand on site. The exception is the 12 lever, which does need the hand called out as RH or LH at the time of order. Every other lever design in the range (01, 02, 03, 05, 06, 07, 17 and 18) is handed in the field.
5) What cylinder and keyway does the Schlage LV9071 come with, and can I get it less cylinder to use my own cores?
Ordered with cylinders, it ships with conventional 6-pin cylinders in the C keyway. There is also a less-conventional-cylinder option if you key the building on your own cores or a restricted system, which is the usual choice for a facility already standardized on a keyway. Because this is a double cylinder function, you're supplying or ordering two cylinders per lock, not one. Keying is called out as keyed different or keyed alike when you order.
6) Does the Schlage LV9071 have a deadbolt?
No deadbolt. The LV9071 is a non-deadbolt classroom security function: security comes from the latchbolt plus an auxiliary latch that deadlocks it once the door is closed, and the outside lever locking by key. If the specification calls for a throw bolt on the classroom door, this is the wrong function and you want a deadbolt function from the L Series instead. For a standalone double cylinder deadbolt on a 2-3/4 inch backset, the Sargent 4874 from the 4870 Series is the mortise deadbolt we carry.
7) What is the closest Grade 1 mortise classroom lock to the Schlage LV9071 from another manufacturer?
The Corbin Russwin ML2003 is a Grade 1 mortise classroom lockset built for 1-3/4 inch doors, and the Cal-Royal NM8070 is a heavy duty Grade 1 classroom mortise lockset with auxiliary deadlatch, also for 1-3/4 inch doors. Both are mechanical classroom-function mortise locks in the same door thickness as the LV9071, which is a Grade 1 classroom security mortise lock for 1-3/4 inch doors. The distinguishing feature of the LV9071 is the Vandlgard free-wheeling outside lever, which lets the outside lever rotate freely when locked instead of transmitting force into the lock case; neither the ML2003 nor the NM8070 is described with a free-wheeling trim feature.
8) Can teachers lock a classroom door from inside without stepping into the corridor? What lock does that?
The Schlage LV9071 is locked by key from either side, so a teacher can secure the outside lever with a key from within the room; the inside lever always retracts the latchbolt for immediate egress. If a keyless lockdown is preferred, the BEST 45HCA series mortise lockbody is offered in an Intruder function, and the TownSteel FME-4000 is a Grade 1 heavy duty electronic intruder classroom mortise lockset with RFID technology for 1-3/4 inch doors. Intruder-function locks are operated from the inside without a key; the LV9071 lockdown is key-operated and entirely mechanical.
9) What is the electronic equivalent of a Schlage LV9071 classroom mortise lock for a school going to credentials?
The TownSteel FME-2000 is a Grade 1 heavy duty mortise lockset with RFID technology in a classroom function for 1-3/4 inch doors, matching the LV9071 on grade, function and door thickness while reading a credential instead of a key. The Alarm Lock DL3500CR Trilogy is a Grade 1 electronic classroom mortise lock with 300 user codes for 1-5/8 to 1-7/8 inch doors, and the DL2700CR Trilogy T2 is a Grade 1 electronic classroom mortise lock with a weatherproof design over the same 1-5/8 to 1-7/8 inch range. The LV9071 is a mechanical lock with a conventional 6-pin C keyway cylinder.
10) The door is 1-5/8 inch thick. Will a Schlage LV9071 work, or do I need a different lock?
The LV9071 is specified for 1-3/4 inch door thickness. For a 1-5/8 inch door, the Alarm Lock Trilogy mortise locks cover 1-5/8 to 1-7/8 inches: the DL3500CR in Grade 1 classroom function with 300 user codes, the DL2700CR Trilogy T2 in Grade 1 classroom function, and the DL4500 in Grade 1 deadbolt function with 2,000 user codes and a privacy keypad. All three are electronic keypad locks rather than key-operated mechanical locksets.
11) We need an anti-ligature mortise lock for a behavioral health unit. Does the LV9071 fit, and what else is there?
The TownSteel MRX-L-01 is a Grade 1 heavy duty anti-ligature lever mortise lockset in stainless steel with passage function for 1-3/4 inch doors, and the MRX-A-01 is a Grade 1 heavy duty ligature resistant arch trim mortise lockset in satin stainless steel, also passage function for 1-3/4 inch doors. The Marks USA 5PDN is a Grade 1 hospital passage mortise push/pull paddleset that is ligature resistant and ADA compliant in satin stainless steel. All three are passage function with no keyed locking; the LV9071 is a keyed classroom security lock, and the Schlage L Series offers Gold Standard ligature resistant trim for behavioral health applications as a separate trim option.
12) Baldwin 6301 and 6310 mortise lock bodies are listed at 2-1/2 inch backset. Can I swap one into a Schlage L Series prep?
The Baldwin 6301 entry/apartment and 6310 entry/storeroom mortise lock bodies use a 2-1/2 inch backset. The LV9071 uses a 2-3/4 inch backset with a case measuring 4-7/16 inches by 6-1/16 inches by 1 inch. A different backset places the spindle and cylinder holes at different distances from the door edge, so the two are not interchangeable in the same door prep without new boring. The Baldwin 6301 is offered knob by knob and as the 6301LS lever by lever, both for doors 1-3/4 inch and over; the 6310 and the right hand reverse 6310190RRLS lever set cover 1-3/8 inch and over.
13) We key our building on interchangeable cores. Which mortise locks accept an IC core?
The Cal-Royal NM8080 Grade 1 storeroom mortise lockset is offered with an interchangeable core option for 1-3/4 inch doors. The Schlage LV9071 ships standard with a conventional 6-pin cylinder in the C keyway and can also be ordered less cylinder, so an interchangeable core of your own keyway can be installed; the L9000 case is certified Grade 1 operational with Grade 2 security using FSIC interchangeable cores and Grade 3 security with SFIC cores.
14) The door is fire rated. Which mortise locks are listed for fire doors?
The Falcon MA101 Grade 1 heavy duty mortise passage lock carries a fire rating, and the Schlage Electronics LEMD-GRW ENGAGE wireless mortise lock and LEBMB-ADD mobile enabled mortise lock are both rated for 3 hour fire doors. The Schlage L9000 latch is UL listed for 3 hour fire doors and UL/cUL listed for A label single doors up to 4 feet by 10 feet and pairs up to 8 feet by 10 feet, with the letter F and UL symbol on the latch front indicating the listing.
15) What strike comes with the Schlage LV9071 and will it work in my existing frame cutout?
The standard strike is the 10-072, a 1-1/4 by 4-7/8 inch square corner box strike with a 1-3/16 inch lip. That is the standard ANSI mortise strike footprint, so a frame already prepped for a mortise lock in the same family takes it without rework. Round corner frames or a different lip length for a deep stop condition need the strike changed rather than the lock.
16) Will Schlage LV9071 levers match the exit devices and other locks already installed in my building?
They will. All L Series levers suite with Von Duprin exit devices and with the related L Series products LE, LM9200, LM9300 and LT, so a corridor running exit devices on the stair doors and mortise locks on the classrooms reads as one hardware set. Finish is the other half of that match, and eight are offered here: bright brass, satin brass, antique brass, satin bronze, oil rubbed bronze, bright chrome, satin chrome and satin stainless steel.
17) Should I buy a mechanical classroom security mortise lock or go electronic for a school retrofit?
The LV9071 is entirely mechanical, no power, no batteries, no head end. If your requirement is simply that a teacher can key-lock the door from inside and the door never fails to secure because a battery died, mechanical is the shorter path and there is nothing to commission. Where you need audit trail, credentials or remote lockdown, the electronic classroom mortise locks are the alternative: the TownSteel FME-2000 Series is a Grade 1 RFID classroom mortise lock for 1-3/4 inch doors, and the FME-4000 Series adds an electronic intruder classroom function. Alarm Lock's DL3500CR is a Grade 1 keypad classroom mortise lock, though it is specified for 1-5/8 to 1-7/8 inch doors rather than a flat 1-3/4.
18) Does the Schlage LV9071 meet ADA and Buy American requirements for a public school or government building?
Both are covered. The L Series meets ADA requirements and meets the Buy American Act. For the California Referenced Standards Code, all levers with a return to door of 1/2 inch or less comply, so lever design matters on that one. It also carries Miami-Dade NOAs and Florida Building Commission listings, which is what you need on the specification for a Florida institutional opening.
19) Can you pull the lever off a Schlage LV9071 and defeat the lock?
The L Series uses a security blocking hub that prevents picking the lock by removing the levers, which is one of the standard attacks on a mortise lockset in a public building. The lock case is cold rolled steel with zinc dichromate plating, and it is a heavy duty commercial product rather than a light commercial one. If you want a higher cylinder attack rating on top of that, the L Series accepts a UL437 listed cylinder by specifying a Primus 20-500 Series cylinder.
20) What trim do I have to pick when ordering a Schlage LV9071, and what is the difference between the rose and escutcheon options?
Four trim designs are offered: A and B wrought rose, L full face escutcheon, and N escutcheon. A rose is a small round plate around the lever, so more of the door face shows and there is less to catch abuse. An escutcheon is a long plate covering the lever and the cylinder together, which is what most institutional specs call for because it hides the mortise prep and gives a heavier look. Trim comes the same on both sides of the door with a coordinating latch and strike, so you order one design and get a matched pair.
21) Can I get a run of Schlage LV9071 locks keyed alike so one key opens every classroom on a floor?
Keyed alike is one of the ordering choices, alongside keyed different, which is the standard. Keyed alike is the usual call for a wing or a floor where one master should turn every classroom. There is also a free text field for a special cylinder or keying requirement if you're feeding an existing masterkey system or a restricted keyway, and a less cylinder option if your locksmith is supplying and pinning the cores.
22) Is a Sargent 4874 double cylinder mortise deadbolt a substitute for the LV9071 double cylinder classroom lock?
No. The Sargent 4874 is a double cylinder mortise deadbolt with a 2-3/4 inch backset from the 4870 Series, a bolt-only device with no lever and no latchbolt. The LV9071 is a non-deadbolt classroom security lockset: the latchbolt is retracted by the lever from either side unless the outside is locked by key, an auxiliary latch deadlocks the latchbolt when the door closes, and the inside lever is always free for immediate egress. The two share the double cylinder keying description and the 2-3/4 inch backset but do different jobs on the door.
23) For an office or storeroom door that does not need classroom function, what mortise lock should I use instead of the LV9071?
For a storeroom opening where the outside lever stays locked at all times, the Accentra 8805FL is a Grade 1 storeroom mortise lock with an Arcadia lever from the 8800 Series, and the Cal-Royal NM8080 is a heavy duty Grade 1 storeroom mortise lockset with an interchangeable core option for 1-3/4 inch doors. For an office door where the occupant controls locking, the Cal-Royal NM8050 is a heavy duty Grade 1 office/entrance mortise lockset with auxiliary deadlatch for 1-3/4 inch doors, and the Hager 3850E is a Grade 1 office mortise lock with lever and escutcheon, non-keyed, with a 2-3/4 inch backset. The LV9071 is a classroom security function keyed on both sides.
24) What mortise lock do I use for a dormitory corridor door instead of a classroom lock?
The Sargent 7925 is a Grade 1 heavy duty dormitory exit function mortise lock with rose trim and a single cylinder deadbolt, from the 7900 Series. The dormitory function carries a deadbolt; the LV9071 is a non-deadbolt classroom security function whose latchbolt is deadlocked by an auxiliary latch when the door closes. Both are heavy duty Grade 1 mortise locks with lever or rose trim.
25) Which mortise lock should I put on a door that only needs latching, no key?
The Falcon MA101 is a Grade 1 heavy duty mortise passage lock with field reversible operation and a fire rating, from the MA Series. The Hager 3810S is a Grade 1 passage mortise lock with rose and a 2-3/4 inch backset for 1-3/4 to 2-1/2 inch doors, and the 3810E is the same passage lock with escutcheon trim. The LV9071 is a keyed classroom security lock with a conventional 6-pin C keyway cylinder; passage locks carry no cylinder at all.
26) Are Emtek mortise entrance locksets an alternative to a Schlage LV9071 on a commercial classroom door?
No. The Emtek 3019 Brisbane, 3102 Memphis, 3104 Hamilton and 3106 Manhattan mortise entrance locksets are dummy function, meaning fixed trim with no operating latch or locking mechanism. The LV9071 is a commercial Grade 1 keyed classroom security mortise lock whose latchbolt is retracted by the lever and deadlocked by an auxiliary latch. Dummy sets are used on inactive leaves and closet doors.
27) Do I have to buy handed locks, or is there a mortise lock that works on both swings?
The Schlage LV9071 is field reversible, so the same lock serves either hand; handing only needs to be specified for the 12 lever design. The BEST 45H series heavy duty mortise lock body in public entrance function is also field reversible, and the Falcon MA101 Grade 1 heavy duty mortise passage lock is field reversible as well. Baldwin's 6310190RRLS, by contrast, is supplied as a right hand reverse lever set.
28) We want mobile and card access on classroom doors. What mortise locks read credentials, and how do they compare on grade?
The Schlage Electronics LEMD-GRW is a Grade 1 ENGAGE Series wireless mortise lock with a 125 kHz proximity reader and mobile enabled deadbolt with LED, Greenwich trim, right hand, rated for 3 hour fire doors. The LEBMB-ADD is a Grade 2 mobile enabled mortise lock with push button and LED covering privacy, office and apartment functions for 1-3/4 inch doors, also 3 hour fire rated. The Dormakaba Saffire LX-I-M002 is an electronic RFID mortise lockset with BLE mobile access at BHMA Grade 2. The LV9071 is a mechanical Grade 1 classroom security lock with no electronics.
29) Which mortise lock do I specify for an access control door that needs to unlock from the card reader system?
The Command Access ML190 is a motorized mortise lock with field selectable EL/EU operation and 24VDC power in a heavy-duty storeroom function, and the BEST 45HW is a heavy duty wired electromechanical mortise lock with 12V/24V operation. The Schlage LV9071 is a mechanical lock with no electrification; within the L Series, electrified functions auto detect 12V/24V DC, are customer-selectable EL/EU, and offer RX, DPS, latchbolt monitor and deadbolt monitor.
30) Is a Codelocks CL2255 a lighter-duty option for a classroom door?
The Codelocks CL2255 is a medium duty electronic tubular mortise latch in brushed steel from the CL2000 Series. The LV9071 is a heavy duty Grade 1 mortise lock with a full mortise case measuring 4-7/16 inches by 6-1/16 inches by 1 inch. A tubular latch and a full mortise case require different door preps, and the two sit at different duty levels, so the CL2255 suits lower-traffic interior openings rather than a heavy duty classroom application.
31) Do I need a privacy lock or a classroom lock for a restroom or single-occupancy room?
For privacy openings, the Cal-Royal NM8440 is a heavy duty Grade 1 privacy mortise lockset with deadbolt for 1-3/4 inch doors, and the Hager 3840S is a Grade 1 privacy mortise lock with a 2-3/4 inch backset for 1-3/4 to 2 inch doors. Privacy sets lock from inside the room without a key. The LV9071 is a classroom security function locked by key from either side, intended for openings where a keyholder controls the outside lever.
32) Which classroom mortise locks are offered in stainless and bronze finishes for matching existing hardware?
The Schlage LV9071 is offered in 605 bright brass, 606 satin brass, 609 antique brass, 612 satin bronze, 613 oil rubbed bronze, 625 bright chrome, 626 satin chrome and 630 satin stainless steel, across nine lever designs and four rose or escutcheon options. Among classroom-function comparables, the TownSteel MRX-A-01 ligature resistant mortise lockset is a satin stainless steel unit, and the Marks USA 5PDN hospital passage paddleset is likewise satin stainless steel. For a facility standardizing on brass or bronze trim, the LV9071 finish range covers those tones directly.
33) What is the difference between the Schlage LV9071 and a keypad mortise lock with key override like the BEST 45HZ or Accentra nexTouch?
The BEST 45HZ EZ Series is an electronic keypad mortise lock with a key override function, and the Accentra NTM623-NR nexTouch Generation 3 mortise lock uses a capacitive touchscreen keypad with no deadbolt and a cylinder override. Both grant everyday access by code and keep a cylinder as backup. The LV9071 grants access by lever and locks the outside lever by key from either side, using a conventional 6-pin cylinder in the C keyway as its only credential.
34) Will a Marks USA 21AC or 22AC ornamental iron mortise lock work on a standard 1-3/4 inch classroom door?
No. The Marks USA 21AC and 22AC are entrance double cylinder ornamental iron mortise locks with round knobs, both specified for 1 inch door thickness. The LV9071 is specified for 1-3/4 inch doors with a 4-7/16 inch by 6-1/16 inch by 1 inch case. The Marks units are narrow-stile ornamental iron gate and door applications; despite sharing the double cylinder keying, they are not a fit for a standard 1-3/4 inch commercial door.
35) Are Sargent 130KB and 130W thumbturns a way to add inside locking to a mortise lock?
The Sargent 130KB is a standard duty mortise thumbturn from the 8200 Series and the 130W is a standard duty mortise thumbturn with a round backplate from the 7800 Series. Both are trim pieces for a mortise lock body, not locks in themselves. The LV9071 is a complete heavy duty Grade 1 mortise lockset supplied with lever, rose or escutcheon, latch and a 10-072 square corner box strike, and its locking is done by key from either side rather than by a thumbturn.
