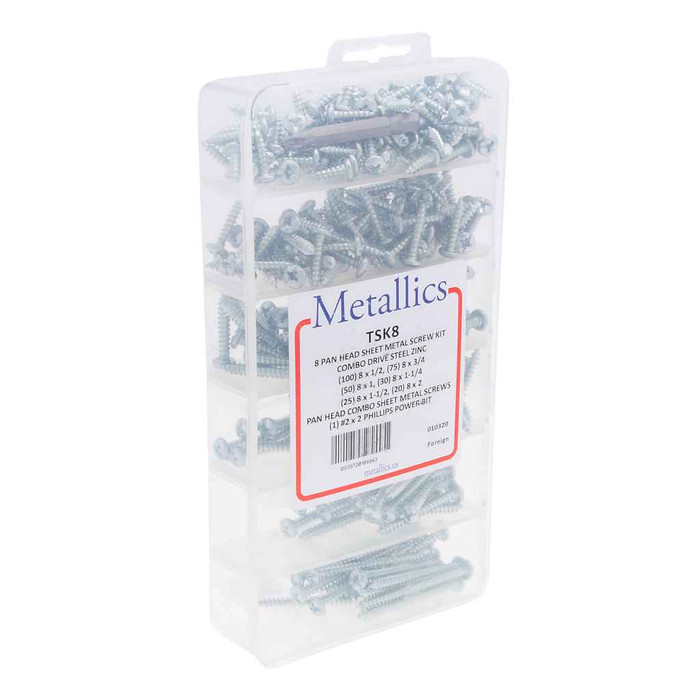

Screws 8 Pn Cd TS Kit St-zn (Trey 1)
Kit Components
- Power Bits and Drivers
- (100) 1/2, (75) 3/4, (50) 1, (30) 1-1/4, (25) 1-1/2, (20) 2
- #2 Phillips Power Bit - 100P2B
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Division:
- Electrical H1
- Drive Type:
- Slotted/Phillips
- Fastener Head Type:
- Pan/Hex
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Language Code:
- EN
- Number Of Pieces:
- 301
- Order Minimum Imperial:
- 1
- Order Minimum Uom Imperial:
- EA
- Pack Type:
- Tray
- Product Group:
- Fasteners
- Product Height:
- 1.25 in
- Product Length:
- 8 in
- Product Weight:
- 1.66 lbs
- Product Width:
- 4.62 in
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Screws
- Product Type:
- Sheet Metal Screw kit
- Type2:
- Sheet Metal Screw kit
- Product Finish:
- Zinc
- Product Details:
- Sheet Metal Screw kit
- Product Material:
- Steel
Metallics TSK8 – Frequently Asked Questions
1) What lengths and quantities come in the Metallics TSK8 sheet metal screw kit?
The TSK8 tray holds 300 #8 sheet metal screws plus a driver bit: 100 at 1/2 inch, 75 at 3/4 inch, 50 at 1 inch, 30 at 1-1/4 inch, 25 at 1-1/2 inch, and 20 at 2 inch. Total piece count is 301, which is the six screw lengths plus the #2 Phillips power bit (100P2B).
2) Does the Metallics TSK8 screw kit qualify for a Buy American or ARRA funded project?
No. The TSK8 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. For a federally funded job carrying domestic sourcing requirements you need a domestically produced fastener instead of this assortment.
3) Are these #8 screws pan head or hex head?
The assortment covers both. Metallics lists the TSK8 head types as pan and hex, so you get the low-profile pan head for mounting plates and devices flush, and hex heads where you want to run them with a socket driver instead of a bit.
4) Will zinc plated steel screws like these hold up in a damp mechanical room or outdoors?
These are steel with a zinc plating, which is a dry-interior and light-duty finish. Fine for panel work, strut, device boxes and duct in conditioned space or a typical mechanical room, but for exterior, wet, coastal or chemically aggressive locations you want stainless or hot-dip galvanized fasteners instead.
5) What kind of work is the Metallics TSK8 kit meant for?
Metallics calls out the electrical, plumbing, heating and air conditioning trades. In practice that is sheet metal screw work: securing device plates and enclosures, fastening duct and plenum sections, mounting straps and clamps, and anchoring into light-gauge steel studs and channel. It is a service-truck and MRO assortment rather than a single-size bulk box.
6) Are these self-drilling screws or do I have to pilot drill first?
The TSK8 is a sheet metal screw assortment, not a self-drilling (Tek style) screw set. Into thin sheet or an existing knockout they thread fine, but in heavier gauge steel or channel you pilot drill first. If you want to skip the pilot hole, order self-drilling screws rather than this kit.
7) How big is the TSK8 tray and will it fit in a van drawer or tool bag?
The tray measures 8 x 4.62 x 1.25 inches and weighs 1.66 lbs, so it drops into a standard van shelf bin, a drawer in a rolling cabinet, or the bottom of a tool bag without taking a full shelf. It is a tray pack, not a loose bag, so the lengths stay separated.
8) Can I buy a single TSK8 kit, or is there a case minimum?
One tray is the minimum. The TSK8 is sold each with an order minimum of 1, so you can stock a single kit per truck instead of committing to a case.
