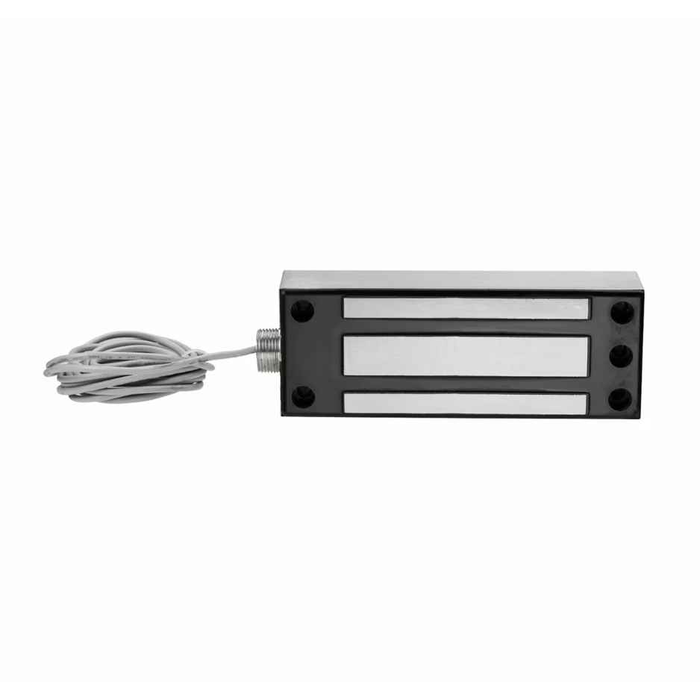

Securitron M62FG-SASM Heavy-Duty Magnalock for Gates 1200 lbs Holding Force

Securitron M62FG-SASM Heavy-Duty Magnalock for Gates 1200 lbs Holding Force

(No reviews yet) Write a Review

Model: M62FG-SASM

In Stock (leaves warehouse same day if ordered before 3pm ET)

$698.00
$500.92
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Securitron M62FG-SASM Heavy-Duty Magnalock for Gates – 1,200 lbs Holding Force

The M62FG-SASM is the only heavy duty Magnalock specifically designed to secure and protect gates.
This weatherproof unit delivers 1,200 lbs of holding force and comes equipped with conduit fittings and a special shock absorbing strike mount (SASM).
This unique design dramatically prolongs the life of the lock, the gate and other hardware by controlling excessive impact between the strike plate and the magnet.
The SASM is also available as a separate retrofit kit and is compatible with M32, M62 or M82 Magnalock strike plates for areas prone to excessive force closures or slamming.

Features

Standard Features

  • Flexible bracket options for swinging or sliding applications
  • Fully sealed for weatherproof operations
  • Includes universal threaded conduit fitting 1/2" [12.7mm] female – 3/4" [19mm] male
  • 10 ft. [3.05m] of jacketed, stranded conductor cable
  • Noise suppression with built-in MOV
  • Automatic dual-voltage —no field adjustment required
  • Rust resistant—all ferrous metal surfaces plated for durability
  • MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Optional Features

  • B Patented BondSTAT magnetic bond sensor
  • D Integrated Door Position Switch (DPS)
  • F Face drilled
  • G Gate conduit
  • SASM Shock absorbing strike mount—shock absorption and rebound assistance for proper gate alignment
  •

Specifications

Certifications

  • UL 10C Listed
  • CAN4-S104, CAN/ ULC-S533 Listed
  • ANSI/BHMA A156.23, Grade 2;
  • E08511-1000 Compliant
  • CSFM—California State Fire Marshal Approved

Dimensions

  • 8"L x 1-3/4"D x 3"H
    [203.2mm L x 44.45mm D x 76.2mm H]

Electrical

  • 250 mA at 12 VDC
  • 150 mA at 24 VDC

Holding Force

  • 1,200 lbs
    [544kg]

Operating Temperature

  • -40������������������������������������������������������������������������������������������������������������ to 140������������������������������������������������������������������������������������������������������������F [-40������������������������������������������������������������������������������������������������������������ to 60������������������������������������������������������������������������������������������������������������C]
  • Indoor or Outdoor use



Resources

Manufacturer Resources

Product Specs

Subcategory:
Electromagnetic Locks
Product Type:
Gate Locks
Product Group:
Electronic Access Controls
Product Subgroup:
Electromagnetic Locks
ANSI/BHMA:
A156.23
Grade:
Grade 2
Commercial/Residential:
Commercial
Holding Force:
1200
Product Model:
M62FG-SASM
Product Voltage:
12/24VDC
Product Category:
Electronic Access Controls
Department:
Door Hardware

Securitron M62FG-SASM – Frequently Asked Questions

1) Will a Securitron M62FG-SASM Magnalock hold up on an outdoor gate in winter?
Yes. The M62FG-SASM is fully sealed for weatherproof operation and rated for indoor or outdoor use, with all ferrous metal surfaces plated for rust resistance. It is built specifically to secure gates rather than adapted from an interior door lock.
2) Will the M62FG-SASM mount on a sliding gate or only a swing gate?
Both. The M62FG-SASM ships with flexible bracket options covering swinging or sliding gate applications, so the mounting is decided at install rather than by picking a different model.
3) What voltage and current does the Securitron M62FG gate maglock need?
It runs 12 or 24 VDC and switches automatically, so there is no field jumper or adjustment to set. Draw is 250 mA at 12 VDC and 150 mA at 24 VDC. Size your power supply and the gate run for whichever rail you are on; the automatic dual voltage means one part number works on either system.
4) How do I run wire to a gate maglock without exposed cable?
The M62FG includes a universal threaded conduit fitting, 1/2 inch (12.7mm) female to 3/4 inch (19mm) male, plus 10 feet (3.05m) of jacketed stranded conductor cable. The G in the model designates gate conduit. That lets you land the lock straight into conduit on the gate post instead of leaving whip exposed to weather and tampering.
5) How much space do I need on the gate frame for a 1200 lb Securitron gate magnet?
The lock body measures 8 inches L x 1-3/4 inches D x 3 inches H (203.2mm x 44.45mm x 76.2mm), and it delivers 1,200 lbs (544kg) of holding force in that footprint. Check the frame member and the bracket standoff against those numbers before you drill.
6) Does the Securitron M62FG-SASM meet code for a fire rated or fire marshal inspected opening?
It is UL 10C Listed, listed to CAN4-S104 and CAN/ULC-S533, compliant with ANSI/BHMA A156.23 Grade 2, E08511-1000 compliant, and approved by the California State Fire Marshal. That is the paperwork an institutional or municipal spec usually asks for on an electromagnetic lock.
7) What else can I buy instead of the Securitron M62FG gate maglock?
Two other gate magnets we carry are close: the DynaLock 2013 Series gate lock, also rated 1200 lb, is the direct holding-force equivalent, and the Schlage Electronics M490G is a heavy duty gate maglock at 1500 lbs if you want more holding force on a large or heavily used gate. What separates the M62FG-SASM is the shock absorbing strike mount and the built-in gate conduit fitting, which matter on a gate that slams.
8) What is the closest equivalent to the Securitron M62FG-SASM gate magnetic lock at the same holding force?
The DynaLock 2013 Series electromagnetic gate lock is also rated at 1200 lb holding force, matching the M62FG-SASM's 1200 lbs. Both are built for gate applications rather than interior door frames. The Securitron unit carries ANSI/BHMA A156.23 Grade 2 and comes with the SASM shock absorbing strike mount, which controls impact between the strike plate and the magnet on gates that slam.
9) Is there a lighter-duty gate maglock for a low-traffic pedestrian gate instead of a 1200 lb unit?
The DynaLock 2513 Series Mini-Mag gate lock is rated 650 lb holding force, roughly half the 1200 lbs of the Securitron M62FG-SASM. The Mini-Mag body is the smaller of the two, which matters on narrow gate frames where the 8 in. long by 1-3/4 in. deep by 3 in. high M62FG housing will not sit. The M62FG-SASM adds the shock absorbing strike mount and fully sealed weatherproof construction for exposed installations.
10) What gate maglock has more holding force than 1200 lbs?
The Schlage Electronics M490G gate electromagnetic lock is rated 1500 lbs holding force and is classed heavy duty, above the 1200 lbs of the Securitron M62FG-SASM. Specifying the higher force is common on wide vehicle or perimeter gates carrying more leaf weight. The M62FG-SASM answers a different problem on gates that slam, using its shock absorbing strike mount to control impact between the strike plate and the magnet.
11) Can I use a DynaLock 2013 in place of a Securitron M62FG-SASM on a gate that slams shut?
The DynaLock 2013 Series is a 1200 lb gate electromagnetic lock, the same holding force class, but the shock absorbing strike mount is a Securitron feature: the SASM provides shock absorption and rebound assistance for proper gate alignment and is also sold as a separate retrofit kit compatible with M32, M62 and M82 Magnalock strike plates. For an opening prone to excessive force closures, that mount is the reason to stay with the M62FG-SASM.
12) Should I order the BondSTAT monitoring version of the M62FG-SASM?
Two builds are offered: standard, and one with the BondSTAT magnetic bond sensor plus an integrated door position switch. BondSTAT reports actual magnetic bond rather than just contact, and the DPS reports gate position. If your access control panel or guard station needs to know the gate is genuinely secured and not just closed, order the monitored version, it cannot be added later without swapping the lock. For a gate that simply releases on a card read with no status reporting, standard is enough.
13) What temperature range can an outdoor gate maglock take?
Minus 40 to 140 degrees F (minus 40 to 60 C). That covers northern winters and full sun on a metal gate in the desert, which is why the M62FG carries an indoor or outdoor rating rather than a conditioned-space one.
14) Is a 1200 lb maglock overkill for a small pedestrian gate?
Often, yes. For a light pedestrian or courtyard gate the DynaLock 2513 Series Mini-Mag gate lock at 650 lb is the smaller option and asks less of the gate frame. Step up to a 1200 lb unit like the M62FG-SASM when the gate is heavy, exposed to wind, or takes hard closures, since that is where the shock absorbing mount earns its place.
15) Do the alternatives to the Securitron M62FG-SASM include bond sensing and door position monitoring?
The Securitron M62FG-SASM is offered in a standard configuration and in a BondSTAT magnetic bond sensor plus integrated door position switch configuration, so an access control head end can read both magnet bond and gate position from the lock itself. The DynaLock 2013 Series and 2513 Series Mini-Mag gate locks and the Schlage Electronics M490G are the comparable gate maglocks; where the panel requires bond and position inputs, confirm the monitoring option before substituting.
16) Which gate maglock works on both 12 and 24 volt DC without setting a jumper?
The Securitron M62FG-SASM is automatic dual voltage at 12/24VDC with no field adjustment required, drawing 250 mA at 12 VDC and 150 mA at 24 VDC. That matters when substituting for the DynaLock 2013 Series or the Schlage Electronics M490G gate maglock on an existing power supply, since the Securitron unit takes either bus as wired.
17) Will electrical noise from the maglock coil upset my access control board?
The M62FG has a built-in MOV for noise suppression, so the inductive kick when the coil drops is clamped at the lock. That is one less external diode or suppressor to add at the panel on a long gate run.
18) Is the M62FG-SASM rated for commercial or residential gates?
Commercial. It is a Grade 2 device under ANSI/BHMA A156.23 and built as a heavy duty gate lock, which is the level a property manager, integrator or facility standardizing across multiple gate openings would spec.
