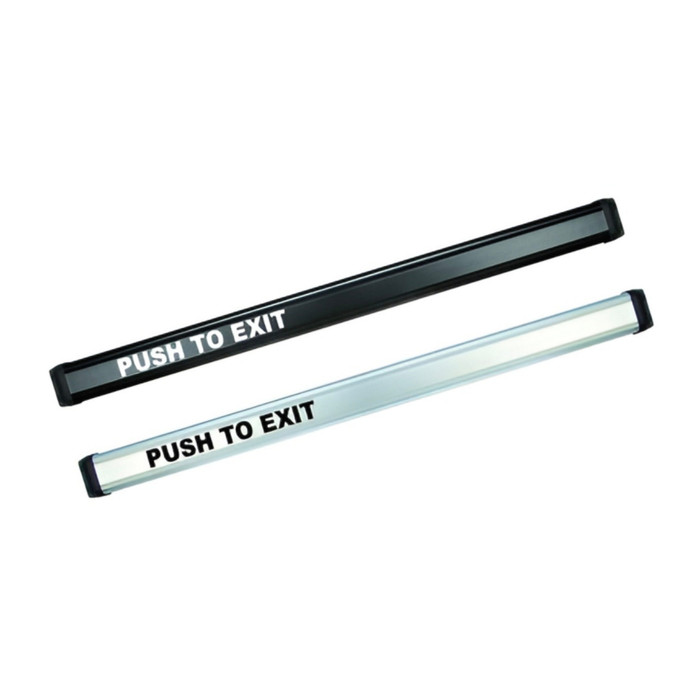

SECURITRON WEMB WATER RESISTANT ELECTROMECHANICAL EXIT BAR
The Electromechanical Exit Bar (EMB) is designed for use on magnetically locked, non-fire-rated doors - or as an initiate device for a delayed egress timer. Pushing the bar activates internal switches which release the lock. Optional waterproof switches are available which allows the EMB to function in outdoor applications. Meets "no special tools or knowledge" code requirements.
FEATURES AND BENEFITS
Product Features
- Low profile design requires only 1/4" movement for activation
- Three standard lengths: 36", 42" or 48"
- Can be field cut to accommodate non-standard openings up to 48"
- Uses same mounting pattern as the TSB-3 and DSB
- Retrofits to most competitors mounting patterns
- Activates a DPDT 5 Amp rated output when pushed which will allow free egress or initiate the delay on an exit delay timer
- Four individual switches ensure reliable, redundant operation
- All metal construction
- 16 ft. [4.8m] 22AWG 6 conductor cable and armored door cord included
- UL Listing
- MagnaCare® lifetime replacement, no fault warranty
SPECIFICATIONS
Specification Data
- Operating Temperature: -4 to +185F [-20 to +85C]
- Shipping Weight: 7 to 9 lbs. depending on length
Models
| Part # | Description |
| EMB-BK | EMB - 36", Black Anodized |
| EMB-BK-42 | EMB - 42", Black Anodized |
| EMB-BK-48 | EMB - 48", Black Anodized |
| EMB-CL | EMB - 36", Clear Anodized |
| EMB-CL-42 | EMB - 42", Clear Anodized |
| EMB-CL-48 | EMB - 48", Clear Anodized |
| WEMB-BK | EMB - 36", Black Anodized, Weather-resistant |
| WEMB-BK-42 | EMB - 42", Black Anodized, Weather-resistant |
| WEMB-BK-48 | EMB - 48", Black Anodized, Weather-resistant |
| WEMB-CL | EMB - 36", Clear Anodized, Weather-resistant |
| WEMB-CL-42 | EMB - 42", Clear Anodized, Weather-resistant |
| WEMB-CL-48 | EMB - 48", Clear Anodized, Weather-resistant |
| TCP-BK | Touch Bar Cover Plates - Set of 2, Black Anodized |
| TCP-CL | Touch Bar Cover Plates - Set of 2, Clear Anodized |
Order any Electromechanical Bar listed with waterproof switches by adding the letter "W" to the front of the part number Example: WEMB-CL-42. Order any EMB listed as a dummy bar only (no electronics, no releasing function) by adding the letter "D" to the front of the part number Example: DEMB-CL-42.
TCP covers unwanted mounting holes from previously installed exit bars, strengthens the mounting area and provides a clean look.
EMB-TDM allows through-bolting of EMB on doors greater than 1-3/4" thick.
CERTIFICATE & LISTING
- ANSI/UL 294 Listed
- CAN/ULC-S533
DOWNLOAD AND RESOURCES
Manufacturer Resources
Product Specs
- Series:
- EMB Series
- Warranty:
- Lifetime Replacement
- Mounting Hole Pattern:
- TSB and DSB
- Product Group:
- Exit Devices and Trim
- Product Subgroup:
- Exit Devices - Rim
- Product Type:
- Exit Devices - Rim
- Subcategory:
- Egress Bars and Handles
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Product Model:
- SEC-WEMB
- Product Voltage:
- 12/24VDC
- Door Thickness Range:
- 2-1/4"
- Product Height:
- 3"
- Product Category:
- Exit Devices and Trim
- Product Width:
- 2-3/4"
