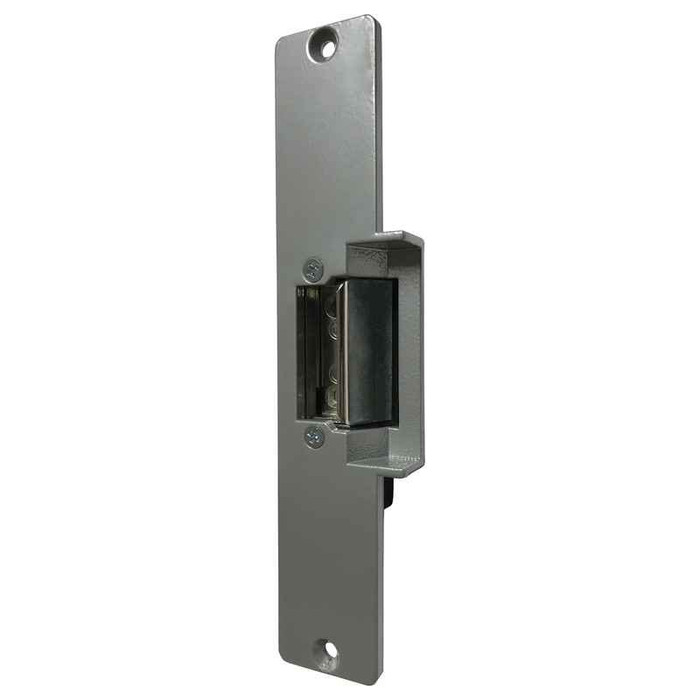

Trine Trine 2002RS Series - Fail-Safe, Adjustable Light Commercial Electric Strike 7-15/16" x 1-7/16" Face Plate TRN-2002RS

Trine 2002RS Series - Fail-Safe, Adjustable Light Commercial Electric Strike 7-15/16" x 1-7/16" Face Plate

(No reviews yet) Write a Review

Model: 2002RS-12DC
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$181.78
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Trines Adjustable 2000 Series Electric Strikes

Trine 2002
For use in new or replacement aluminum or hollow metal jamb installations. Auxiliary lever ramps for use with locksets containing dead-locking levers. Use with latch bolts having up to 5/8” throw, Based on 1/8” door gap.

Face Plate 7-15/16” x 1-7/16 -- Auxiliary Ramp Height 2-7/8” -- Mortise Backset 1-9/16” -- Cavity Depth 9/16” -- Cavity Width 5/8” -- Cavity Height 1-11/16”

Available Finishes: 2002 (Aluminum Powder Coated) -- 2002DB (Dark Bronze Powder Coated)
Options: RS (Fail Safe) -- on DC only -- add “RS” to model #

2000 Series Features:

  • Allows adjustment for wider latch bolts & poorly aligned doors & locksets.
  • 1/8” Horizontal Latch Adjustment.
  • Releases Under Slight Door Pre-Load.
  • 500,000 Life Cycles -- Holding Force - 900 lbs.
  • Solid Cast Latch - Chrome Plated.
  • Non Handed Operation.
  • Screw Terminals - Quick Connection.

2000 Series Electrical Characteristics:

Voltage Current/Amps Ohms (Ω) Sound Duty
6-14VAC 0.44 - 1.10 8.5 Buzz Intermittent
6-14VDC 0.70 - 1.60 8.5 Silent Continuous
16-24VAC 0.22 - 0.33 50.0 Buzz Intermittent
16-24VDC 0.32 - 0.47 50.0 Silent Continuous
12VDC 0.20 - 0.33 60.0 Silent Continuous
24VDC 0.11 - 0.47 120.0 Silent Continuous

Downloadable content:

2002 Dimensions (PDF)

Manufacturer Resources

Product Specs

Series:
2002
Product Group:
Electronic Access Controls
Product Subgroup:
Electric Strikes
Product Type:
Electric Strikes
Subcategory:
Electric Strikes
Commercial/Residential:
Commercial
Electronic:
Yes
Outdoor Rated:
No
Lock Type:
Mortise or Cylindrical
Fail-safe / Fail-secure:
Fail-Safe
Face Plate:
7-15/16"
Fire Rating:
No
Product Category:
Electronic Access Controls
Department:
Door Hardware

Trine 2002RS-12DC – Frequently Asked Questions

1) What does the RS suffix mean on the Trine 2002RS, and can I run it on AC power?
RS is Trine's fail-safe option: the strike unlocks when power drops, which is what you want on an egress or free-exit side controlled by a fire alarm relay or access system. Fail-safe is DC only. Run it on a filtered, regulated DC supply at the voltage you order. On DC the 2000 Series runs silent and is rated continuous duty; the AC listings (6-14VAC and 16-24VAC) buzz and are intermittent duty only.
2) What size latchbolt will the Trine 2002 strike accept?
Latch bolts with up to a 5/8 inch throw, based on a 1/8 inch door gap. The keeper cavity is 9/16 inch deep, 5/8 inch wide and 1-11/16 inch high, and there is 1/8 inch of horizontal latch adjustment to take up wider bolts or a door and lockset that never quite lined up. It also has an auxiliary lever ramp 2-7/8 inches high for locksets with a deadlocking latch (the small plunger beside the main bolt).
3) Can I mortise this strike into an aluminum storefront jamb?
Yes, aluminum or hollow metal jambs, new construction or replacement. The faceplate is 7-15/16 by 1-7/16 inches and the mortise backset is 1-9/16 inches, so the jamb needs enough depth behind the face for that pocket. Verify your tube depth before you cut. If your prep is the standard ANSI 4-7/8 by 1-1/4 inch cutout instead, this faceplate will not cover it: an Adams Rite 7100 or 7160 for aluminum jambs, or the Dortronics 3300 with an ANSI 4-7/8 by 1-1/4 inch plate, matches that prep.
4) Will the Trine 2002 work with a mortise lock, or only a cylindrical lockset?
Both. The 2002 accepts mortise or cylindrical locks, provided the latchbolt throw is 5/8 inch or less. The auxiliary ramp handles the deadlocking lever found on most cylindrical entry locks. It will not work with a rim exit device pullman latch; for that kind of latch look at a rim mount strike such as the SDC 30-4, built for a 3/4 inch pullman latchbolt.
5) The Trine 2002RS is not fire rated - what electric strike should I use on a fire-rated opening instead?
The Trine 2002RS carries a fire rating value of No, so it is not the part for a labeled opening. For a fire-rated door, the Von Duprin 6400 32D is a Grade 1 modular electric strike for mortise or cylindrical locks with a 3-hour UL 10C rating in fail-secure, and the Hager 2930 is a fire rated Grade 1 strike for cylindrical and mortise locks with 12/24VDC dual voltage. The Camden CX-ED1410 and CX-ED1420 'Universal' strikes are also Grade 1 ANSI fire-rated. Note that fire-rated strikes are generally fail-secure at the labeled opening, which is the opposite of the 2002RS fail-safe function.
6) The Trine 2002RS is a light commercial strike - what heavy duty Grade 1 options cover the same mortise or cylindrical locks?
The Trine 2002RS is a light commercial strike for mortise or cylindrical locks rated 500,000 life cycles with 900 lbs holding force. If the opening calls for a Grade 1 heavy duty strike, the Von Duprin 4211 32D is a Grade 1 heavy duty strike for cylindrical locks with 12/24 VDC field-selectable voltage, the Von Duprin 6210 is a Grade 1 heavy duty strike for mortise locks at 24 VDC fail-secure, and the Alarm Controls AES-100 is a Grade 1 heavy duty electric strike. Securitron's MUNL Mortise UnLatch is also a Grade 1 strike for mortise locks.
7) I need a fail-safe strike but want the option to flip it to fail-secure in the field - what are my choices besides the Trine 2002RS?
The Trine 2002RS is factory fail-safe and the RS option is offered on DC only. If you want the function selectable at the jamb, the Hager 2925 is an electric strike with a 5/8 inch latch and field reversible fail safe/secure operation, the Hager 2928 offers the same field reversible function, and the Hager 2945 is a fire rated rim exit strike with field selectable fail safe/fail secure plus a latchbolt monitor. The 2002RS handles latch bolts up to 5/8 inch throw based on a 1/8 inch door gap, the same latch projection the 2925 lists.
8) My access control panel needs to know the door is latched - does the Trine 2002RS do that, and what does if not?
The Trine 2002RS is a straight fail-safe release with screw terminals for quick connection and no monitoring output described. If you need latch or door status back to the panel, the Dortronics 3300 Series is an electric strike with a latch bolt sensing switch at 12/24VDC using a 4-7/8 inch by 1-1/4 inch ANSI prep strike plate, the Hager 2945 fire rated rim exit strike includes a latchbolt monitor, and the Camden CX-ED1799L-8 is a Grade 1 dual monitor strike supplied with eight faceplates.
9) What is the closest alternative to the Trine 2002RS for an aluminum storefront jamb?
The Trine 2002RS is built for new or replacement aluminum or hollow metal jamb installations with a 7-15/16 inch by 1-7/16 inch face plate. If your jamb prep suits a shorter ANSI-style plate instead, the Adams Rite 7100 Series is an electric strike for aluminum jambs with a flat 1-1/4 inch by 4-7/8 inch faceplate, and the Adams Rite 7160 uses the same 1-1/4 inch by 4-7/8 inch faceplate size. For hollow metal and wood jambs, Adams Rite lists the 7170 with that same faceplate. The main difference is plate length: the 2002RS plate is nearly eight inches tall, so it covers a longer cutout than the 4-7/8 inch Adams Rite plates.
10) Can I use the Trine 2002RS on an exterior gate or outdoor opening?
No. The Trine 2002RS is listed as not outdoor rated, so it belongs on interior aluminum or hollow metal jambs. For a gate or exposed opening, the Camden CX-ED1959 Series is an outdoor rated electric gate strike. If the outdoor application also needs a rim exit device latch rather than a mortise or cylindrical latch, the SDC 30-4 is a rim mount strike for a 3/4 inch Pullman latchbolt with stainless steel construction.
11) Will the Trine 2002RS work with surface vertical rod or rim exit devices?
No. The Trine 2002RS is set up for mortise or cylindrical locksets with latch bolts up to 5/8 inch throw and an auxiliary ramp for deadlocking levers. Exit device hardware needs a different keeper. For surface vertical rods, the HES Folger Adam 310-4-2 is a complete Grade 1 electric strike pac. For a rim exit device, the Hager 2945 is a fire rated rim exit strike and the SDC 30-4 is a rim mount strike for a 3/4 inch Pullman latchbolt.
12) I have a latchbolt with a 3/4 inch throw - is the Trine 2002RS still the right strike?
The Trine 2002RS is rated for latch bolts having up to 5/8 inch throw based on a 1/8 inch door gap, so a 3/4 inch throw latch is outside its range. The HES Folger Adam 310-1(X) is an electric strike body built for 1/2 inch, 5/8 inch or 3/4 inch throw latchbolts and is Grade 1 and fire rated. For a double door application with a 3/4 inch keeper, the Rockwood double door electric strike in the 310-1 family is another Grade 1 fire rated option.
13) For a fire-rated opening that needs a radius corner faceplate instead of the Trine 2002RS square plate, what should I order?
The Trine 2002RS face plate is 7-15/16 inch by 1-7/16 inch and the product is not fire rated. If the jamb prep has radius corners and the opening is labeled, the SDC 45F Series is a fire-rated electric strike with 5/8 inch latchbolt compatibility and a radius corner faceplate, which matches the same 5/8 inch maximum latch throw the 2002 Series works with.
14) Do I have to order the Trine 2002 handed for a left or right hand door?
No handing to specify. The 2000 Series is non-handed, so one part number covers both swings. That makes it easier to stock a spare across a portfolio of openings rather than keeping left and right on the shelf.
15) What finish and voltage combinations can I order the Trine 2002RS in?
Two finishes, aluminum powder coat and dark bronze powder coat, each offered at 12V and 24V. Dark bronze matches most anodized bronze storefront; the aluminum finish matches clear anodized. The latch itself is solid cast and chrome plated regardless of faceplate finish.
16) Can I use the Trine 2002 on an exterior gate or an unprotected outside door?
No. The 2002 is not outdoor rated and should stay in a protected interior or weather-sheltered jamb. For a gate or exposed location, the Camden CX-ED1959 Series is an outdoor rated electric gate strike.
17) Will the Trine 2002 release if the door is under pressure from a closer or stack pressure?
It releases under slight door pre-load, so light pressure on the latch from a closer or a stairwell pressure differential will not keep it from opening. Heavy sustained preload is still a preload; if the opening habitually binds, fix the alignment. The 1/8 inch horizontal latch adjustment is there for exactly the doors and locksets that never sat square.
18) How is the Trine 2002 wired in, and what current does the power supply need to handle?
Screw terminals on the strike, so no splicing pigtails in the jamb. On the DC side, 12VDC draws 0.20 to 0.33 amps at 60 ohms and 24VDC draws 0.11 to 0.47 amps at 120 ohms; the wider 6-14VDC band draws 0.70 to 1.60 amps at 8.5 ohms and 16-24VDC draws 0.32 to 0.47 amps at 50 ohms. Size the supply from the coil you actually order, and remember that a fail-safe strike is energized all the time, so that current is continuous, not momentary.
19) Is there an option that avoids cutting the jamb the way the Trine 2002RS 7-15/16 inch face plate requires?
The Trine 2002RS uses a 7-15/16 inch by 1-7/16 inch face plate with a 1-9/16 inch mortise backset, so the jamb has to be prepped or the existing cutout has to match. The Locknetics NC450 is a no cut electric strike, and the Camden CX-ED1689L-4 is a fire rated 'Universal' low profile strike supplied with four faceplates, which gives you more than one plate to match an existing prep.
20) What is a lower-cost strike for a 5/8 inch latchbolt if I do not need the Trine 2002RS adjustment feature?
The 2002RS earns its keep where doors and locksets are out of alignment - it gives 1/8 inch horizontal latch adjustment and an auxiliary lever ramp for deadlocking levers, handling latch bolts up to 5/8 inch throw. On a well-aligned opening that does not need that, the SDC 15 Series is a value strike for a 5/8 inch latchbolt with 12/24 VDC operation, and the RCI 15BS is an economy strike for special offset latch entry in fail-secure operation. If your latch is 1/2 inch rather than 5/8 inch, the SDC 25 Series is built for 1/2 inch latchbolt compatibility.
21) What is the difference between the Trine 2002RS and the Locknetics MS100 or MDS100?
The Trine 2002RS is a light commercial, non-handed fail-safe strike for mortise or cylindrical locks, with 1/8 inch horizontal latch adjustment, 900 lbs holding force and 500,000 life cycles, in aluminum or dark bronze powder coat. The Locknetics MS100 US32D and MDS100 US32D are both heavy duty electric strikes in a satin stainless finish designation. Choose on duty level and finish family: the Trine is a powder coated light commercial unit, the Locknetics units are catalogued as heavy duty.
22) Is the HES 1500 or 1600 a substitute for the Trine 2002RS?
They are not a like-for-like swap. The HES 1500 and HES 1600 items are electric strike accessories within those Grade 1 fire rated series, not a complete strike assembly. The Trine 2002RS is a complete fail-safe strike with a 7-15/16 inch by 1-7/16 inch face plate, screw terminals and an adjustable keeper for mortise or cylindrical locks. If you want a complete Grade 1 fire rated strike body instead, look at the HES Folger Adam 310-1(X) or the Von Duprin 6400 32D.
23) I ordered the Trine 2002RS in 12 VAC and 24 VAC - what if my panel is DC only?
The RS fail-safe option on the 2002 Series is offered on DC only, and the series electrical table covers 6-14VDC, 16-24VDC, 12VDC and 24VDC as silent continuous duty along with the AC ranges, which buzz on intermittent duty. If you want a strike that lets the installer pick the DC voltage at the door instead, the Von Duprin 4211 32D is 12/24 VDC field-selectable, the Hager 2930 offers 12/24VDC dual voltage, and the SDC 15 Series runs 12/24 VDC.
