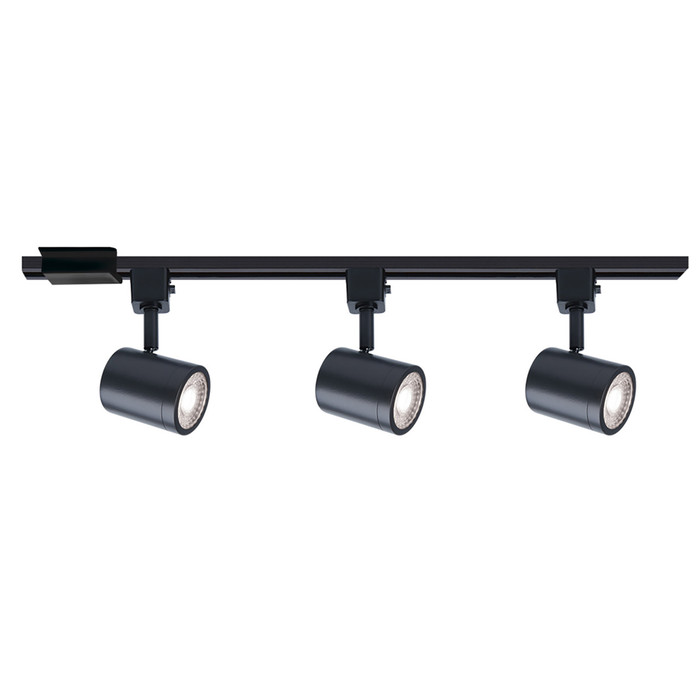

WAC Lighting Charge 8010 3-Light LED Track Kit, 5-CCT Selectable
The WAC Lighting Charge 8010 3-Light LED Track Kit delivers superior light output in a compact, unobtrusive design built for residential spaces and lower-mounted commercial applications. Each kit includes a 4ft field-cuttable H-style 3-wire track with end caps, a floating canopy power feed for connection to any 120V electrical junction box, and three powerful Charge 8010 LED luminaires with 5-CCT color temperature selectability from 2700K to 5000K. The kit is ETL & cETL listed to UL #1598 for dry locations.
Key Features
- Track Length: 4ft field-cuttable H-style 3-wire track with end caps allows the run to be trimmed to fit the installation.
- Durable Construction: Aluminum construction supports reliable, long-term performance for the track and luminaire housings.
- Floating Canopy Power Feed: Supplies power to the track from any 120V electrical junction box located anywhere along its length; an H I-connector (sold separately) allows multiple track kits to be joined into a single continuous run.
- Adjustable Aiming: Charge LED track heads offer 350° horizontal and 90° vertical aiming to direct light exactly where it is needed.
- Electrical Rating: 120V input with 10W per head (30W total) for efficient, high-output illumination.
- Light Output: 850 delivered lumens per head (2,550 lumens total), 90+ CRI, and a 50,000-hour L70 rated life.
- 5-CCT Selectable: Color temperature is field-selectable across 2700K-3000K-3500K-4000K-5000K to match the space.
- Dimming: Smooth, continuous dimming down to 10% with a compatible ELV or TRIAC dimmer.
- Finish Options: Available in Black, Brushed Nickel, Dark Bronze, or White; order according to project finish.
Certifications & Compliance
- ETL & cETL Listed to UL #1598 for Dry Locations
- CEC Title 24 JA8-2016 Compliant
- Energy Star Rated
- ADA Compliant
Technical Specifications
- ADA Compliant: Yes
- Bulb Base: LED Module - Driver
- Bulb Shape: LED Module
- Bulbs Included: Yes
- Dimmable: ELV;TRIAC
- Energy Star: Yes
- Hardwired or Portable: Hardwired
- Lumens: 3244
- Number of Bulbs: 3
- Product Type: H Track Fixture
- Safety Rating: ETL, cETL
- Shade/Glass Description: Clear Glass Lens
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Track Lighting Kit
- Avg Rated Hours: 50000
- Beam Spread: 45
- Voltage: 120
- Material: Aluminum
- Country of Origin: Thailand
- Location Rating: Dry
- Total Wattage: 27
- Color Temperature: 2700-3000-3500-4000-5000
- Style: Modern;Transitional
- Mounting: Ceiling/Wall;Any
Typical Applications
- Residential Living, Dining, and Kitchen Lighting
- Lower-Mounted Commercial Track Lighting
- Accent and Task Lighting on a Continuous Track Run
- Retail and Display Lighting
- Dry-Location Renovation and New Construction Projects
Why WAC Lighting?
WAC Lighting builds the Charge 8010 track kit with durable aluminum construction, ETL & cETL listing to UL #1598, and CEC Title 24 JA8-2016 compliance, backed by a 5-year functional and 2-year finish warranty. With field-selectable 5-CCT color temperature, adjustable aiming, and ELV/TRIAC dimming, it delivers code-compliant, reliable performance for professional lighting installations.
Manufacturer Resources
Specification Sheet
Product Specs
- ADA Compliant:
- Yes
- Bulb Base:
- LED Module - Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Charge
- Dimmable:
- ELV;TRIAC
- Energy Star:
- Yes
- Hardwired or Portable:
- Hardwired
- Lumens:
- 3244
- Number of Bulbs:
- 3
- Product Type:
- H Track Fixture
- Safety Rating:
- ETL, cETL
- Shade/Glass Description:
- Clear Glass Lens
- Subcategory:
- Track Lighting Kit
- Avg Rated Hours:
- 50000
- Beam Spread Angle:
- 45
- Product Voltage:
- 120
- Product Material:
- Aluminum
- Location Rating:
- Dry
- Total Wattage:
- 27
- Light Temperature:
- 2700-3000-3500-4000-5000
- Product Style:
- Modern;Transitional
- Mounting Method:
- Ceiling/Wall;Any
- Department:
- Electrical
WAC Lighting H-8010/3-CS-BK – Frequently Asked Questions
1) Does the WAC Charge 8010 3-light track kit include the track and power feed, or do I have to order those separately?
The kit is complete for a single run: a 4ft H-style 3-wire track with end caps, a floating canopy power feed, and three Charge 8010 LED heads with the LED modules already in them. You wire the canopy to any 120V junction box along the track length. The only piece not in the box is an H I-connector, needed if you want to join two kits into one continuous run.
2) Can this WAC track kit be installed in a bathroom, covered porch, or garage?
Dry locations only. The Charge 8010 kit is ETL and cETL listed to UL #1598 for dry locations, so a bathroom with shower steam, a covered exterior porch, or an unconditioned damp garage is outside its rating. Interior living, dining, kitchen, and retail ceilings are what it is listed for.
3) Will this LED track kit work on my existing H-style track run?
The heads are H-style (3-wire) fittings, so they drop onto existing Halo-pattern H track. The kit itself ships with its own 4ft section, and an H I-connector joins that section to another kit for a continuous run. It is a 120V single-circuit system, so it will not work on a 277V or multi-circuit J or L pattern track.
4) What dimmer do I need for the WAC Charge 8010 track heads?
Use an ELV or TRIAC (forward phase) dimmer. With a compatible one the heads dim smoothly to 10%. Total connected load is only 27W for all three heads, so check the dimmer's minimum load, since many low-voltage ELV dimmers need more than 25W to behave. A 0-10V or DALI control will not work with these.
5) Do I have to decide on a color temperature before I order this track kit?
No. Color temperature is switch-selectable on the fixture across 2700K, 3000K, 3500K, 4000K and 5000K, so one part number covers warm residential light through to cool task light. The only choice you make at order time is finish: Black, Brushed Nickel, Dark Bronze, or White.
6) Is this track kit bright enough to replace recessed cans over a kitchen counter?
Each Charge 8010 head puts out 850 delivered lumens at 10W, with 90+ CRI and a 45 degree beam. Three heads on the run total 2,550 delivered lumens. That is accent and task level light aimed where you point it, not general ambient wash, so over a counter or island it works well; for whole-room illumination in a large space you would want more than one kit.
7) Does the WAC Charge 8010 kit meet California Title 24 for a residential remodel?
Yes, it is CEC Title 24 JA8-2016 compliant and Energy Star rated, which is what a California permit inspector looks for on residential high-efficacy luminaires. It is also ADA compliant and ETL/cETL listed.
8) Can these track heads be relamped when they burn out?
No. The Charge 8010 heads use an integral LED module driven by an onboard driver, so there is no socket and no replaceable lamp. Rated life is 50,000 hours to L70, at which point the head itself is the replacement item. For a property manager standardizing a building, that means stocking spare heads rather than lamps.
9) How far can the Charge heads be aimed once the track is up?
Each head rotates 350 degrees horizontally and tilts 90 degrees vertically, so you can wash a wall, aim down at a work surface, or point back along the run. Useful on a renovation where the junction box location is fixed and the track ends up off-center from what you are lighting.
10) Can this track be mounted on a wall instead of the ceiling?
Yes, the Charge 8010 kit mounts to ceiling or wall, and the floating canopy lets the power feed land anywhere along the track length rather than only at an end. That flexibility is what makes it workable over an existing junction box you cannot move.
11) Is this kit plug-in or does it need to be hardwired by an electrician?
Hardwired. The canopy connects to a 120V electrical junction box, so there is no cord or plug, and in commercial work that puts it under a licensed electrician. Install documentation is published as both an installation guide and a specification sheet on the product record.
