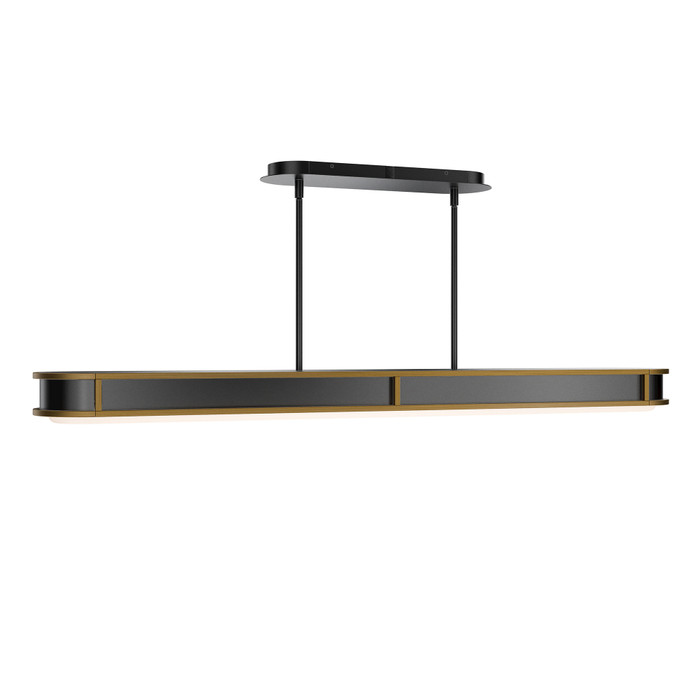

WAC Lighting PD4146 Longboard LED Linear Pendant, Aluminum
The WAC Lighting PD4146 Longboard LED Linear Pendant stretches light with a streamlined Aluminum body and a luminous Frosted Acrylic diffuser for calm, continuous glow. A concealed Universal Voltage driver (120V-220V-277V) drives a High Powered Replaceable LED rated at 37W, 3000K, CRI 90, and 3936 lumens for 50000 rated hours. Smooth 0-10V, ELV, or TRIAC dimming and sloped-ceiling compatibility make it a versatile linear pendant for damp-location interiors, and it is ETL & cETL listed with CEC, Title 24, and Title 20 compliance.
Key Features
- Extension Rods: Includes six 12in and two 6in extension rods (additional rods available separately) for flexible mounting height.
- Durable Construction: Aluminum body pairs with a Frosted Acrylic diffuser for a streamlined, long-lasting fixture.
- Universal Voltage Driver: Concealed 120V-220V-277V driver in the backplate simplifies installation across voltage conditions.
- Smooth Dimming: Compatible with 0-10V, ELV, or TRIAC dimmers for continuous, flicker-free light control.
- High Powered Replaceable LED: Delivers 3936 lumens at 37W with CRI 90, 3000K color temperature, and 50000 rated hours.
- Sloped Ceiling Compatible: Designed to install on sloped ceilings as well as standard flat ceilings.
Certifications & Compliance
- ETL Listed
- cETL Listed
- Suitable for Damp Locations
- CEC Compliant
- Title 24 Compliant
- Title 20 Compliant
Technical Specifications
- ADA Compliant: No
- Bulb Base: LED Module - Universal Driver
- Bulb Shape: LED Module
- Bulbs Included: Yes
- Dimmable: 0-10V;ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Lumens: 3936
- Product Type: Indoor Hanging Lighting
- Safety Rating: ETL;cETL
- Shade/Glass Description: Frosted Acrylic Diffuser
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Linear Pendant
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: China
- Total Wattage: 37
Typical Applications
- Kitchen Island and Dining Room Lighting
- Commercial and Hospitality Interiors
- Office and Conference Room Lighting
- Retail and Showroom Lighting Displays
- Sloped Ceiling Installations
- Indoor Damp-Location Spaces
Why WAC Lighting?
WAC Lighting builds the Longboard Linear Pendant with an Aluminum body, a Frosted Acrylic diffuser, and a High Powered Replaceable LED engine backed by ETL & cETL listing for damp locations. With CEC, Title 24, and Title 20 compliance plus a 5-Year Functional and 2-Year Finish warranty, it delivers dependable, code-compliant illumination for professional lighting installations.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- No
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Longboard
- Dimmable:
- 0-10V;ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Lumens:
- 3936
- Product Type:
- Indoor Hanging Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- Frosted Acrylic Diffuser
- Subcategory:
- Linear Pendant
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Damp
- Total Wattage:
- 37
- Light Temperature:
- 3000
- Product Style:
- Modern
- Mounting Method:
- Ceiling
- Department:
- Electrical
WAC Lighting PD414648-TWA-BK/BN – Frequently Asked Questions
1) Can the WAC Lighting PD4146 Longboard linear pendant be installed on a sloped ceiling?
Yes. The Longboard PD4146 is a ceiling-mounted linear pendant built for sloped ceilings as well as flat ones, and it ships with six 12 inch and two 6 inch extension rods so you can set the drop height. Additional rods are sold separately if you need a longer drop than the included rods allow.
2) Will the PD4146 pendant run on 277V in a commercial building?
Yes. The driver is concealed in the backplate and is universal voltage, covering 120V, 240V and 277V, so the same fixture works on residential 120V and on commercial 277V lighting circuits. It is hardwired, not plug-in, so it needs a junction box and a ceiling feed.
3) What dimmer works with the WAC Longboard LED pendant?
It accepts 0-10V, ELV, or TRIAC dimming. On a residential job a forward or reverse phase (TRIAC/ELV) wall dimmer is the usual route; on a commercial control system the 0-10V input lets it tie into a building lighting controller. A standard incandescent-only dimmer that is not TRIAC rated is the wrong choice.
4) Is the Longboard pendant safe to hang in a bathroom or covered outdoor porch?
The PD4146 carries a Damp location rating and is ETL and cETL listed, so it is suitable for a bathroom, covered porch ceiling, or similar interior damp space. It is not wet-location rated, so do not use it where it will take direct rain or spray.
5) How much light does the 37W WAC Longboard pendant actually put out over a kitchen island or conference table?
3936 lumens at 37W, with a flood beam spread through a frosted acrylic diffuser, so the output spreads across the length of the fixture rather than punching down in spots. That is enough for general lighting over an island or a conference table in most rooms, with the dimmer handling the trim down for dining.
6) Do I need to order bulbs for the WAC PD4146, and what happens when the LED fails?
No separate lamps to buy. The LED module is included and the engine is a high powered replaceable LED rather than a sealed board, so the light source can be swapped rather than replacing the whole pendant. Rated life is 50,000 hours.
7) Will the Longboard pendant's light match the other 3000K fixtures in my building?
It runs 3000K, a warm white, with CRI 90 color rendering. That pairs with other 3000K downlights and linears, so it will not read cooler or bluer next to them. The CRI 90 matters in retail, showroom, and hospitality spaces where finishes and merchandise colors have to look right.
8) Does the WAC PD4146 pendant meet California Title 24 for a permitted job?
Yes. The Longboard is CEC compliant and meets Title 24 and Title 20, so it can be specified on California permitted work. It is not Energy Star rated, if that is a separate requirement on your project. It is also not ADA compliant, which matters only where a protruding fixture is in play, not for a ceiling pendant over an island.
9) What finishes does the WAC Longboard PD4146 come in?
Two: Black with Aged Brass accent and Black with Brushed Nickel accent, both on an aluminum body with the frosted acrylic diffuser. Pick the accent to match the other metal in the room, cabinet pulls and faucets usually.
