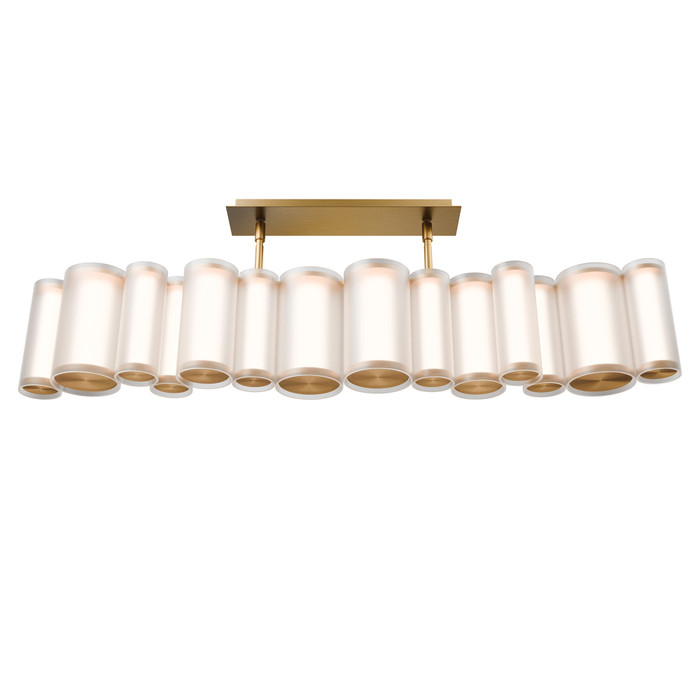

WAC Lighting PD4196 Troop 4-CCT LED Linear Pendant, Aluminum
The WAC Lighting PD4196 Troop 4-CCT LED Linear Pendant brings architectural rhythm to any interior, with multiple etched Aluminum columns descending in a glowing, linear array beneath Frosted Acrylic diffusers. Selectable 2700-3000-3500-4000K color temperature, a 90 CRI LED engine rated for 50000 hours, and 4427 lumens of output deliver flexible, high-quality illumination, while ETL and cETL Damp location listing extends this fixture to a wide range of residential and commercial spaces.
Key Features
- Extension Rods: Includes six 12in and two 6in extension rods (additional extension rods available) for sloped ceiling compatible installations.
- Durable Construction: Aluminum construction paired with Frosted Acrylic diffusers for a sculptural, glare-controlled glow.
- Universal Voltage Driver: Concealed backplate driver operates on 120V-220V-277V for flexible hardwired installation.
- Electrical Rating: 120-240-277 voltage rating at 60W total wattage.
- High-Powered LED Engine: Replaceable LED with CRI 90, Rated Hours: 50000, and selectable color temperature of 2700-3000-3500-4000K.
- Light Output: Delivers 4427 lumens for bright, consistent illumination.
- Smooth Dimming: Compatible with ELV or TRIAC dimmers for smooth, continuous, flicker-free dimming.
Certifications & Compliance
- ETL & cETL Listed for Damp Locations
- CEC and Title 24 Compliant
- Title 20 Compliant
Technical Specifications
- ADA Compliant: No
- Bulb Base: LED Module - Universal Driver
- Bulb Shape: LED Module
- Bulbs Included: Yes
- Dimmable: ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Lumens: 4427
- Product Type: Indoor Hanging Lighting
- Safety Rating: ETL;cETL
- Shade/Glass Description: Frosted Acrylic Diffuser
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Linear Pendant
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: Vietnam
- Total Wattage: 60
- Style: Modern;Transitional
Typical Applications
- Modern and Transitional Residential Interiors
- Kitchen Islands and Dining Room Feature Lighting
- Hospitality and Commercial Lounge Spaces
- Sloped Ceiling Installations
- Damp-Location Indoor Hanging Lighting
Why WAC Lighting?
WAC Lighting's Troop pendant pairs Aluminum construction with a replaceable, high-powered LED engine and a concealed Universal Voltage driver for reliable, code-compliant performance. Backed by a 5 Years Functional, 2 Years Finish warranty and ETL & cETL Damp location listing, it is built for lasting, professional-grade installations across residential and commercial projects.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- No
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Troop
- Dimmable:
- ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Lumens:
- 4427
- Product Type:
- Indoor Hanging Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- Frosted Acrylic Diffuser
- Subcategory:
- Linear Pendant
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Damp
- Total Wattage:
- 60
- Light Temperature:
- 2700-3000-3500-4000
- Product Style:
- Modern;Transitional
- Mounting Method:
- Ceiling
- Department:
- Electrical
WAC Lighting PD419638-BK – Frequently Asked Questions
1) Can the WAC Troop PD4196 linear pendant be installed on a sloped ceiling?
Yes. The Troop PD4196 ships with six 12 inch and two 6 inch extension rods, and WAC states the rod kit makes it sloped-ceiling compatible. It is a ceiling-mounted, hardwired fixture, so you need a junction box at the mounting point. Additional extension rods are available if you need more drop than the included set gives you.
2) Will the PD4196 Troop pendant run on 277V commercial power?
It will. The driver is a universal-voltage unit concealed in the backplate and is rated 120-240-277V, so the same fixture works on residential 120V and on 277V commercial branch circuits with no separate part number. Total load is 60W.
3) Can I use the Troop PD4196 over a kitchen sink or in a covered outdoor area?
The Troop PD4196 carries a Damp location rating with ETL and cETL listing, so it is suitable over a sink or in a bathroom where it may see humidity and condensation. It is not wet-rated, so do not hang it where it will take direct rain or spray, such as an uncovered patio. It is also catalogued as indoor hanging lighting.
4) What dimmer works with the WAC Troop PD4196 LED pendant?
Use an ELV (electronic low voltage) or TRIAC dimmer. Those are the two control types the Troop PD4196 driver is compatible with, and WAC rates the result as smooth, continuous and flicker-free. A 0-10V or DALI control is not a match for this driver.
5) Do I have to pick a color temperature when I order the Troop PD4196?
No. Color temperature is selectable on the fixture across 2700K, 3000K, 3500K and 4000K, so one unit covers warm residential through neutral commercial light. The only thing you choose at order time is finish: Aged Brass or Black.
6) Is 4427 lumens enough for a kitchen island or a dining table?
For a single decorative fixture that is a lot of output. The Troop puts out 4427 lumens at 60W with a flood distribution through frosted acrylic diffusers, which spreads light across an island or table top rather than punching a tight beam. At 90 CRI, color rendering is high enough for food prep and for hospitality spaces where finishes and skin tones need to read correctly.
7) Do I need to buy lamps for the Troop PD4196, and what happens when the LED fails?
Nothing to buy. The LED comes installed as an integrated module driven by the universal driver, rated for 50,000 hours. WAC describes the LED as replaceable, so the engine can be serviced rather than the whole pendant being scrapped. There is no screw-base socket in this fixture.
8) Does the Troop PD4196 meet California Title 24 and Title 20 requirements?
Yes, WAC lists the Troop PD4196 as CEC and Title 24 compliant as well as Title 20 compliant, which is what a California project inspector will look for on a hardwired residential luminaire. Note that it is not Energy Star certified and it is not ADA compliant, so it should not be specified where an ADA-compliant fixture is called out.
9) What finishes does the WAC Troop PD4196 linear pendant come in?
Two: Aged Brass and Black. Both are the same aluminum-bodied fixture with etched aluminum columns and frosted acrylic diffusers, so you can mix finishes across rooms in a building without any change in output or electrical spec. If you are standardizing a hospitality or multi-family project, pick one and the lighting performance stays identical.
10) Is there an installation guide for the WAC Troop PD4196 pendant?
Yes, WAC publishes an installation guide for the Troop pendant and it is available as a PDF download with the product. Worth pulling before rough-in since the fixture is hardwired to a ceiling box and the driver sits in the backplate, which affects the box depth and wiring you plan for.
