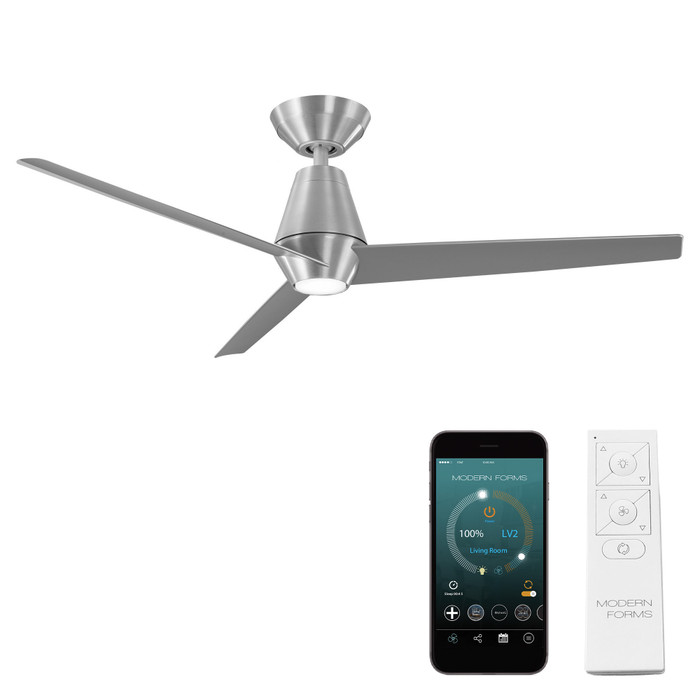

Modern Forms FR-W2003 Slim 3-Blade DC Motor Smart Ceiling Fan
The Modern Forms FR-W2003 Slim is a sleek, sculptural 3-blade ceiling fan built for minimalist and transitional modern spaces. Featuring a 52" blade span, a silent and efficient DC motor, and a Wet Location rating for indoor or outdoor use, Slim brings a streamlined, classic stainless steel-inspired look to any residential kitchen, covered patio, or trendy restaurant setting while delivering smart, app-controlled airflow.
Key Features
- Blade Design: 52" blade span with 3 ABS blades finished in Matte White and a 14-degree blade pitch for effective air movement.
- Silent DC Motor: Incredibly efficient, completely silent DC motor rated up to 70% more efficient than traditional fans, factory-balanced and sound tested to prevent wobble, rattle, or click; motor is reversible with 6 fan speeds and up to 6142 CFM airflow.
- Smart Home Control: Pairs with Google Assistant, Amazon Alexa, Samsung SmartThings, Control4, and Josh AI (Savant and Lutron Homeworks coming soon); free Modern Forms app enables speed control, Breeze Mode, adaptive learning, and grouping, plus Bluetooth compatibility for extended range.
- Remote & Wall Control: Includes a battery-operated Bluetooth remote with wall cradle (Part No. F-RCBT-WT); an optional hardwired Bluetooth wall control (Part No. F-WCBT-WT, sold separately) supports 3- or 4-way switch setups, with Android/iOS Wi-Fi wall tablet compatibility.
- Integrated LED Luminaire: Replaceable LED module powered by WAC Lighting delivers 1100 lumens with 90 CRI and smooth, continuous dimmable brightness control; available in 2700K, 3000K, or 3500K color temperature options, 33W at 120V, with an optional cover to conceal the luminaire.
- Wet Location Rated: UL, cUL, CSA, ETL, and cETL Wet Location Listed for indoor or outdoor applications; can be installed on slope ceilings up to 30 degrees (XF-SCK Slope Ceiling Kit available for 32-45 degree slopes).
- Downrod Included: Ships with a 4.5" downrod; longer downrods are sold separately for extended mounting heights.
Certifications & Compliance
- UL Listed
- cUL Listed
- CSA Certified
- ETL Listed
- cETL Listed
- Wet Location Listed for Indoor or Outdoor Use
- Energy Star Certified
Technical Specifications
- ADA Compliant: No
- Bulb Base: LED Module
- Dimmable: Yes
- Energy Star: Yes
- Lumens: 1100
- Product Type: Downrod Ceiling Fans
- Safety Rating: ETL, cETL, UL, cUL, CSA
- Warranty: 5 years LED module, 2-years for finishes, lifetime on the motor, 1 year for all other parts.
- Subcategory: Indoor or Outdoor Smart Home Ceiling Fan
- Avg Rated Hours: 50000
- CRI: 90
- Beam Spread: Flood
- Voltage: 120
- Country of Origin: China
- Location Rating: Wet
- Total Wattage: 33
- Style: Contemporary
- Blade Span: 52"
- Number of Blades: 3
- Blade Length: 22.38"
- Blade Material: ABS
- Blade Finish: Matte White
- Blade Pitch: 14 degrees
- Motor Type: DC
- Reversible Motor: Yes
- Fan Speeds: 6
- Airflow CFM: 6142
- Remote Included: Yes
- Wall Control Included: No
- Downrod Length: 4.5"
Typical Applications
- Residential Kitchens and Living Spaces
- Covered Outdoor Patios and Porches
- Restaurants and Hospitality Interiors
- Minimalist and Transitional Modern Interiors
- Smart Home Integrated Installations
Why Modern Forms?
Modern Forms builds the Slim FR-W2003 with a factory-balanced, silent DC motor, durable ABS blades, and a Wet Location rated LED luminaire backed by UL, cUL, CSA, ETL, and cETL listings for confident indoor or outdoor installation. Smart app and Bluetooth remote control, adaptive learning, and Breeze Mode combine reliable, code-compliant performance with modern convenience for professional electrical and lighting installations.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- No
- Bulb Base:
- LED Module
- Collection:
- Slim
- Dimmable:
- Yes
- Energy Star:
- Yes
- Lumens:
- 1100
- Product Type:
- Downrod Ceiling Fans
- Safety Rating:
- ETL, cETL, UL, cUL, CSA
- Subcategory:
- Indoor or Outdoor Smart Home Ceiling Fan
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread:
- Flood
- Voltage:
- 120
- Location Rating:
- Wet
- Total Wattage:
- 33
- Color Temperature:
- 3000
- Style:
- Contemporary
- Blade Span:
- 52"
- Number of Blades:
- 3
- Blade Length:
- 22.38"
- Blade Material:
- ABS
- Blade Finish:
- Matte White
- Blade Pitch:
- 14 degrees
- Motor Type:
- DC
- Reversible Motor:
- Yes
- Fan Speeds:
- 6
- Airflow CFM:
- 6142
- Remote Included:
- Yes
- Wall Control Included:
- No
- Downrod Length:
- 4.5"
Modern Forms WAC-FR-W2003 – Frequently Asked Questions
1) Can the Modern Forms Slim FR-W2003 ceiling fan be installed on a covered patio or an open porch?
The Slim FR-W2003 carries a Wet location rating, so it can go on a covered patio, an open porch, or anywhere exposed to direct rain, as well as indoors. Listings behind that rating are UL, cUL, CSA, ETL and cETL. A damp-rated fan would not be acceptable in a directly exposed location, which is the main reason to pick this one for exterior work.
2) Does the Modern Forms Slim fan come with a wall control, or just a remote?
A battery-operated Bluetooth remote with a wall cradle is included (F-RCBT-WT). A hardwired wall control is not included; if you want one, the F-WCBT-WT is sold separately and supports 3-way or 4-way switch setups. On a commercial or multi-unit job where a loose remote walks off, budget the hardwired control per fan.
3) Can I run the Slim ceiling fan off a standard wall dimmer or a 3-way switch?
Don't put a DC fan on a conventional wall dimmer. Speed and light dimming are handled by the fan's own electronics, driven by the included Bluetooth remote, the Modern Forms app, or the optional F-WCBT-WT hardwired Bluetooth wall control, which is what supports 3-way and 4-way switch locations. Supply is standard 120V.
4) What light output and color temperature does the Slim FR-W2003 LED put out?
The integrated LED luminaire delivers 1100 lumens at 90 CRI with a flood distribution, drawing 33W at 120V. Color temperature is 3000K, a neutral warm white that blends with most residential and hospitality lighting. It dims smoothly and continuously through the fan's own control, and the module is rated 50,000 hours.
5) Which smart home systems does the Modern Forms Slim fan work with?
The Slim pairs with Google Assistant, Amazon Alexa, Samsung SmartThings, Control4 and Josh AI, with Savant and Lutron Homeworks listed as coming. The free Modern Forms app handles speed, Breeze Mode, adaptive learning and grouping multiple fans, and Bluetooth extends range beyond the remote. If the spec on the job calls for a specific control platform, check it against that list before you commit the fixture schedule.
6) Is the Slim FR-W2003 Energy Star certified for a utility rebate or a green building spec?
Energy Star certified, and the DC motor is the reason: it is rated up to 70 percent more efficient than a conventional AC fan motor, with the light drawing just 33W. That combination is what sustainable distributors and institutional specifiers are usually looking for on a fan schedule.
7) Is the LED in the Modern Forms Slim fan replaceable, and can the light be hidden?
The LED module is replaceable rather than a sealed throwaway assembly, which matters for an MRO or property-management fleet where you expect to service rather than replace the fan. There is also an optional cover to conceal the luminaire if you want the fan read as a clean disc with no visible light source.
8) What finish and blade material does the Slim 52 inch fan come in?
One configuration: Matte White blades in ABS, a durable plastic that holds up better than wood in outdoor and humid locations where a wood blade would warp. Blade length is 22.38 inches each, three blades, in a contemporary profile.
9) Is the Modern Forms Slim ceiling fan ADA compliant?
No. The Slim FR-W2003 is not ADA compliant, so if your project schedule requires ADA-compliant fixtures in a given space, this is not the one to put there.
