A561 Self Closing Hinge/A561LS Spring Hinge, Less Spring Product Overview Stainless Steel Heavy Duty Self Closing Hinge Can be mounted as Full Mortise or Surface Mount - See Templates under...

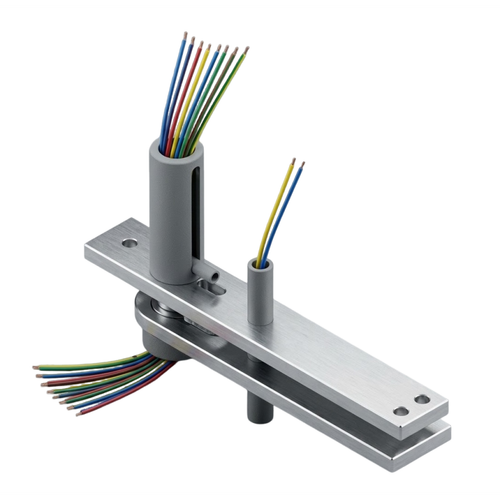

ABH CME0345 Electrified Top Pivot - Center Hung - Extra Heavy Duty Features: Conceald magnetic monitor switch and Thru Wires included For use with 0370 bottom pivot when door height is in excess of...

ABH CME0340 Electrified Top Pivot - Center Hung - Heavy Duty Features: Concealed magnetic monitor switch and Thru Wires included Walking beam top piovt for center hung bottom pivot or floor closer...

ABH E0370 Electrified Pivot Set - Center Hung - Heavy Duty - Up to 500 lbs Features: Non-Handed Pivot set is centered into the door thickness Maximum door load 500 lbs. Maximum door size - 44" x...

ABH E0128 Pivot Set - Center Hung - Up to 250 lbs Standard Features E0320 Top Pivot Provides electrical power transfer from the frame to the door (8) 30 AWG wires Frame leaf mortises into header...

ABH E0117.75 Pivot Set - Center Hung - Heavy Duty - Up to 600 lbs E0345 Top Pivot Frame leaf mortises into header Door leaf mortises into top of door E0117.75B Bottom Pivot All rest on floor...

ABH 0370 Pivot Set - Center Hung - Heavy Duty - Up to 500 lbs Features: Non-Handed Pivot set is centered into the door thickness Maximum door load 500 lbs. Maximum door size - 42" x 102" Average...

ABH 0327 Pivot Set - Center Hung - Standard Duty - Up to 135 lbs Features: Non-Handed Pivot set is centered into the door thickness Maximum door load 135 lbs. Maximum door size - 42" x 96" Average...

ABH 0128 Pivot Set - Center Hung - Standard Duty - Up to 250 lbs Features: Non-handed Pivot set is centered into the door thickness Maximum door load - 250 pounds Maximum door size - 42" x 102"...

ABH 0127 Jamb Mounted Pivot Set - Center Hung - Up to 200 lbs Features: Non-Handed Pivot set is centered into the door thickness Maximum door load 200 lbs. Maximum door size - 42" x 102" Average...

ABH 0117.75 Pivot Set - Center Hung - Up to 600 lbs Features: Heavy Duty, Center Hung Pivot Non Handed Up to 600 lbs Average weight per unit = 9 lbs Includes: 0345 Top Pivot 0117.75B Bottom...

ABH EL019U Intermediate Pivot Lead-Lined - Electrified - 3/4" Offset Features: Provieds electrical power transfer from the frame to the door Large inrush current (2) 18 AWG Wires Each wire is...

ABH EL019 Intermediate Pivot Lead-Lined - Electrified - 3/4" Offset Features: Provides electrical power transfer from the frame to the door (8) 30 AWG Wires Mortises into side jamb and hinge...

E019U Intermediate Pivot (2) 18 Ga. Wires - Electrified - 3/4" Offset Features: Provides electrical power transfer from the frame to the door Large inrush current (2) 18 AWG Wires Each wire is...

E019-1.5 Intermediate Pivot (8) 28 Ga. Wires - Electrified - 1-1/2" Offset Features: Provides electrical power transfer from the frame to the door (8) 30 AWG Wires Mortises into side jamb and...

E019 Intermediate Pivot (8) 28 Ga. Wires - Electrified - 3/4" Offset Features: Provides electrical power transfer from the frame to the door (8) 30 AWG Wires Mortises into side jamb and hinge...

ABH CME019 Intermediate Pivot - Electrified - 3/4" Offset - With Monitoring Switch & Electrified (8) 30 AWG Wire Power Transfer Features: Provides electrical power transfer from the frame to...

ABH CM019 Intermediate Pivot - Electrified - 3/4" Offset Features: Concealed door position monitor switch included Mortises into side jamb and hinge edge of door Handed - Specifiy LH or RH For use...

ABH L019 Intermediate Pivot - 3/4" Offset - For Lead-Lined Doors Features: Doors ranging from 60" tall should use one intermediate pivot. An additional intermediate pivot shuld be sued for each...

ABH 019-1.5 Intermediate Pivot - 1.5" Offset Features: Doors ranging from 60" tall should use one intermediate pivot. An additional intermediate pivot shuld be sued for each additional 30" in door...
