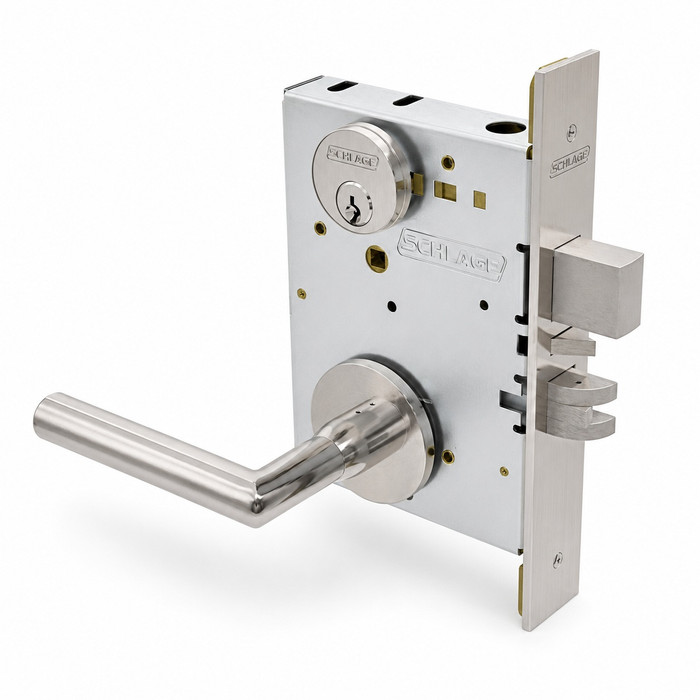

Schlage L9010- M52 - Passage Latch Mortise Set, M52 Lever

Schlage L9010- M52 - Passage Latch Mortise Set, M52 Lever

(No reviews yet) Write a Review

Model: L9010 M52A 619
From the L9000 Series Collection
Selected Finish is
Selected Rose/Escutcheon Design is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,196.00
$837.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Default Attributes
Style: Same lever, rose and finish for both sides of the door with coordinating latch and strike.
Latch: ANSI/BHMA Certified A156.13-2012, Series 1000, Grade 1 Operational,
Grade 1 Security, UL Listed for 3-hour fire door (except L9076 and L9077).
With FSIC Interchangeable Core Cylinders: Grade 1 Operational, Grade 2 Security.
With SFIC Interchangeable Core Cylinders: Grade 1 Operational, Grade 3 Security.
Case Size: 4-7/16" x 6-1/16" x 1";
Armor Front: 1-1/4" x 8";
Deadbolt: 1" Throw stainless steel;
Latchbolt: 3/4" Throw stainless steel with anti-friction tongue;
Strike: 1-1/4" x 4-7/8" Square corner, 1-3/16" lip, box;
Backset: 2-3/4";
Door Thickness: 1-3/4".



Schlage L9010 PASSAGE SET

  • Latchbolt retracted by lever/knob from either side at all times;
  • Inside lever always free for immediate egress.



Schlage L SERIES OVERVIEW

The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.

180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.



FEATURES & BENEFITS

Security

  • Exceeds ANSI/BHMA Grade 1 Security and Operational standards
  • Deadbolt functions include anti-saw pin in bolt to prevent cut-through
  • Security blocking hub prevents lock picking by removing levers



Function availability and compatibility

  • 55+ standard functions (custom functions are also available)
  • Universal lock case allows 10 functions to be created from a single lock body
  • Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency



Aesthetics

  • 14 finishes
  • 33 lever, two knob, five rose and three escutcheon designs
  • Locking lever bushing eliminates exposed screws on inside levers
  • All levers suite with Von Duprin exit devices, along with related L Series products LE, LM9200, LM9300 and LT



Options

  • Exclusive 180° visibility indicator
  • Vandlgard® free-wheeling outside trim option is available on most functions, including electrified
  • Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
  • New Gold Standard ligature resistant trim for behavioral health applications



AVAILABLE L SERIES FUNCTIONS

View the Schlage L Series catalog for descriptions of all available functions.



CERTIFICATIONS & TESTING

View the Schlage L Series catalog to see all specifications and certifications.

Certifications

  • Meets BAA (Buy American Act)
  • L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
  • UL listed for 3-hour fire door (except L9076 and L9077)
  • With interchangeable core cylinders: Grade 2 security
  • With concealed shell cylinder: A156.13 Grade 1 operational and security
  • ANSI/ASTM F476-76 Grade 40, UL listed
  • L400: tested and certified under ANSI/BHMA A156.36 Grade 1
  • California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
  • UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing
  • Electrified functions are UL19X listed for single-point locking applications
  • UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
  • Miami-Dade NOA's and Florida Building Commission Listings
  • Meet ADA requirements



DOWNLOADS & RESOURCES



Technical resources



Manufacturer Resources

Product Specs

Subcategory:
Mortise Locks
Product Group:
Mechanical Locks
Series:
L Series
Function Description:
Latchbolt retracted by knob/lever from either side at all times. Inside lever is always free for immediate egress.
Grade:
Grade 1
Duty Level:
Heavy Duty
Keyed Function:
Non-Keyed
Handle Type:
Lever
Standard Latch:
3/4" Stainless Steel Latch with Anti-Friction Tongue
Standard Strike:
10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
Mortise Case Size:
4-7/16" x 3-5/8" x 1"
Warranty:
3 Year Limited
Keyed:
No
ANSI/BHMA:
ANSI/BHMA A156.13 Grade 1
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Passage
IMAP Policy:
Yes
Product Attribute:
Mortise Locks
Electronic:
No
Tags:
l9010 06a, schlage 9010, schlage l9010 06a, l9010 schlage
Product Model:
L9010
Collection:
L9000 Series
Product Function:
Passage/Hall/Closet
Door Hand Direction:
Field Reversible
Door Thickness Range:
1-3/4" standard (optional preps available for other thicknesses)
Product Category:
Mechanical Locks
Product Substrate:
CRS with Zinc Dichromate Plating
Backset (Distance):
2-3/4"
Department:
Door Hardware

Schlage L9010 M52A 619 – Frequently Asked Questions

1) Will the Schlage L9010 passage mortise lock fit a standard 1-3/4 inch commercial door?
Yes. The L9010 is built as a 1-3/4 inch door standard, with optional preps available for other thicknesses. It uses a 2-3/4 inch backset and a mortise case measuring 4-7/16 x 3-5/8 x 1 inches, so the door needs a mortise pocket cut for that case, not a cylindrical bore. If your doors are thicker or thinner than 1-3/4, that has to be specified as an option at order time rather than adjusted in the field.
2) Do I need to specify handing when ordering a Schlage L9010 passage mortise lock?
No handing to specify. The L9010 is field reversible, so the same lock covers left and right hand openings and one part number stocks for every door in the building. That matters if you are buying for a fleet of doors and do not want to sort left from right at the loading dock.
3) Will the L9010 latch into the strike that is already in my frame?
It ships with its own strike, a 10-072 box strike measuring 1-1/4 x 4-7/8 inches, square corner, with a 1-3/16 inch lip. The latchbolt is a 3/4 inch throw stainless steel latch with an anti-friction tongue. If your frame already has an ANSI square-corner mortise strike prep of that size, the new strike drops into it; if the existing prep is a curved-lip or T-strike cutout, the frame will need to be modified or a different strike specified. The 1-3/16 inch lip is measured from the centerline of the screws, so check your frame reveal before assuming the standard lip clears the stop.
4) Is the Schlage L9010 rated for a fire door?
Yes. The L9000 mortise locks are UL listed for 3-hour fire doors, with UL/cUL listing for A label single doors up to 4 x 10 feet and pairs up to 8 x 10 feet. The letter F and the UL symbol stamped on the latch front are what an inspector looks for. The lock is also certified to ANSI/BHMA A156.13 Grade 1 for both security and operational, and levers with a return to door of 1/2 inch or less meet the California Referenced Standards Code. It meets ADA requirements and the Buy American Act.
5) Will a Schlage L9010 passage lever match the keyed L Series locks and exit devices already in my building?
It will. The L Series levers suite with Von Duprin exit devices and with the related L Series products LE, LM9200, LM9300 and LT, so a passage door and a keyed opening down the hall carry the same lever and trim look. Since the L9010 is non-keyed, there is nothing to key into your existing system, but the aesthetics line up. Pick the same rose or escutcheon design and finish code as the rest of the openings and the passage door will disappear into the set.
6) What is a good alternative to the Schlage L9010 if I need a Grade 1 passage mortise lock from another brand?
The Falcon MA101 is the closest straight equivalent: Grade 1, heavy duty, passage function, fire rated, and field reversible like the L9010. Hager's 3810S covers passage with a rose and a 2-3/4 inch backset, matching the Schlage backset, and the 3810E is the same lock with an escutcheon instead of a rose; both Hager units are listed for 1-3/4 to 2-1/2 inch doors, so they are the option when your doors run thicker than 1-3/4. For behavioral health or detention-adjacent openings, TownSteel's MRX-L-01 and MRX-A-01 are Grade 1 heavy duty passage mortise locksets with anti-ligature lever and arch trim.
7) I need to lock the door sometimes. Is the L9010 the wrong lock for me?
Yes, it is the wrong one. A passage set has no cylinder and no deadbolt, and the lever pulls the latch from both sides all the time. If the door needs to lock, look at a keyed or privacy mortise lock instead: the Cal-Royal NM8080 is a Grade 1 storeroom mortise lockset for 1-3/4 inch doors, the NM8440 is a Grade 1 privacy mortise lockset with deadbolt, and the Corbin Russwin ML2003 is a Grade 1 classroom function. Within Schlage, the L9000 family carries over 55 functions off the same lock case, so the keyed version installs into the same door prep as the L9010.
8) Which passage mortise lock should I use on a behavioral health or ligature resistant opening instead of the Schlage L9010?
The TownSteel MRX-L-01 and MRX-A-01 are both Grade 1 heavy duty passage function mortise locksets built as anti-ligature trim: the MRX-L-01 uses a stainless steel anti-ligature lever and the MRX-A-01 uses a satin stainless arch trim. Both are specified for 1-3/4 inch doors. The Schlage L9010 in the M52 lever configuration is a conventional lever trim on a 1-3/4 inch door, so on a patient room or holding area where projecting trim is not permitted, the MRX series trim is the one that fits the requirement.
9) If the opening needs to lock, what do I order instead of the Schlage L9010?
The L9010 is non-keyed passage: the latchbolt retracts from either side at all times and there is no locking. For a secured door, stay in mortise format and change function. The Accentra 8805FL is a Grade 1 storeroom mortise lock in the 8800 Series, and the Cal-Royal NM8080 is a Grade 1 storeroom mortise lockset for 1-3/4 inch doors with an interchangeable core option. For a classroom function, the Corbin Russwin ML2003 is a Grade 1 mortise classroom lockset for 1-3/4 inch doors. All three keep the mortise pocket prep while adding key control the L9010 does not have.
10) Can I use an Emtek 3102 Memphis mortise set in place of a Schlage L9010 passage mortise lock?
No. The Emtek 3102 Memphis is a dummy function mortise entrance lockset, as are the Emtek 3104 Hamilton and 3106 Manhattan. A dummy set is fixed trim with no working latch, used on an inactive leaf. The Schlage L9010 is a working passage lock: the latchbolt retracts by lever from either side at all times and the inside lever is always free for egress. If the door has to latch shut, the Emtek dummy sets are not a substitute.
11) For a bathroom or bedroom door, what do I use instead of the Schlage L9010?
A passage set has no privacy function, so a restroom or bedroom door needs a privacy lock. The Cal-Royal NM8440 is a Grade 1 privacy mortise lockset with deadbolt for 1-3/4 inch doors, and the Hager 3840S is a 3800 Series Grade 1 privacy mortise lock with a 2-3/4 inch backset covering 1-3/4 to 2 inch doors. The Hager matches the L9010 2-3/4 inch backset, which matters when the mortise pocket is already cut.
12) What do I have to choose when ordering a Schlage L9010 M52 passage set?
Two things beyond the function and lever. First the rose or escutcheon: A wrought rose, B wrought rose, L full face escutcheon, or N escutcheon. Second the finish, from eleven choices, 605 bright brass, 606 satin brass, 609 antique brass, 612 satin bronze, 613 oil rubbed bronze, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome, 630 satin stainless steel, and 643E aged bronze. The set arrives with the same M52 lever, rose and finish on both sides of the door plus the matching latch and strike, so there is no separate inside and outside trim to specify.
13) What is the difference between a passage mortise lock like the Schlage L9010 and a tubular passage set?
The mortise lock goes into a rectangular pocket cut into the door edge, 4-7/16 x 3-5/8 x 1 inch for the L9010 case, rather than through a round bore. That buys you a heavy duty Grade 1 lock body with a 3/4 inch stainless latch and anti-friction tongue, which is what holds up on a high traffic corridor or a fire rated opening. The tradeoff is preparation: a mortise pocket is a bigger cut and a door already bored for a cylindrical lock cannot take one without a new door or a wrap. On a light traffic interior door where the frame and door are already bored 2-1/8 inch, a tubular passage set is the simpler buy.
14) Does the Schlage L9010 passage lock need power or wiring?
No power, no wiring. The L9010 is a purely mechanical passage lock. The L9000 family does offer electrified versions that auto detect 12V or 24V DC with customer-selectable EL/EU and options like RX, DPS, latchbolt monitor and deadbolt monitor, and those are UL19X listed for single-point locking, but that is a different function suffix. If the opening ties into an access control system, order the electrified L9000 function rather than this one.
15) How durable is the Schlage L9010 for a high traffic corridor or a school hallway?
It is a heavy duty Grade 1 commercial lock, certified to ANSI/BHMA A156.13 Grade 1 operational and security, with a cold rolled steel lock case with zinc dichromate plating and a stainless steel latchbolt. The lever design also uses a locking lever bushing that keeps exposed screws off the inside lever, and the L9000 case includes a security blocking hub that stops picking by pulling the levers. On a passage door the security features are less the point than the operational grade, which is the cycle testing that matters for a hallway that sees thousands of pulls a week.
16) If I install L9010 passage locks now, can I upgrade some of those doors to keyed or classroom function later?
You can, without recutting the door. The L9000 uses a universal lock case that supports 10 different functions from a single body, and the whole series spans over 55 standard functions on the same mortise prep, backset and armor front. So the door prep you cut for a passage lock today accepts a keyed L9000 tomorrow, and the trim, rose or escutcheon design and finish carry across. Schlage also publishes classroom upgrade kits for the L Series for exactly that kind of conversion.
17) Is a Sargent 130KB mortise thumbturn an alternative to a Schlage L9010?
No, they are different parts. The Sargent 130KB and 130W are mortise thumbturns, standard duty trim pieces that mount to a lock case; the 130W has a round backplate. The Schlage L9010 is a complete passage mortise set, lock case plus lever and rose or escutcheon trim, with a 4-7/16 inch by 3-5/8 inch by 1 inch case and a 10-072 square corner box strike. Order a thumbturn only when you already have a lock body that accepts one.
18) What passage mortise option gives me push/pull operation instead of a lever?
The Marks USA 5PDN is a Grade 1 hospital passage mortise push/pull paddleset in the 195 Series, ligature resistant and ADA compliant, in satin stainless steel. It covers the same passage duty as the Schlage L9010 M52, which is a lever handle set in Grade 1, but replaces the lever with a paddle for hands-free operation on a patient corridor or a food service door. The L9010 M52 is the choice where a standard lever is wanted and where matching finish across doors matters, since it runs from bright brass through satin chrome and matte black.
19) I need access control on the door - what mortise lock replaces a Schlage L9010 there?
The L9010 is a mechanical, non-electronic passage set, so any credentialed opening moves to a different lock. Within Schlage Electronics, the LEMD-GRW is a Grade 1 ENGAGE Series wireless mortise lock with a 125kHz proximity reader and a 3 hour fire rating. The CO-100-MS-40-KP is a Grade 1 heavy duty standalone electronic mortise lock with a keypad reader for 1-3/4 inch doors. For RFID with a classroom function, the TownSteel FME-2000 is a Grade 1 heavy duty mortise lockset for 1-3/4 inch doors. All three take the same mortise pocket the L9010 occupies but require power or battery service the mechanical set does not.
20) What if I only need the mortise lock body and will reuse the existing trim?
The BEST 45H Series is a heavy duty mortise lock body sold as a body with field reversible operation, in the public entrance function; the 45HCA Series body is offered in an intruder function. The Schlage L9010 M52 ships as a complete set, same lever, rose and finish on both sides with coordinating latch and strike, and is field reversible as well. If the existing trim is staying on the door, a lock body alone is the shorter order; if the trim is being replaced too, the complete set keeps the finish consistent.
21) What is the difference between the Schlage L9010 and the Sargent 7925 dormitory mortise lock?
The Sargent 7925 is a 7900 Series Grade 1 heavy duty mortise lock in the corridor/dormitory function, with rose trim and a single cylinder deadbolt. The Schlage L9010 is Grade 1 heavy duty as well but is passage only, with no deadbolt and no cylinder. On a dorm room or corridor door where the occupant needs to secure the room from inside, the 7925 carries the deadbolt; on a closet or hall door that only needs to latch, the L9010 covers it.
22) Is the Codelocks CL2255 a lighter duty alternative to a Schlage L9010?
The Codelocks CL2255 is an electronic tubular mortise latch in the CL2000 Series, rated medium duty, in a brushed steel finish. The Schlage L9010 is heavy duty and Grade 1 under ANSI/BHMA A156.13, in commercial specification. On a low traffic interior door the CL2255 adds code entry the mechanical passage set does not offer; on a high traffic corridor the duty rating is the deciding difference.
