Schlage L9050 - Entrance/Offic...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,514.00
$1,059.80

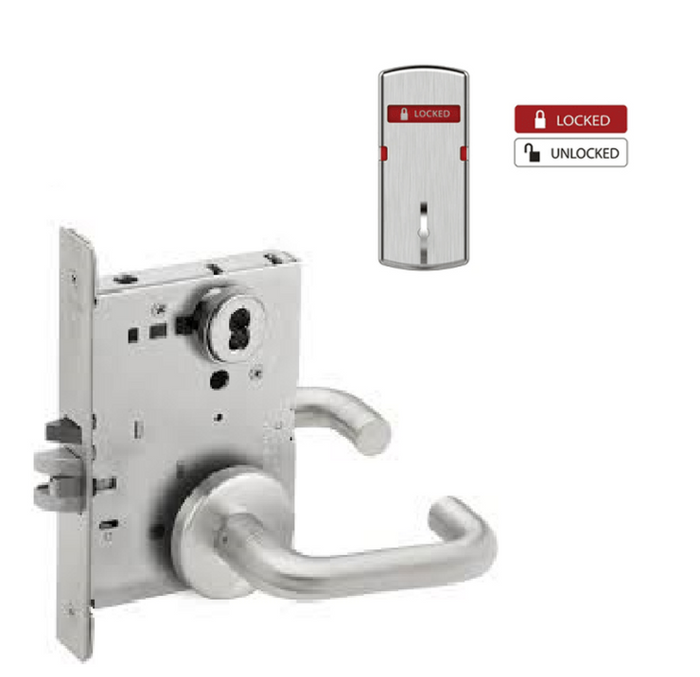

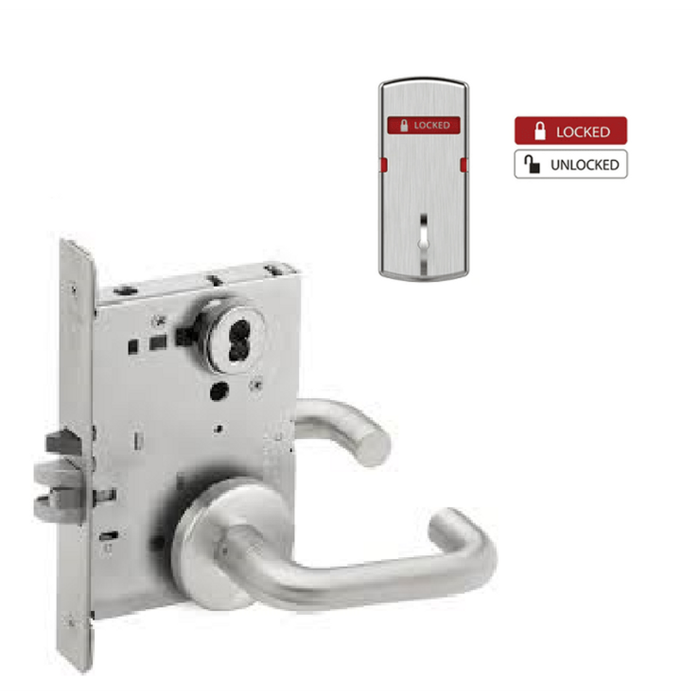

Schlage L9050 - Entrance/Office 03 Lever Mortise Lock - Grade 1 Non-Deadbolt Function Single Cylinder Keyed Lever Lock, Exterior Indicator "Locked/Unlocked"

Schlage L9050 - Entrance/Office 03 Lever Mortise Lock - Grade 1 Non-Deadbolt Function Single Cylinder Keyed Lever Lock, Exterior Indicator "Locked/Unlocked"

(No reviews yet) Write a Review

Model: L9050P 03B 626 OS-LOC
From the L9000 Series Collection
$1,514.00
$1,059.80
Selected Finish is
Selected Rose/Escutcheon is
Selected Cylinder is
Selected Keying is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,514.00
$1,059.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Default Attributes
Style: Same lever, rose and finish for both sides of the door with coordinating latch and strike.
Latch: ANSI/BHMA Certified A156.13-2012, Series 1000, Grade 1 Operational,
Grade 1 Security, UL Listed for 3-hour fire door (except L9076 and L9077).
With FSIC Interchangeable Core Cylinders: Grade 1 Operational, Grade 2 Security.
With SFIC Interchangeable Core Cylinders: Grade 1 Operational, Grade 3 Security.
Case Size: 4-7/16" x 6-1/16" x 1";
Armor Front: 1-1/4" x 8";
Strike: 1-1/4" x 4-7/8" Square corner, 1-3/16" lip, box;
Backset: 2-3/4";
Door Thickness: 1-3/4".


L9050 - ENTRANCE/OFFICE NON-DEADBOLD FUNCTION LOCK

  • Latchbolt retracted by lever/knob from either side unless outside lever is locked by key or thumbturn;
  • With outside locked, latchbolt retracted by key or inside lever;
  • Outside lever locked until unlocked by thumbturn or key;
  • Auxiliary latch deadlocks latchbolt when door is closed;
  • Inside lever always free for immediate egress.


Schlage L SERIES OVERVIEW

The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.

180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.


FEATURES & BENEFITS

Security

  • Exceeds ANSI/BHMA Grade 1 Security and Operational standards
  • Deadbolt functions include anti-saw pin in bolt to prevent cut-through
  • Security blocking hub prevents lock picking by removing levers

Function availability and compatibility

  • 55+ standard functions (custom functions are also available)
  • Universal lock case allows 10 functions to be created from a single lock body
  • Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency

Aesthetics

  • 14 finishes
  • 33 lever, two knob, five rose and three escutcheon designs
  • Locking lever bushing eliminates exposed screws on inside levers
  • All levers suite with Von Duprin exit devices, along with related L Series products LE, LM9200, LM9300 and LT

Options

  • Exclusive 180° visibility indicator
  • Vandlgard® free-wheeling outside trim option is available on most functions, including electrified
  • Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
  • New Gold Standard ligature resistant trim for behavioral health applications


AVAILABLE L SERIES FUNCTIONS

View the Schlage L Series catalog for descriptions of all available functions.


CERTIFICATIONS & TESTING

View the Schlage L Series catalog to see all specifications and certifications.

Certifications

  • Meets BAA (Buy American Act)
  • L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
  • UL listed for 3-hour fire door (except L9076 and L9077)
  • With interchangeable core cylinders: Grade 2 security
  • With concealed shell cylinder: A156.13 Grade 1 operational and security
  • ANSI/ASTM F476-76 Grade 40, UL listed
  • L400: tested and certified under ANSI/BHMA A156.36 Grade 1
  • California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
  • UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing
  • Electrified functions are UL19X listed for single-point locking applications
  • UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
  • Miami-Dade NOA's and Florida Building Commission Listings
  • Meet ADA requirements

DOWNLOADS & RESOURCES



Technical resources


Manufacturer Resources

Product Specs

Subcategory:
Mortise Locks
Product Group:
Mechanical Locks
Series:
L Series
Function Description:
Latchbolt retracted by knob/lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn. When outside is locked, latchbolt is retracted by key outside or by knob/lever inside.
Grade:
Grade 1
Duty Level:
Heavy Duty
Keyed Function:
Single Cylinder
Standard Cylinder:
Conventional 6-pin Cylinder, C Keyway
Handle Type:
Lever
Standard Strike:
10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
Mortise Case Size:
4-7/16" x 6-1/16" x 1"
Warranty:
3 Year Limited
Keyed:
Yes
ANSI/BHMA:
F04
Product Subgroup:
Mortise Locks and Trim
Product Type:
Indicator Lock
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Entrance/Office
Product Attribute:
Indicator Locks
Handle Design:
03 Lever
Lever/Knob Design:
03 Lever
IMAP Policy:
Yes
Electronic:
No
Product Model:
L9050
Collection:
L9000 Series
Product Function:
Entrance/Office
Door Hand Direction:
Handed
Door Thickness Range:
1-3/4"
Product Substrate:
CRS with Zinc Dichromate Plating
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Schlage L9050P 03B 626 OS-LOC – Frequently Asked Questions

1) Will the Schlage L9050 mortise lock fit a 1-3/4 inch door?
That's exactly what it's built for. The L9050 is specified for 1-3/4 inch door thickness with a 2-3/4 inch backset, and the mortise pocket has to take a case measuring 4-7/16 x 6-1/16 x 1 inches. If your doors are thicker or thinner, the trim you pick matters: the L cast/forged escutcheon covers 1-3/8 to 2-1/2 inch doors and the N wrought escutcheon covers 1-3/4 to 2-1/4 inch doors.
2) How does the Schlage L9050 Entrance/Office function actually work day to day?
The lever on the inside always retracts the latch, so people can always get out. Outside, the lever works until someone locks it, either with the key from outside or the thumbturn on the inside. Once it's locked, the outside gets in only with a key, while the inside lever still opens it freely. An auxiliary latch deadlocks the latchbolt when the door closes. Offices where staff want to secure the room from inside without carrying a key are the normal use.
3) Do I have to specify a hand when ordering a Schlage L9050 mortise lock?
Yes, this one is handed. Get the hand of the opening before you order: stand outside the door, and the side the hinges are on is the hand (left hand or right hand, reverse bevel if the door swings out toward you). Order the wrong hand on a handed mortise lock and the lever ends up upside down and the latch bevel faces the wrong way.
4) What cylinder do I get with the Schlage L9050, and can I use my own interchangeable core?
Standard is a conventional 6-pin cylinder in the C keyway. If your building is on cores, there are less-cylinder and core-prepped versions: B for SFIC less core, J for Schlage FSIC less core, T for Schlage FSIC with a construction core, and L for less conventional cylinder if you're supplying your own. One note that matters to spec writers: with the conventional cylinder the lock is Grade 1 operational and Grade 1 security, with FSIC cores it's Grade 1 operational and Grade 2 security, and with SFIC cores it drops to Grade 3 security.
5) Is the Schlage L9050 approved for a fire rated door?
The L9000 latch is UL Listed for 3 hour fire doors, and the L Series carries UL/cUL listing for A label single doors up to 4 by 10 feet and pairs up to 8 by 10 feet. The letter F and the UL symbol stamped on the latch front are how you confirm it on the part in your hand. It's certified to ANSI/BHMA A156.13-2012 Series 1000, Grade 1 operational and Grade 1 security, and L Series levers with a return to door of 1/2 inch or less meet the California Referenced Standards Code. The line also meets ADA requirements and the Buy American Act.
6) Will the Schlage L9050 drop into my existing strike, or do I need a new one?
It ships with the 10-072 strike, 1-1/4 by 4-7/8 inches, square corner, 1-3/16 inch lip, with a box. The armor front is 1-1/4 by 8 inches. If your frame is already prepped for an ANSI square corner mortise strike of that size you're replacing like for like; if the existing strike is radius corner or a different lip length, plan on the frame work or a strike change. Lip length is the one to measure, since it has to clear the frame stop for your jamb depth.
7) I just need an occupancy indicator on a restroom door, not a full mortise lock. What else is there?
The L9050 is a keyed entrance/office lock and its indicator reads Locked/Unlocked, so it's the wrong tool for a restroom where you want vacant/occupied privacy. For that, the Corbin Russwin CLX3320 NVSL is a Grade 1 extra heavy duty privacy lever with an indicator for 1-3/4 to 2 inch doors and it's fire rated. If it's a deadbolt-only application, the Hager 3216 is a Grade 2 thumbturn by occupancy indicator deadbolt with a 1 inch throw for 1-3/4 inch doors, and the Falcon H2171 is a Grade 2 public restroom interconnected lock with an occupancy indicator.
8) Does the Schlage L9050 have a deadbolt?
No. The L9050 is a non-deadbolt function: a single latchbolt with an auxiliary deadlocking latch, and the security comes from locking the outside lever, not from throwing a bolt. If the opening needs a deadbolt for the code official or for an after-hours lockup, this is not the function to order. Note that the anti-saw pin Schlage puts in the bolt applies to the deadbolt functions in the L Series, not to this one.
9) We already have levers on the door and only need to add an occupancy indicator. What is a simpler option than a Schlage L9050?
When the latching hardware is staying and the requirement is only a visible locked or vacant status, an indicator deadbolt does the job without replacing the lockset. The Hager 3216 is a Grade 2 thumbturn by occupancy indicator deadbolt with a 1 inch throw, fire rated, for 1-3/4 inch doors. The Cal-Royal IND90-G2 is a thumbturn by indicator deadbolt with an ADA thumbturn, and the Arrow E50 is a non-keyed exit deadlock with a vacant/occupied indicator outside for 1-3/8 inch to 1-3/4 inch doors. All three are separate bolts installed above the existing lock. The Schlage L9050 instead combines the indicator with the entrance/office latching function in one mortise case with a 2-3/4 inch backset, so it replaces the lockset rather than supplementing it.
10) What is the closest Grade 1 alternative to the Schlage L9050 indicator lock for a restroom or single-occupancy door where the lock does not need to be keyed?
The Corbin Russwin CLX3320 NVSL is a Grade 1 privacy/bedroom/bathroom visual status lever lock with an indicator, in the CLX3300 Series, and it is fire rated with a door thickness range of 1-3/4 inch to 2 inch. The Schlage L9050 differs in two ways that decide the opening: it is a mortise lock rather than cylindrical, and it is a keyed single-cylinder entrance/office function, so an outside key retracts the latchbolt when the outside lever is locked. The CLX3320 NVSL is a privacy function, so it is operated by thumbturn and has no outside key control. Pick the L9050 where staff must be able to key into a locked office and where the door is prepped for a 4-7/16 inch by 6-1/16 inch by 1 inch mortise case; pick the CLX3320 NVSL where the door is prepped cylindrical and only occupancy status matters.
11) Is a Grade 1 indicator privacy lock like the Accentra AUYPL02 a substitute for a Schlage L9050?
They share a grade but not a function or a door prep. The Accentra AUYPL02 is a YPL Series Grade 1 privacy cylindrical lock with a visual status indicator, so it locks from the inside and shows occupancy. The Schlage L9050 is a Grade 1 entrance/office mortise lock with a conventional 6-pin C keyway cylinder as standard, and the outside lever stays locked until it is released by thumbturn or key. A door bored for the AUYPL02 cylindrical prep will not accept the L9050 mortise case without new prep, and an opening that needs key access from the corridor is not served by a privacy function.
12) Our doors are 1-3/8 inch. Which indicator lock works there instead of the Schlage L9050?
The Schlage L9050 is specified for 1-3/4 inch doors. For thinner doors, the Accentra D292 Grade 2 cylindrical deadbolt with thumbturn and indicator function covers 1-3/8 inch to 1-3/4 inch, and the Arrow E50 Grade 2 exit deadlock with a vacant/occupied indicator outside covers the same 1-3/8 inch to 1-3/4 inch range. Both are deadbolts rather than latching locksets, so the door still needs a passage or entry set for latching, and neither offers the keyed entrance/office control the L9050 provides.
13) Can I get a batch of Schlage L9050 locks keyed alike for one building?
Keying is a required choice on the order. Keyed different is the default; keyed alike puts a set of locks on one key, which is the usual pick when a property manager wants one key for a floor or a suite of offices. There's also a no-keying option to pair with the less-cylinder versions when your locksmith is supplying and pinning cores. Special keyway or master keying instructions can be entered as a note with the order.
14) What does the indicator on the Schlage L9050 show, and which side is it on?
The exterior indicator reads Locked or Unlocked, so anyone in the corridor can see the state of the outside lever without touching it. Schlage uses a 180 degree visibility indicator on the L Series, meaning it stays readable from an angle down the hall rather than only head on. On an office or a classroom-style opening that is the difference between someone confirming a room is secured and someone rattling the lever to find out.
15) Should I use a mortise lock like the Schlage L9050 or a cylindrical indicator lock?
A mortise lock needs a pocket routed into the door edge, and in exchange you get a heavy duty Grade 1 lock case with a lot of function flexibility. A cylindrical lock only needs bored holes and goes into a standard 161 prep, which is why it is the cheaper retrofit on an existing door. If your doors already have a mortise pocket, or you are specifying new heavy traffic openings, the L9050 is the right family. If the doors are bored and you want an indicator, look at a cylindrical option such as the Accentra AUYPL02 YPL Series Grade 1 lock with visual status indicator instead.
16) Can I match the Schlage L9050 to the exit devices and other locks already in my building?
Yes, and that's the usual reason people specify L Series across a facility. The levers suite with Von Duprin exit devices and with the related L Series products LE, LM9200, LM9300 and LT, so a corridor of mortise locks, exit devices and multipoint openings can carry the same lever design. This one is the 03 lever. Twelve finishes are available, from 605 bright brass and 626 satin chrome through 622 matte black, 630 satin stainless and 643E aged bronze, so matching what's already hung is normally a finish code lookup.
17) What trim options do I choose between on the Schlage L9050, rose or escutcheon?
Four choices on that axis: A and B wrought roses, the L cast/forged escutcheon, and the N wrought escutcheon. The roses are the compact round trim; the escutcheons are the long plate, which is what you want if you're covering old prep marks or matching escutcheon trim elsewhere in the building. Door thickness narrows it, since the L escutcheon covers 1-3/8 to 2-1/2 inch doors and the N covers 1-3/4 to 2-1/4 inch. Both sides of the door get the same lever, rose and finish as standard.
18) Is the Schlage L9050 an electrified lock, and can it be tied into access control?
No, the L9050 is a mechanical lock with no electrified option in this configuration. The L Series does offer motor-driven electrified functions that auto-detect 12V or 24V DC with selectable EL/EU and options like RX, DPS, latchbolt monitor and deadbolt monitor, but those are separate function numbers, and electrified functions are UL19X listed for single-point locking. If the opening is going on an access control system, spec one of those rather than this one.
19) My spec sheet calls out ANSI F04. Is that the Schlage L9050?
F04 is the ANSI/BHMA function designation this lock carries, and it lines up with the Entrance/Office description: latch retracted from either side until the outside lever is locked by key or inside thumbturn, then key outside or lever inside. If your hardware schedule lists F04 mortise with a lever, the L9050 is the Schlage number that answers it.
20) What should we use instead of a Schlage L9050 on a public restroom that needs both key access and an occupancy indicator?
The Falcon H2171 is a public restroom interconnected lock with an occupancy indicator and a Grade 2 single cylinder deadbolt, in the H2 Series, with a storeroom/public restroom function. That pairing of a keyed deadbolt with a restroom-specific indicator is built for the multi-stall or single-occupancy restroom opening. The Schlage L9050 is a Grade 1 entrance/office mortise lock: the inside lever is always free for immediate egress and the outside lever is locked by key or thumbturn, which suits an office or a suite entry more than a restroom that is meant to signal occupancy to a queue. Prep also differs, since the L9050 needs a mortise pocket for a 4-7/16 inch by 6-1/16 inch by 1 inch case.
21) Which indicator locks are heavy duty enough to standardize on across a commercial facility alongside the Schlage L9050?
The Schlage L9050 is a Grade 1, heavy duty, commercial mortise lock, and among indicator products the Grade 1 peers are the Corbin Russwin CLX3320 NVSL privacy visual status lever lock and the Accentra AUYPL02 YPL Series privacy cylindrical lock. Below that tier the Accentra D292 and the Falcon D271 are Grade 2, the Falcon D271 being medium duty, and the Cal-Royal IND84 is Grade 3. For a facility writing a single Grade 1 standard, the L9050 covers the keyed entrance/office openings while the CLX3320 NVSL or AUYPL02 cover privacy openings at the same grade.
22) Can an Emtek thumbturn privacy bolt with indicator replace a Schlage L9050?
No, they solve different problems. The Emtek 8383 Wilshire, 8483 Watford, 8583 Square and 8683 Disk are thumbturn privacy bolts with double rosettes and an indicator, intended for use with a brass passage set, so the latching is handled by a separate passage set and the bolt only adds privacy with a status display. The Schlage L9050 is a single keyed lockset: a heavy duty commercial mortise case with an 03 lever, a 2-3/4 inch backset, and an entrance/office function where the latchbolt is retracted by lever from either side unless the outside is locked by key or thumbturn. An Emtek privacy bolt adds no key control and no latching function.
23) What is the Schlage L9050 lock case made of, and is it built for high traffic?
The case is cold rolled steel with zinc dichromate plating, and it's a heavy duty commercial lock, not a residential one. It's certified Grade 1 operational and Grade 1 security under ANSI/BHMA A156.13, and Schlage's security blocking hub keeps someone from picking the lock by pulling the levers off. For a school corridor, a hospital wing or a multi-family common door, that's the duty level you want.
24) What is the difference between the Cal-Royal IND90-G2 and IND84 indicator deadbolts when neither the Schlage L9050 nor a mortise prep is an option?
The Cal-Royal IND90-G2 is a Grade 1 indicator deadbolt with a thumbturn by indicator function and an ADA thumbturn, while the Cal-Royal IND84 is a Grade 3 indicator deadbolt with the same thumbturn by indicator function. The ADA thumbturn on the IND90-G2 matters where the facility is holding to accessible operation requirements. Neither is keyed, so where a corridor key override is required the Schlage L9050, a single cylinder keyed entrance/office mortise lock, is the function that answers it.
25) Does the Falcon D271 indicator deadbolt do the same job as a Schlage L9050?
The Falcon D271 is a Grade 2, medium duty D200 Series deadbolt with an occupancy indicator and a one-sided function with a thumbturn inside. It gives status and a bolt, nothing more. The Schlage L9050 is a Grade 1 heavy duty mortise lockset with an 03 lever on both sides, a conventional 6-pin C keyway cylinder as standard, and a 10-072 1-1/4 inch by 4-7/8 inch square corner box strike with a 1-3/16 inch lip. The two are specified at different duty levels and the L9050 carries the latching and key control the D271 leaves to other hardware.
