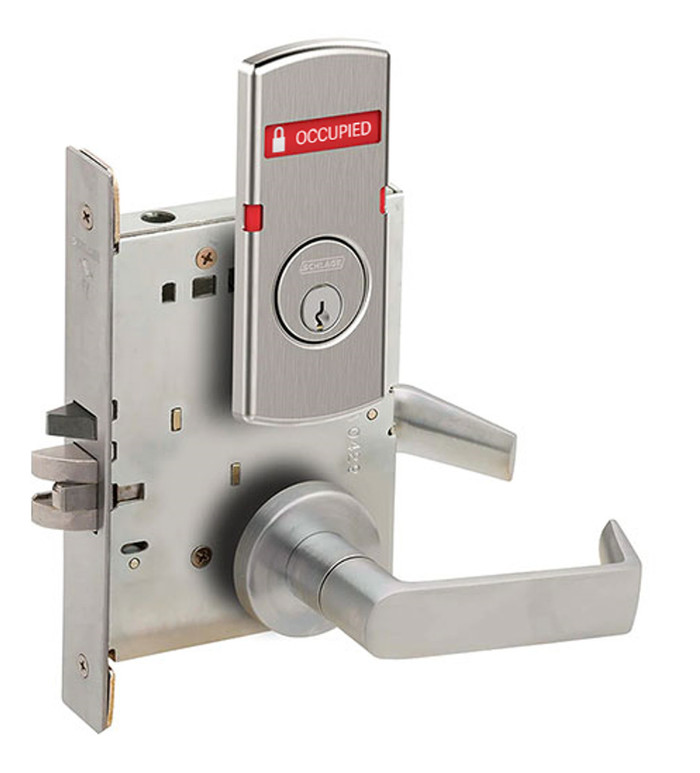

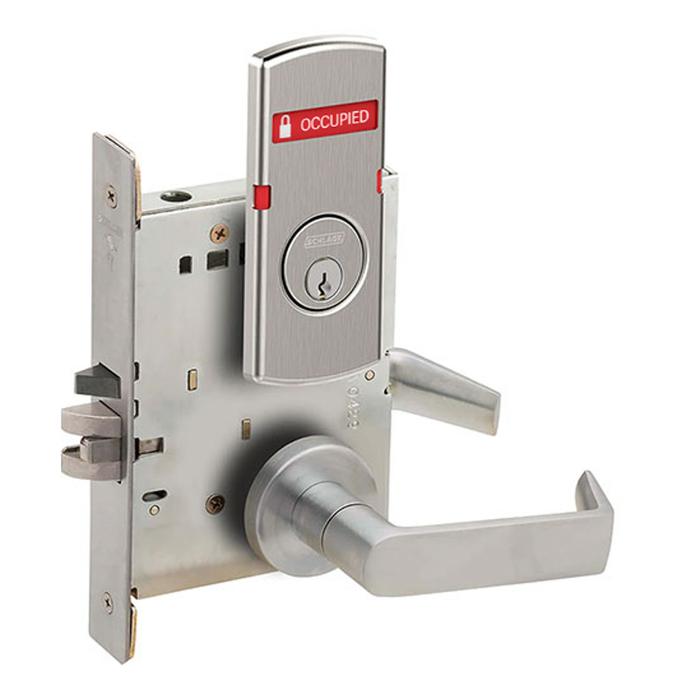

Schlage L9050 - Entrance/Offic...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,624.00
$1,219.29
Schlage L9050 - Entrance/Office 06 Lever Mortise Lock - Grade 1 Non-Deadbolt Function Single Cylinder Keyed Lever Lock, Interior Indicator LOCK/UNLOCKED, Outside OCCUPIED/VACANT Indicator

Schlage L9050 - Entrance/Office 06 Lever Mortise Lock - Grade 1 Non-Deadbolt Function Single Cylinder Keyed Lever Lock, Interior Indicator LOCK/UNLOCKED, Outside OCCUPIED/VACANT Indicator

(No reviews yet) Write a Review

Model: L9050P 06B 626 OS-OCC IS-LOC
From the L9000 Series Collection
$1,624.00
$1,219.29
Selected Finish is
Selected Rose/Escutcheon is
Selected Cylinder is
Selected Keying is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,624.00
$1,219.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Default Attributes
Style: Same lever, rose and finish for both sides of the door with coordinating latch and strike.
Latch: ANSI/BHMA Certified A156.13-2012, Series 1000, Grade 1 Operational,
Grade 1 Security, UL Listed for 3-hour fire door (except L9076 and L9077).
With FSIC Interchangeable Core Cylinders: Grade 1 Operational, Grade 2 Security.
With SFIC Interchangeable Core Cylinders: Grade 1 Operational, Grade 3 Security.
Case Size: 4-7/16" x 6-1/16" x 1";
Armor Front: 1-1/4" x 8";
Strike: 1-1/4" x 4-7/8" Square corner, 1-3/16" lip, box;
Backset: 2-3/4";
Door Thickness: 1-3/4".


L9050 - ENTRANCE/OFFICE NON-DEADBOLD FUNCTION LOCK

  • Latchbolt retracted by lever/knob from either side unless outside lever is locked by key or thumbturn;
  • With outside locked, latchbolt retracted by key or inside lever;
  • Outside lever locked until unlocked by thumbturn or key;
  • Auxiliary latch deadlocks latchbolt when door is closed;
  • Inside lever always free for immediate egress.


Schlage L SERIES OVERVIEW

The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.

180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.


FEATURES & BENEFITS

Security

  • Exceeds ANSI/BHMA Grade 1 Security and Operational standards
  • Deadbolt functions include anti-saw pin in bolt to prevent cut-through
  • Security blocking hub prevents lock picking by removing levers

Function availability and compatibility

  • 55+ standard functions (custom functions are also available)
  • Universal lock case allows 10 functions to be created from a single lock body
  • Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency

Aesthetics

  • 14 finishes
  • 33 lever, two knob, five rose and three escutcheon designs
  • Locking lever bushing eliminates exposed screws on inside levers
  • All levers suite with Von Duprin exit devices, along with related L Series products LE, LM9200, LM9300 and LT

Options

  • Exclusive 180° visibility indicator
  • Vandlgard® free-wheeling outside trim option is available on most functions, including electrified
  • Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
  • New Gold Standard ligature resistant trim for behavioral health applications


AVAILABLE L SERIES FUNCTIONS

View the Schlage L Series catalog for descriptions of all available functions.


CERTIFICATIONS & TESTING

View the Schlage L Series catalog to see all specifications and certifications.

Certifications

  • Meets BAA (Buy American Act)
  • L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
  • UL listed for 3-hour fire door (except L9076 and L9077)
  • With interchangeable core cylinders: Grade 2 security
  • With concealed shell cylinder: A156.13 Grade 1 operational and security
  • ANSI/ASTM F476-76 Grade 40, UL listed
  • L400: tested and certified under ANSI/BHMA A156.36 Grade 1
  • California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
  • UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing
  • Electrified functions are UL19X listed for single-point locking applications
  • UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
  • Miami-Dade NOA's and Florida Building Commission Listings
  • Meet ADA requirements

DOWNLOADS & RESOURCES



Technical resources


Manufacturer Resources

Product Specs

Subcategory:
Mortise Locks
Product Group:
Mechanical Locks
Series:
L Series
Function Description:
Latchbolt retracted by knob/lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn. When outside is locked, latchbolt is retracted by key outside or by knob/lever inside.
Grade:
Grade 1
Duty Level:
Heavy Duty
Keyed Function:
Single Cylinder
Standard Cylinder:
Conventional 6-pin Cylinder, C Keyway
Handle Type:
Lever
Standard Strike:
10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
Mortise Case Size:
4-7/16" x 6-1/16" x 1"
Warranty:
3 Year Limited
Keyed:
Yes
ANSI/BHMA:
F04
Product Subgroup:
Mortise Locks and Trim
Product Type:
Indicator Lock
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Entrance/Office
Product Attribute:
Indicator Locks
Handle Design:
06 Lever
Lever/Knob Design:
06 Lever
IMAP Policy:
Yes
Electronic:
No
Product Model:
L9050
Collection:
L9000 Series
Product Function:
Entrance/Office
Door Hand Direction:
Handed
Door Thickness Range:
1-3/4"
Product Substrate:
CRS with Zinc Dichromate Plating
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Schlage L9050P 06B 626 OS-OCC IS-LOC – Frequently Asked Questions

1) Will the Schlage L9050 indicator mortise lock fit a 1-3/4 inch door with a 2-3/4 inch backset?
That is exactly the prep it is built for. The L9050 mortise lock is a 2-3/4 inch backset device for 1-3/4 inch doors, with a 4-7/16 x 6-1/16 x 1 inch lock case and a 1-1/4 x 8 inch armor front. If your door is thicker or thinner, the base configuration won't drop in; Schlage offers different door thickness options on the L Series, and the rose/escutcheon choices tell you the range each trim covers (L cast/forged escutcheon covers 1-3/8 to 2-1/2 inch doors, N wrought escutcheon 1-3/4 to 2-1/4 inch).
2) How does the Entrance/Office function on the Schlage L9050 actually work day to day?
Either lever retracts the latchbolt until the outside lever is locked, and it gets locked either by key from the outside or by the inside thumbturn. Once locked, only the key outside or the inside lever will retract the latch. The inside lever is always free, so egress is never blocked. An auxiliary latch deadlocks the latchbolt when the door closes. There is no deadbolt in this function, it is latchbolt only.
3) What do the two indicators on this Schlage L9050 read, and which side shows which?
It's a two-sided 180 degree visibility indicator: the inside face reads LOCKED/UNLOCKED so the occupant can confirm the lever state, and the corridor side reads OCCUPIED/VACANT. That combination is what makes it usable on single-occupant offices, exam rooms, lactation rooms, and staff restrooms where someone outside needs to know the room is in use without trying the lever.
4) Is the Schlage L9050 ANSI Grade 1 and can it go on a fire-rated door?
The L9000 latch is certified to ANSI/BHMA A156.13-2012, Series 1000, Grade 1 Operational and Grade 1 Security, and it is UL listed for 3-hour fire doors. Security grade drops if you use interchangeable cores: Grade 2 with Schlage FSIC, Grade 3 with SFIC. UL/cUL listing covers A label single doors up to 4 by 10 feet and pairs up to 8 by 10 feet, with the letter F and UL symbol stamped on the latch front. The function corresponds to ANSI F04.
5) Do I need to specify handing when ordering a Schlage L9050 mortise lock?
Yes. The L9050 is a handed lock, so the hand of the door has to be on the order. Stand outside the door: if the hinges are on your left it is left hand or left hand reverse, on the right it is right hand or right hand reverse. Getting it wrong on a mortise lock with a keyed outside and a two-sided indicator is not something you fix in the field with a screwdriver.
6) What cylinder comes with the Schlage L9050, and can I order it to take my existing small format cores?
Four cylinder choices are offered. P gives you a conventional 6-pin cylinder in the C keyway, which is the standard build. If you key the building on small format interchangeable cores, order B (SFIC, less core, prepped for it). J takes Schlage FSIC housings less core. L ships less conventional cylinder if your locksmith is supplying it. Note that using interchangeable cores moves the security rating to Grade 2 with FSIC and Grade 3 with SFIC, while the conventional cylinder holds Grade 1.
7) Will the Schlage L9050 latch into the strike already in my frame?
The lock ships with a 10-072 strike, 1-1/4 by 4-7/8 inches, square corner, 1-3/16 inch lip, with a box. If the existing frame has that same ANSI square corner strike prep, the new strike drops straight in. Frames with a curved (radius) corner strike cutout or a different lip length will need either the matching strike option or frame work, so check the corner shape and lip projection past the frame stop before you pull the old lock.
8) I need indicator locks on several office doors keyed to one key. Can I order these keyed alike?
Yes. Keying is a required selection: KD keyed different is standard, KA keyed alike ties multiple locks to one key, or choose None with a less-cylinder option if your locksmith is keying them into an existing system. There is also a free-text field for special cylinder or keying requirements, which is where you note a master key system, keyway other than C, or a Primus requirement.
9) My doors are bored for a cylindrical lock, not mortised. What indicator lock should I use instead of the L9050?
Don't try to force this one in. The L9050 needs a mortise pocket in the door edge for a 4-7/16 by 6-1/16 by 1 inch case. For a standard cylindrical bore, look at a Grade 1 cylindrical indicator lever such as the Accentra AUYPL02 in the YPL Series (privacy function with visual status indicator) or the Corbin Russwin CLX3320 NVSL, an extra heavy duty Grade 1 privacy visual status lever that is fire rated and covers 1-3/4 to 2 inch doors. Both are privacy function rather than keyed Entrance/Office, so if you need key control from the corridor, the mortise route is the one that gives it to you.
10) What is the closest Grade 1 alternative to the Schlage L9050 indicator lock from another manufacturer?
For a Grade 1 lever lock with a visual status indicator, the Corbin Russwin CLX3320 NVSL is the nearest peer. Both are Grade 1, but the Schlage L9050 is a mortise lock with an Entrance/Office function - keyed outside lever that can be locked by key or inside thumbturn, inside lever always free - while the CLX3320 NVSL is a Privacy/Bedroom/Bathroom function in the CLX3300 cylindrical series, listed for 1-3/4 inch to 2 inch doors. Choose the L9050 where the opening needs a keyed office lock in a mortise pocket, and the CLX3320 where the door is bored cylindrical and the room is a privacy application.
11) I only need an occupancy indicator on a restroom door, not a full mortise lock. What should I use instead of the Schlage L9050?
If the door only needs occupancy status and a deadbolt, an indicator deadbolt is the simpler route. The Arrow E50 is a Grade 2 exit deadlock with a Vacant/Occupied indicator outside and is non-keyed, covering 1-3/8 inch to 1-3/4 inch doors. The Hager 3216 is a Grade 2 thumbturn by occupancy indicator deadbolt with a 1 inch throw, fire rated, for 1-3/4 inch doors. The Schlage L9050 is a Grade 1 keyed Entrance/Office mortise lock with a 06 lever and a 2-3/4 inch backset, so it takes a mortise pocket and provides latching lever operation as well as indication.
12) Should I use an indicator mortise lock like the L9050 or just add an indicator deadbolt above a passage set?
Two different approaches. The L9050 is a single heavy duty mortise lock that handles latching, key control from the outside, and both indicators in one case, so the door gets one prep and the occupant only touches one device. The alternative is a separate indicator deadbolt over a latch set: an option like the Hager 3216 thumbturn by occupancy indicator deadbolt with a 1 inch throw, or the Grade 2 Arrow E50 with a Vacant/Occupied indicator outside and no key. Deadbolt-plus-latch costs less prep in the lock case but adds a second bore, a second operation for the user, and on fire doors you have to watch the single-motion egress requirement. For a commercial office or exam room on a fire-rated opening, the one-piece mortise lock is the cleaner answer.
13) Will the 06 lever on this Schlage lock match the rest of my building and my Von Duprin exit devices?
The 06 lever is one of the L Series designs, and all L Series levers suite with Von Duprin exit devices as well as the related LE, LM9200, LM9300 and LT products, so a corridor with mortise locks, exit devices and electronic locks can carry the same lever look. Twelve finishes are offered, from 605 bright brass and 606 satin brass through 613 oil rubbed bronze, 619 satin nickel, 622 matte black, 626 satin chrome, 630 satin stainless and 643E aged bronze. Match the finish number you already have on the other openings rather than the finish name, since names vary by brand.
14) Is the Schlage L9050 ADA compliant for a public building?
The lever operation meets ADA requirements, and all L Series levers with a return to door of 1/2 inch or less comply with the California Referenced Standards Code. The lock also meets the Buy American Act, which matters on federal and many state-funded jobs, and carries Miami-Dade NOAs and Florida Building Commission listings for high-velocity hurricane zone work.
15) Is this a heavy duty lock suitable for high traffic commercial openings, and what is the case made of?
Yes, it's a commercial heavy duty mortise lock, not a residential product. The lock case is cold rolled steel with zinc dichromate plating for corrosion resistance, and the L9000 exceeds ANSI/BHMA Grade 1 security and operational standards. A security blocking hub prevents picking the lock by pulling the levers off. That combination is what puts it on school, healthcare and multi-family corridor doors that see thousands of cycles.
16) How do the Grade 2 and Grade 3 indicator deadbolts compare with the Schlage L9050 for a high traffic opening?
The Schlage L9050 is a Grade 1, heavy duty mortise lock certified to ANSI/BHMA A156.13 Series 1000 and UL listed for 3-hour fire doors. The Accentra D292 is a Grade 2 cylindrical deadbolt with thumbturn and indicator function for 1-3/8 inch to 1-3/4 inch doors, the Falcon D271 is a Grade 2 medium duty deadbolt with occupancy indicator and inside thumbturn, and the Cal-Royal IND84 is a Grade 3 indicator deadbolt with a thumbturn by indicator function. The deadbolts provide status and bolt only; the L9050 also carries the keyed lever latching function on the same door.
17) Are the Emtek thumbturn privacy bolts an alternative to the Schlage L9050?
No - they solve a different problem. The Emtek 8383 Wilshire, 8483 Watford, 8583 Square and 8683 Disk are thumbturn privacy bolts with double rosettes and an indicator, intended to be used alongside a separate brass passage set. The Schlage L9050 is a single commercial Grade 1 keyed mortise lock that handles latching, keyed locking and indication in one case, and is specified as commercial with a 06 lever.
18) I need an ADA thumbturn indicator device rather than a keyed lever lock - what is the option next to the Schlage L9050?
The Cal-Royal IND90-G2 Series is an indicator deadbolt with an ADA thumbturn and a thumbturn by indicator function. The Schlage L9050 approaches ADA differently: it uses a 06 lever, and all L Series levers with a return to door of 1/2 inch or less comply with the California Referenced Standards Code, with the series stated to meet ADA requirements. Pick the IND90-G2 where only a thumbturn-operated indicating bolt is wanted, and the L9050 where the door needs a keyed lever entrance lock.
19) Is the Schlage L9050 an electrified lock, and what if I need access control on that door later?
No, the L9050 is a mechanical lock with no electrification. If the opening needs to be tied into access control, the L Series carries motor-driven electrified functions that auto-detect 12V or 24V DC, are field-selectable fail safe or fail secure (EL/EU), and offer RX, DPS, latchbolt monitor and deadbolt monitor. Those are UL19X listed for single-point locking. Specify the electrified function up front, because the lock case and door wiring prep are different.
20) What is the difference between the A and B wrought roses and the L and N escutcheons on this mortise lock?
Trim choice is mostly aesthetics plus door thickness. A and B are wrought roses, a small round trim around the lever only. L is a cast or forged escutcheon, a full vertical plate, offered on 1-3/8 to 2-1/2 inch doors. N is a wrought escutcheon for 1-3/4 to 2-1/4 inch doors. Escutcheons cover more of the door face, which is worth considering on a retrofit where the old lock left larger holes or worn finish around the lever.
21) I want a high security keyway on this office lock. Can I get a UL437 cylinder?
Yes. A UL437 listed locking cylinder is available on the L Series by specifying a Primus 20-500 Series cylinder. Put that in the special cylinder and keying requirements field when you order so it is built with the right cylinder rather than the standard conventional 6-pin C keyway.
