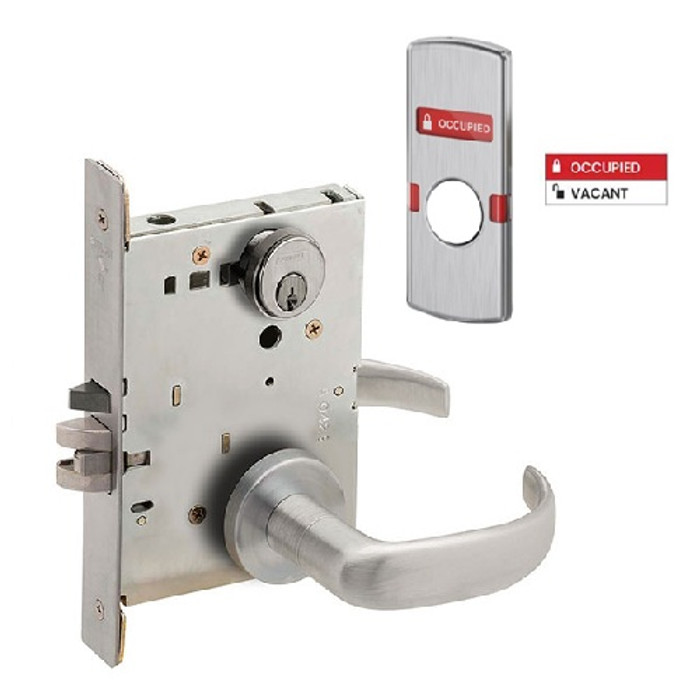

Schlage L9050 - Entrance/Office 17 Lever Mortise Lock - Grade 1 Non-Deadbolt Function Single Cylinder Keyed Lever Lock, Interior Indicator LOCK/UNLOCKED, Outside OCCUPIED/VACANT Indicator

Schlage L9050 - Entrance/Office 17 Lever Mortise Lock - Grade 1 Non-Deadbolt Function Single Cylinder Keyed Lever Lock, Interior Indicator LOCK/UNLOCKED, Outside OCCUPIED/VACANT Indicator

(No reviews yet) Write a Review

Model: L9050P 17B 626 OS-OCC IS-LOC
From the L9000 Series Collection
$1,797.00
$1,257.90
Selected Finish is
Selected Rose/Escutcheon is
Selected Cylinder is
Selected Keying is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,797.00
$1,257.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Default Attributes
Style: Same lever, rose and finish for both sides of the door with coordinating latch and strike.
Latch: ANSI/BHMA Certified A156.13-2012, Series 1000, Grade 1 Operational,
Grade 1 Security, UL Listed for 3-hour fire door (except L9076 and L9077).
With FSIC Interchangeable Core Cylinders: Grade 1 Operational, Grade 2 Security.
With SFIC Interchangeable Core Cylinders: Grade 1 Operational, Grade 3 Security.
Case Size: 4-7/16" x 6-1/16" x 1";
Armor Front: 1-1/4" x 8";
Strike: 1-1/4" x 4-7/8" Square corner, 1-3/16" lip, box;
Backset: 2-3/4";
Door Thickness: 1-3/4".


L9050 - ENTRANCE/OFFICE NON-DEADBOLD FUNCTION LOCK

  • Latchbolt retracted by lever/knob from either side unless outside lever is locked by key or thumbturn;
  • With outside locked, latchbolt retracted by key or inside lever;
  • Outside lever locked until unlocked by thumbturn or key;
  • Auxiliary latch deadlocks latchbolt when door is closed;
  • Inside lever always free for immediate egress.


Schlage L SERIES OVERVIEW

The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.

180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.


FEATURES & BENEFITS

Security

  • Exceeds ANSI/BHMA Grade 1 Security and Operational standards
  • Deadbolt functions include anti-saw pin in bolt to prevent cut-through
  • Security blocking hub prevents lock picking by removing levers

Function availability and compatibility

  • 55+ standard functions (custom functions are also available)
  • Universal lock case allows 10 functions to be created from a single lock body
  • Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency

Aesthetics

  • 14 finishes
  • 33 lever, two knob, five rose and three escutcheon designs
  • Locking lever bushing eliminates exposed screws on inside levers
  • All levers suite with Von Duprin exit devices, along with related L Series products LE, LM9200, LM9300 and LT

Options

  • Exclusive 180° visibility indicator
  • Vandlgard® free-wheeling outside trim option is available on most functions, including electrified
  • Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
  • New Gold Standard ligature resistant trim for behavioral health applications


AVAILABLE L SERIES FUNCTIONS

View the Schlage L Series catalog for descriptions of all available functions.


CERTIFICATIONS & TESTING

View the Schlage L Series catalog to see all specifications and certifications.

Certifications

  • Meets BAA (Buy American Act)
  • L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
  • UL listed for 3-hour fire door (except L9076 and L9077)
  • With interchangeable core cylinders: Grade 2 security
  • With concealed shell cylinder: A156.13 Grade 1 operational and security
  • ANSI/ASTM F476-76 Grade 40, UL listed
  • L400: tested and certified under ANSI/BHMA A156.36 Grade 1
  • California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
  • UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing
  • Electrified functions are UL19X listed for single-point locking applications
  • UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
  • Miami-Dade NOA's and Florida Building Commission Listings
  • Meet ADA requirements

DOWNLOADS & RESOURCES



Technical resources


Manufacturer Resources

Product Specs

Subcategory:
Mortise Locks
Product Group:
Mechanical Locks
Series:
L Series
Function Description:
Latchbolt retracted by knob/lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn. When outside is locked, latchbolt is retracted by key outside or by knob/lever inside.
Grade:
Grade 1
Duty Level:
Heavy Duty
Keyed Function:
Single Cylinder
Standard Cylinder:
Conventional 6-pin Cylinder, C Keyway
Handle Type:
Lever
Standard Strike:
10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
Mortise Case Size:
4-7/16" x 6-1/16" x 1"
Warranty:
3 Year Limited
Keyed:
Yes
ANSI/BHMA:
F04
Product Subgroup:
Mortise Locks and Trim
Product Type:
Indicator Lock
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Entrance/Office
Product Attribute:
Indicator Locks
Handle Design:
17 Lever
Lever/Knob Design:
17 Lever
IMAP Policy:
Yes
Electronic:
No
Product Model:
L9050
Collection:
L9000 Series
Product Function:
Entrance/Office
Door Hand Direction:
Handed
Door Thickness Range:
1-3/4"
Product Substrate:
CRS with Zinc Dichromate Plating
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Schlage L9050P 17B 626 OS-OCC IS-LOC – Frequently Asked Questions

1) Will the Schlage L9050 indicator mortise lock fit a 1-3/4 inch door?
Yes, 1-3/4 inches is exactly what the L9050 is built for. The mortise case measures 4-7/16 x 6-1/16 x 1 inches and drops into a standard 2-3/4 inch backset mortise pocket. If you are going thicker or thinner, the trim you pick decides: the L cast/forged escutcheon covers 1-3/8 to 2-1/2 inch doors and the N wrought escutcheon covers 1-3/4 to 2-1/4 inch, but the lock itself is specified at 1-3/4.
2) How does the L9050 Entrance/Office function actually work day to day?
The latchbolt retracts from either side by lever until someone locks the outside lever, either with the key outside or the inside thumbturn. Once locked, only the outside key or the inside lever pulls the latch. The inside lever is always free, so egress is never blocked, and an auxiliary latch deadlocks the latchbolt when the door closes. There is no deadbolt in this function, it is latchbolt only.
3) What do the OCCUPIED/VACANT and LOCKED/UNLOCKED indicators on the Schlage L9050 tell you?
Two separate readouts on the same lock. Outside, staff or the public see OCCUPIED or VACANT, which is what you want on a single-occupancy restroom, a lactation room, a conference room or an exam room. Inside, the occupant sees LOCKED or UNLOCKED, so they can confirm the outside lever really is secured before they rely on it. Schlage's 180 degree visibility indicator means it reads from an angle down the corridor, not just head on.
4) Do I have to specify handing when I order a Schlage L9050 mortise lock?
Yes. The L9050 is a handed lock, so you need to know left hand, right hand, left hand reverse or right hand reverse before you order. Stand outside the opening: the side the hinges are on gives you the hand, and a door that swings out toward you is the reverse version. Getting this wrong on a mortise lock is not a field fix on the trim alone, the case has to match the swing.
5) What cylinder options does the L9050 come with, and can I order it less cylinder for my own key system?
Four ways to buy it. P gives you the conventional 6-pin cylinder in Schlage C keyway, which is the standard build. L is less conventional cylinder if you are supplying your own. J is Schlage FSIC prepped less core, and B is SFIC less prep core, both for facilities already running interchangeable core. Worth knowing before you commit: the L9050 latch is ANSI/BHMA A156.13 Grade 1 operational and Grade 1 security as a conventional lock, but with FSIC cores it drops to Grade 2 security and with SFIC cores to Grade 3 security. If your spec calls for Grade 1 security, order the conventional cylinder.
6) Will the Schlage L9050 latch into the strike that is already in my frame?
It ships with a 10-072 strike, 1-1/4 x 4-7/8 inches, square corner, 1-3/16 inch lip, with a box. If your frame already has an ASA 4-7/8 inch square corner cutout, which is what most hollow metal commercial frames carry, the supplied strike drops straight in. Radius corner frames or a 2-3/4 x 1-1/8 T-strike prep will not take it without a new prep or a different strike. The armor front is 1-1/4 x 8 inches, so the door edge mortise has to match that too.
7) Can I use the Schlage L9050 on a fire rated door?
Yes. The L9000 latch is UL Listed for 3-hour fire doors, and UL/cUL listed for A label single doors up to 4 by 10 feet and pairs up to 8 by 10 feet. The letter F and the UL symbol stamped on the latch front are how the inspector confirms it. It also meets ADA requirements, and all levers with a return to door of 1/2 inch or less comply with the California Referenced Standards Code.
8) I need an occupancy indicator on a restroom but I do not need a keyed lock. Is the L9050 the right choice or should I use a deadbolt?
If nobody needs to key the door, the L9050 is more lock than the job needs. It is a keyed single cylinder mortise lock, which means a mortise pocket in the door and a key system to maintain. For a plain occupancy readout on a bored door, an indicator deadbolt is the simpler buy: the Hager 3216 is a Grade 2 thumbturn by occupancy indicator deadbolt with a 1 inch throw for 1-3/4 inch doors, the Cal-Royal IND90-G2 is a thumbturn by indicator deadbolt with an ADA thumbturn, and the Arrow E50 is a non-keyed Grade 2 exit deadlock with a VACANT/OCCUPIED indicator outside for 1-3/8 to 1-3/4 inch doors. Choose the L9050 when you want the latch, the lever and key control in one mortise case.
9) My doors are bored for a cylindrical lock, not mortised. What indicator lock can I use instead of the Schlage L9050?
The L9050 needs a mortise pocket, a 2-3/4 inch backset and a 1-1/4 by 8 inch armor front prep in the door edge. A cylindrical door will not take it without cutting the door. Two Grade 1 cylindrical indicator locks worth looking at: the Accentra AUYPL02 YPL Series privacy lever with visual status indicator, and the Corbin Russwin CLX3320 NVSL extra heavy duty privacy visual status lever, which is fire rated and covers 1-3/4 to 2 inch doors. Both are privacy function rather than keyed entrance, so if you need key control on the outside they are not a straight swap for the L9050.
10) What is the closest equivalent to the Schlage L9050 indicator lock from Corbin Russwin?
The Corbin Russwin CLX3320 NVSL is the nearest Grade 1 visual-status peer, but the two are not the same kind of lock or the same function. The L9050 is a mortise lock with a 4-7/16 inch by 6-1/16 inch by 1 inch case, Entrance/Office function, keyed with a single cylinder. The CLX3320 NVSL is a cylindrical lever lock in the CLX3300 series with a Privacy/Bed/Bath function and a 1-3/4 inch to 2 inch door thickness range. If the opening is already mortise-prepped and needs a key outside, the L9050 is the match; if the door is cylindrical-prepped and the room only needs privacy, the CLX3320 NVSL fits.
11) What indicator hardware works on a door that is not mortise-prepped?
The Schlage L9050 requires a mortise pocket and a 2-3/4 inch backset. For a door without that prep, the indicator peers are bored or surface products: the Hager 3216 is a Grade 2 thumbturn by occupancy indicator deadbolt with a 1 inch throw for 1-3/4 inch doors and is fire rated; the Accentra D292 is a Grade 2 cylindrical deadbolt with thumbturn and indicator for 1-3/8 inch to 1-3/4 inch doors; the Arrow E50 is a Grade 2 non-keyed exit deadlock with a Vacant/Occupied indicator outside for the same 1-3/8 inch to 1-3/4 inch range. Those add status to an existing passage set rather than replacing the latching hardware.
12) For a public restroom that needs an occupancy indicator and a key, what is the alternative to the Schlage L9050?
The Falcon H2171 is a Grade 2 public restroom interconnected lock with an occupancy indicator and a single cylinder deadbolt, in the H2 series - it is purpose-built for the storeroom/public restroom function. The Schlage L9050 is a Grade 1 mortise lock whose function is Entrance/Office: the latchbolt is retracted by lever from either side unless the outside lever is locked by key or thumbturn, and the inside lever is always free for immediate egress. Choose by function - a restroom that must stay latched and keyed from outside points to the H2171, while an office that staff lock behind them points to the L9050.
13) Which indicator products are fire rated for a labeled opening?
Of the indicator peers, the Hager 3216 thumbturn by occupancy indicator deadbolt and the Corbin Russwin CLX3320 NVSL both carry a fire rating. The Schlage L9050 is UL listed for 3-hour fire door and UL/cUL listed for A label single doors 4 feet by 10 feet and pairs 8 feet by 10 feet, with the letter F and UL symbol on the latch front indicating the listing. For an institutional buyer standardizing on labeled doors, that listing is the deciding line between these and the non-rated indicator bolts.
14) Can I key a set of Schlage L9050 locks alike so one key runs the whole floor?
Yes. Keyed alike is an ordering choice on the L9050, alongside keyed different, which is the standard. The conventional build ships 6-pin in the Schlage C keyway. If you are keying into an existing master system, order it less cylinder or with FSIC or SFIC prep and drop your own cylinders in. Note the lock is single cylinder, so only the outside is keyed, the inside is a thumbturn.
15) Will the Schlage 17 lever match the other Schlage hardware already in my building?
The 17 lever is one of Schlage's standard L Series designs, and all L Series levers suite with Von Duprin exit devices and the related L Series products LE, LM9200, LM9300 and LT. So a corridor running Von Duprin devices and L Series mortise locks keeps one lever look throughout. Twelve finishes are offered, from 605 bright brass and 606 satin brass through 613 oil rubbed bronze, 619 satin nickel, 622 matte black, 626 satin chrome, 630 satin stainless and 643E aged bronze. 626 is the usual commercial default, so match to whatever is on your existing doors.
16) Is the Schlage L9050 heavy duty enough for a high traffic public restroom or school corridor?
It is a Grade 1 heavy duty commercial mortise lock, ANSI/BHMA A156.13-2012 Series 1000, Grade 1 operational and Grade 1 security, and the description states it exceeds those standards. The case is cold rolled steel with zinc dichromate plating. A security blocking hub stops picking by pulling the levers off. It also meets the Buy American Act, which matters on federal and many state funded jobs.
17) What is the ANSI function code for the Schlage L9050 and does it match what my architect specified?
F04 is the ANSI/BHMA function code for the L9050, the entrance/office function. If the hardware schedule calls out F04 entrance or office, this is the mortise equivalent. Do not confuse it with a storeroom or classroom function: on F04 the outside lever can be left unlocked by the occupant, which is why it pairs with the OCCUPIED/VACANT indicator rather than a permanently secured outside lever.
18) Do I need to specify the rose or escutcheon separately on the Schlage L9050?
Yes, it is part of the order. Four trim choices: A wrought rose, B wrought rose, L cast or forged escutcheon, and N wrought escutcheon. The escutcheons carry door thickness limits, L for 1-3/8 to 2-1/2 inch doors and N for 1-3/4 to 2-1/4 inch. Standard build gives you the same lever, rose and finish on both sides with a coordinating latch and strike, so you are not ordering the two faces separately.
19) Can I get the Schlage L9050 indicator lock with an electric strike or electrified trim?
Not as this lock. The L9050 indicator build is a mechanical, non-electronic lock. The L Series does offer electrified functions with 12V/24V DC auto detect, field selectable EL or EU, and RX, DPS, latchbolt monitor and deadbolt monitor options, and those are UL19X listed for single point locking, but they are separate L9000 functions rather than an option you add to this one. If you need access control on the opening, spec an electrified L Series function instead.
20) I am specifying a public restroom that needs both an occupancy indicator and a keyed outside. Is the L9050 the only option?
The L9050 covers it in a mortise case: keyed single cylinder outside, indicator both faces, latch and lever, Grade 1. If the door is bored rather than mortised, the Falcon H2171 is a Grade 2 public restroom interconnected lock with occupancy indicator and a single cylinder deadbolt, which handles the same situation on a cylindrical prep. The trade is grade and prep, not function.
21) Is the Accentra AUYPL02 a substitute for a Schlage L9050 indicator mortise lock?
They both carry Grade 1 and both show status, but they solve different openings. The Accentra AUYPL02 is a YPL series cylindrical privacy lock with a visual status indicator - no key. The Schlage L9050 is a mortise Entrance/Office lock, single cylinder keyed, with a conventional 6-pin C keyway cylinder as standard. A restroom or single-occupant room that never needs key override can take the AUYPL02; an office door where staff must lock the outside lever and management must key in needs the L9050.
22) Which indicator deadbolts come in Grade 2 and Grade 3 for lower-traffic doors?
Among the indicator peers, the Cal-Royal IND84 is a Grade 3 indicator deadbolt with a thumbturn by indicator function, and the Falcon D271 is a Grade 2 medium duty deadbolt with an occupancy indicator and a one-sided function. The Cal-Royal IND90-G2 series indicator deadbolt with ADA thumbturn is Grade 1. All three are deadbolts rather than latching locksets - the Schlage L9050 is a Grade 1 heavy duty Entrance/Office mortise lock that handles both latching and locking in one case.
23) Can an Emtek thumbturn privacy bolt with indicator replace a commercial indicator lock?
The Emtek 8383 Wilshire, 8483 Watford, 8583 Square, and 8683 Disk are thumbturn privacy bolts with double rosettes and an indicator, intended to be used with a brass passage set - a decorative privacy function, not a keyed lockset. The Schlage L9050 is a commercial heavy duty Grade 1 mortise lock, keyed single cylinder. On a residential or hospitality interior door where the passage set already handles latching and only a privacy bolt with status is wanted, the Emtek bolts fit; a commercial office opening that must be keyed does not substitute this way.
24) Which indicator lock takes an interchangeable core?
The Schlage L9050 is ordered with a cylinder option: conventional 6-pin C keyway, Schlage FSIC less core, SFIC less prep core, or less conventional cylinder, so a facility already keyed on small format or full size interchangeable cores can match its existing system. With FSIC cores the rating is Grade 1 operational and Grade 2 security; with SFIC cores it is Grade 1 operational and Grade 3 security. The keyed peer in the comparable set, the Falcon H2171 public restroom interconnected lock, is a Grade 2 single cylinder deadbolt design, and the remaining indicator peers such as the Arrow E50 are non-keyed.
25) I need an ADA-compliant indicator option - what are the choices?
The Cal-Royal IND90-G2 series is a Grade 1 indicator deadbolt with an ADA thumbturn. The Schlage L9050 meets ADA requirements, and under the California Referenced Standards Code all levers with a return to door of 1/2 inch or less comply; it is offered with the 17 lever design. One is a deadbolt added to a door, the other is the lockset itself, so the choice follows what the opening already has.
26) Can I upgrade the Schlage L9050 cylinder to a high security key system?
Yes. A UL437 listed locking cylinder is an option on the L Series, specified as a Primus 20-500 Series cylinder. That is the route if you need patented key control and drill and pick resistance on a restroom or office suite. Order the lock less conventional cylinder if you are supplying the Primus separately.
