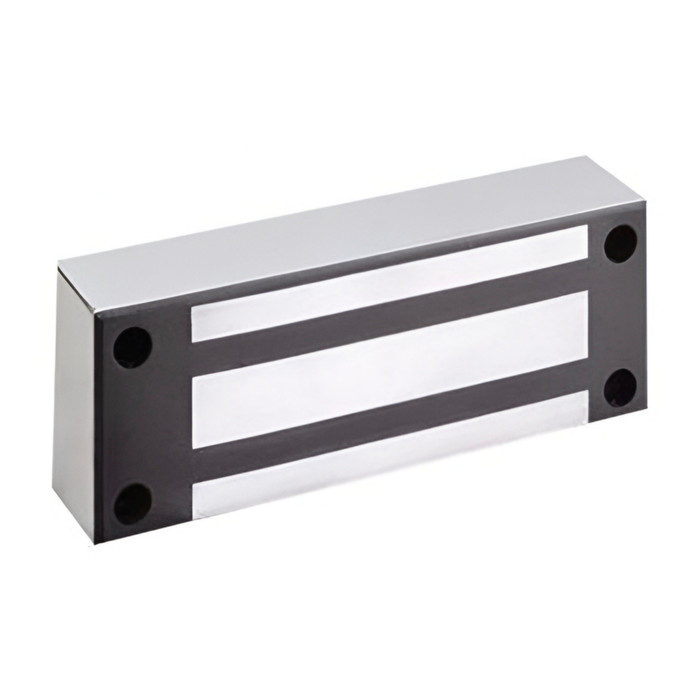

SECURITRON M82 DIRECT MOUNTED DURABLE MAGNALOCK
Industrial strength hold for challenging indoor/outdoor environments. The Securitron M82 electromagnetic lock offers unsurpassed magnetic holding strength, durability and ease of maintenance for interior, perimeter and exterior access control applications in high-risk environments. With unsurpassed durability, the Securitron M82 will last long after most buildings wear out. Flexible mounting options are available for higher security locations and other environments where extreme forces may be encountered.
1800 lbs. holding force Magnalock with automatic dual voltage and magnetic bond sensing function standard. Preferred by prisons and detention facilities, and also functions best on large, high security gates.
FEATURES & BENEFITS
Product Features
- Patented instant release circuit - no residual magnetism
- Surface mounts easily with minimal tools
- Fully sealed electronics - tamper proof and weatherproof
- Mounted using steel machine screws into blind finishing nuts
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specification
- Hardware accessories available to configure any opening type include mounting brackets, housings and dress covers
- Ten feet [3.05m] of jacketed, stranded conductor
- Automatic dual voltage - no field adjustment required
- BondSTAT magnetic bond sensor standard
- Integrated door position switch, conduit and face mount models available
- Universal threaded conduit fitting is 1/2" female - 3/4" male
- UL Listed
- MagnaCare® lifetime replacement, no fault warranty
SPECIFICATIONS
Specification Data
- Holding Force: 1800 lbs. [816 kg]
- Current Draw and Voltage: 350mA at 12VDC; 200mA at 24VDC
- Operating Temperature: -40 to +140F [-40 to +60C]
- Shipping Weight: 16 lbs.
Models
| Part # | Description |
| M82B | M82 Magnalock- 12/24VDC, MBS |
| M82BD | M82 Magnalock- 12/24VDC, MBS, DPS |
| M82B-SS | M82 Magnalock- 12/24VDC, MBS w/ Split Strike |
| M82FB | M82 Magnalock- 12/24VDC, Face Drilled, MBS |
| M82FBD | M82 Magnalock- 12/24VDC, Face Drilled, MBS, DPS |
| M82FGB | M82 Magnalock- 12/24VDC, Face Drilled, Gate Conduit, MBS |
| M82FGBD | M82 Magnalock- 12/24VDC, Face Drilled, Gate Conduit, MBS, DPS |
| M82GB | M82 Magnalock- 12/24VDC, Gate Conduit, MBS |
| M82GBD | M82 Magnalock- 12/24VDC, Gate Conduit, MBS, DPS |
CERTIFICATIONS & LISTINGS
- UL 10C Listed
- UL/cUL
- CAN4-S104, CAN/ULC-S533 Listed
- ANSI/UL 294 Listed
- ANSI/BHMA A156.23, Grade 1;E08501-1500
- CSFM- California State Fire Marshal Approved
- CE:EN 50081-1(92), EN 61000-6-2(99)Approved
DOWNLOADS & RESOURCES
Manufacturer Resources
Product Specs
- Series:
- M82 Series
- Subcategory:
- Durable Magnalocks
- Product Group:
- Electronic Access Controls
- Grade:
- Grade 1
- Holding Force:
- 1800
- Warranty:
- Lifetime Replacement
- Product Subgroup:
- Electromagnetic Locks
- Product Type:
- Surface Mounted
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Duty Level:
- Heavy Duty
- Product Model:
- SEC-M82
- Product Voltage:
- 12/24VDC
- Fire Rating:
- Yes
- Product Height:
- 3"
- Product Category:
- Electronic Access Controls
- Product Width:
- 1-3/4"
- Department:
- Door Hardware
- Product Depth:
- 1/2"
Securitron M82B – Frequently Asked Questions
1) How much holding force does the Securitron M82 Magnalock have, and what is it meant for?
1800 lbs [816 kg] of holding force. That puts the M82 at the top of the Magnalock range, and it's the reason it turns up on prison and detention openings and on large high-security gates rather than on an ordinary office interior door. It's a surface mounted electromagnetic lock, heavy duty and Grade 1, built for interior, perimeter and exterior access control. If you're securing a standard interior door in a low-risk building, this is more lock than the opening needs.
2) Do I need to set the M82 maglock for 12V or 24V when I wire it?
No field adjustment. The M82 is automatic dual voltage, so it senses and runs on either 12VDC or 24VDC as wired. Current draw is 350mA at 12VDC and 200mA at 24VDC, which is the number to size your power supply and battery backup against. Ten feet [3.05m] of jacketed stranded conductor comes attached to the lock.
3) What is the difference between the M82B and M82BD Magnalock models?
Both carry the BondSTAT magnetic bond sensor as standard, which reports whether the magnet is actually holding the armature rather than just whether it's powered. The BD adds an integrated door position switch, so the head end also sees whether the door is closed. If your access control panel wants both a bond signal and a separate door status point, order the BD. If the opening already has a DPS in the frame, the B is enough.
4) Which M82 model do I order for an exterior gate?
The gate conduit versions: M82GB, M82GBD, M82FGB and M82FGBD. Those bring the wiring out through a universal threaded conduit fitting of 1/2 inch female to 3/4 inch male, so you can run the leads in rigid conduit instead of leaving them exposed on a gate post. The M82 itself is built for outdoor duty, with fully sealed tamper proof and weatherproof electronics, all ferrous surfaces plated to MIL specification, and an operating range of -40 to +140F [-40 to +60C]. Add the D suffix if you also want the integrated door position switch.
5) Which strike plate option should I order with the M82 maglock?
Four choices, and the door decides. Standard Strike is the default for a normal door and frame. OS (Offset Strike) is for openings where the armature can't sit directly opposite the magnet and has to be shifted. SASM (Shock Absorbing Strike Mount) is the one for gates and doors that get slammed or that flex, since it takes the impact out of the armature mounting. SS (Split Strike) breaks the armature into segments so it can follow a door that isn't perfectly flat or square. Every one of the nine M82 models pairs with all four strike options.
6) Is the Securitron M82 Magnalock approved for a fire rated door?
Yes, it's fire rated and UL 10C Listed, with UL/cUL and CAN4-S104, CAN/ULC-S533 listings for the Canadian side. It's also ANSI/UL 294 Listed for access control, ANSI/BHMA A156.23 Grade 1 (E08501-1500), California State Fire Marshal approved, and CE approved to EN 50081-1(92) and EN 61000-6-2(99). That listing set is what an institutional or MRO spec usually asks for on a fire door or an egress opening.
7) Will the M82 magnet stay stuck to the door after I cut power?
No. The M82 uses a patented instant release circuit with no residual magnetism, so the armature lets go the moment power drops rather than clinging on. That matters on an egress opening, where a fire alarm or a push-to-exit has to actually free the door, and it matters on a gate where a residual pull leaves the operator fighting the magnet.
8) What does face drilled mean on the Securitron M82FB, and when do I need it?
Face drilled means the lock body is prepped to be fastened through its face rather than only through the standard concealed mounting. Standard M82 mounting uses steel machine screws driven into blind finishing nuts. Face drilled models (M82FB, M82FBD, M82FGB, M82FGBD) are the ones to pick where the header or bracket won't allow the blind-nut method, which is common on gates and on brackets in higher-security or high-force locations. Both approaches surface mount with minimal tools.
9) What does the BondSTAT sensor on the M82 tell me that a door contact doesn't?
A door contact only says the door is closed. BondSTAT senses the magnetic bond itself, so it reports whether the magnet is genuinely holding the armature, not just whether the leaf is in the frame and the lock is energized. On a detention or high-security opening that's the difference between knowing a door is secure and assuming it. It's standard on every M82 model. If you want closed-status reporting as well, order one of the D models with the integrated door position switch.
10) Do I need brackets to mount a Securitron M82 maglock on an inswing door or a glass door?
Often, yes. The M82 body mounts direct to the frame header on a standard outswing application, but Securitron publishes a hardware accessory line of mounting brackets, housings and dress covers to configure other opening types. An inswing door needs a Z bracket or an L bracket set, and a full glass or narrow stile door needs a bracket sized to the rail. Order those alongside the lock, since only the lock body and its strike come in the box.
11) Is the Securitron M82 a good choice for a standard office or apartment door?
Usually it's overkill. At 1800 lbs of holding force this is the heavy duty end of the Magnalock range, aimed at high-risk environments, perimeter and exterior openings, detention facilities and large gates. A normal interior office or apartment corridor door is served by a lower holding force maglock, or by an electric strike or electrified lockset if you want the door to keep mechanical latching. Where the M82 earns its place is an opening that gets attacked, gets slammed, or lives outdoors, and where you need the bond confirmed rather than assumed.
12) Can the M82 maglock handle an unheated warehouse or a Northern exterior gate?
Rated -40 to +140F [-40 to +60C], with fully sealed electronics that are tamper proof and weatherproof and all ferrous surfaces plated to MIL specification. That covers an unheated warehouse, a parking structure, or a gate in a cold climate. For a gate specifically, take one of the gate conduit models so the leads run in conduit rather than sitting exposed.
13) What finish does the Securitron M82 come in?
One finish: architectural brushed stainless steel, US32D/630. If you're standardizing hardware across a facility, that's the same satin stainless family as most commercial lever trim and push bars, so it matches without a special order. All ferrous metal surfaces underneath are plated to MIL specification, which is what keeps it from streaking on an exterior or perimeter opening.
14) How much clearance do I need above the door for a Securitron M82 Magnalock?
The M82 body measures 1-3/4 x 3 x 1/2 inches as catalogued (width, height, depth), so plan the header space around those figures plus whatever bracket or housing your opening needs. Shipping weight is 16 lbs, which is worth knowing before one person tries to hold it up on a ladder while starting the screws. It surface mounts with minimal tools, no mortising of the frame.
